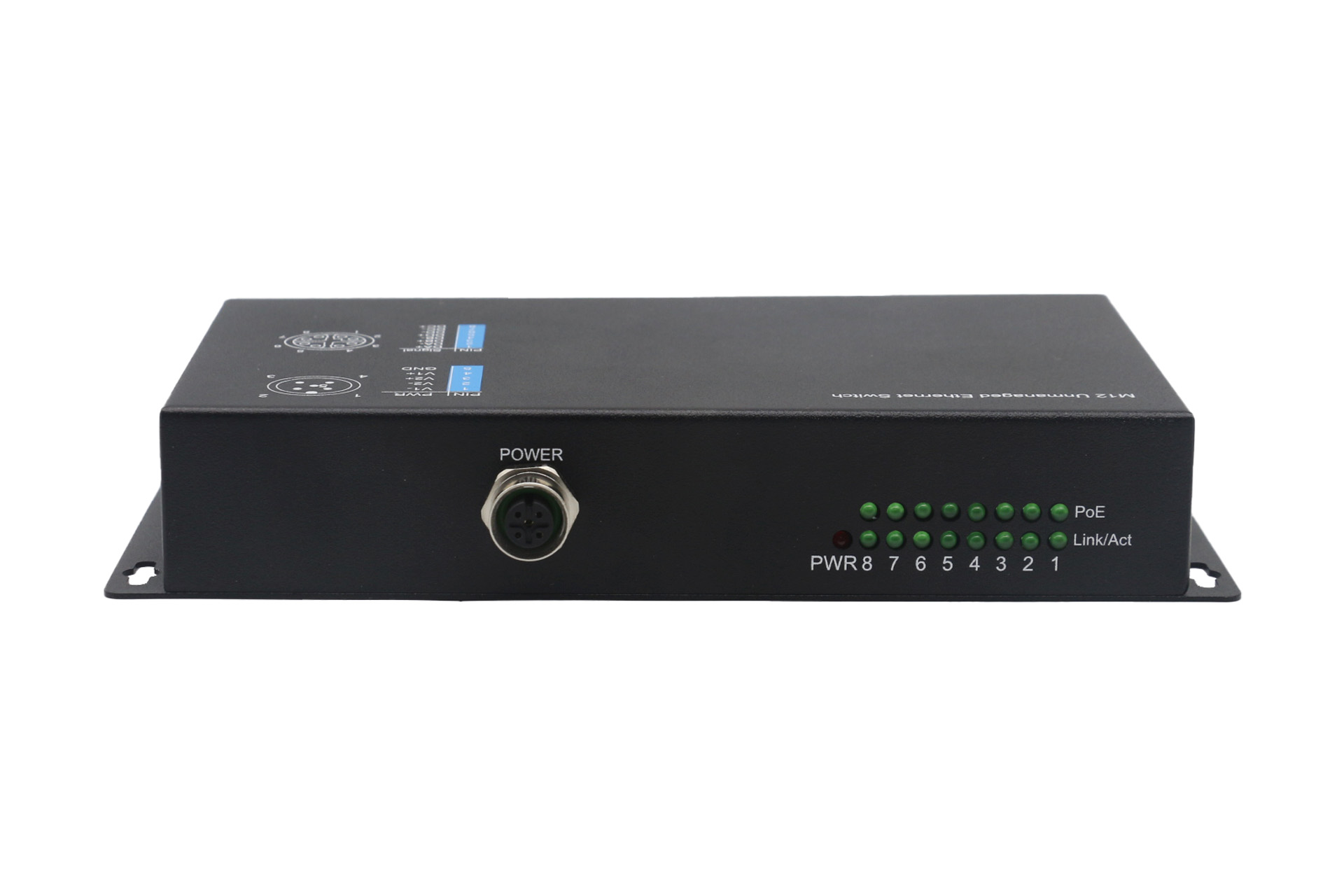

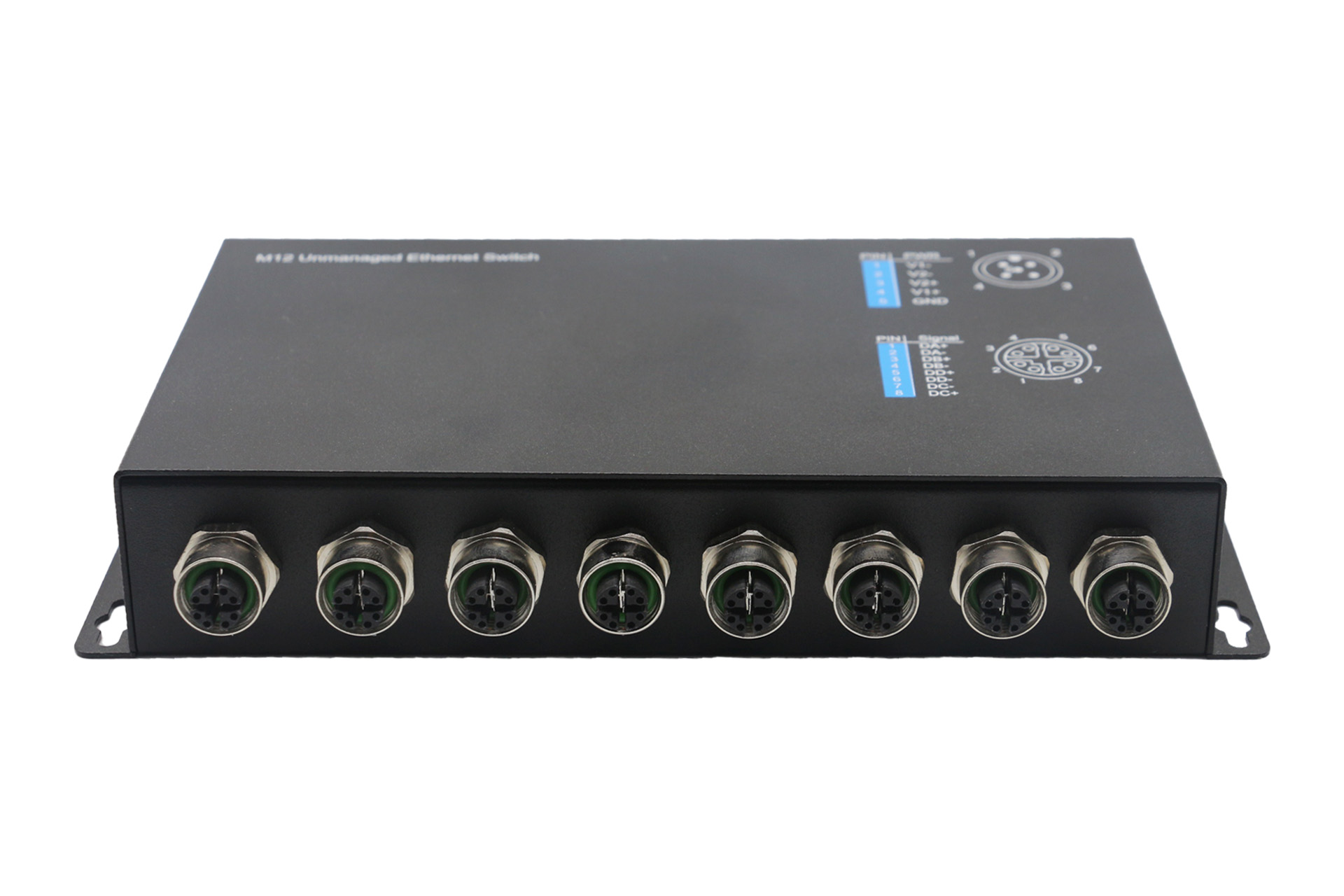

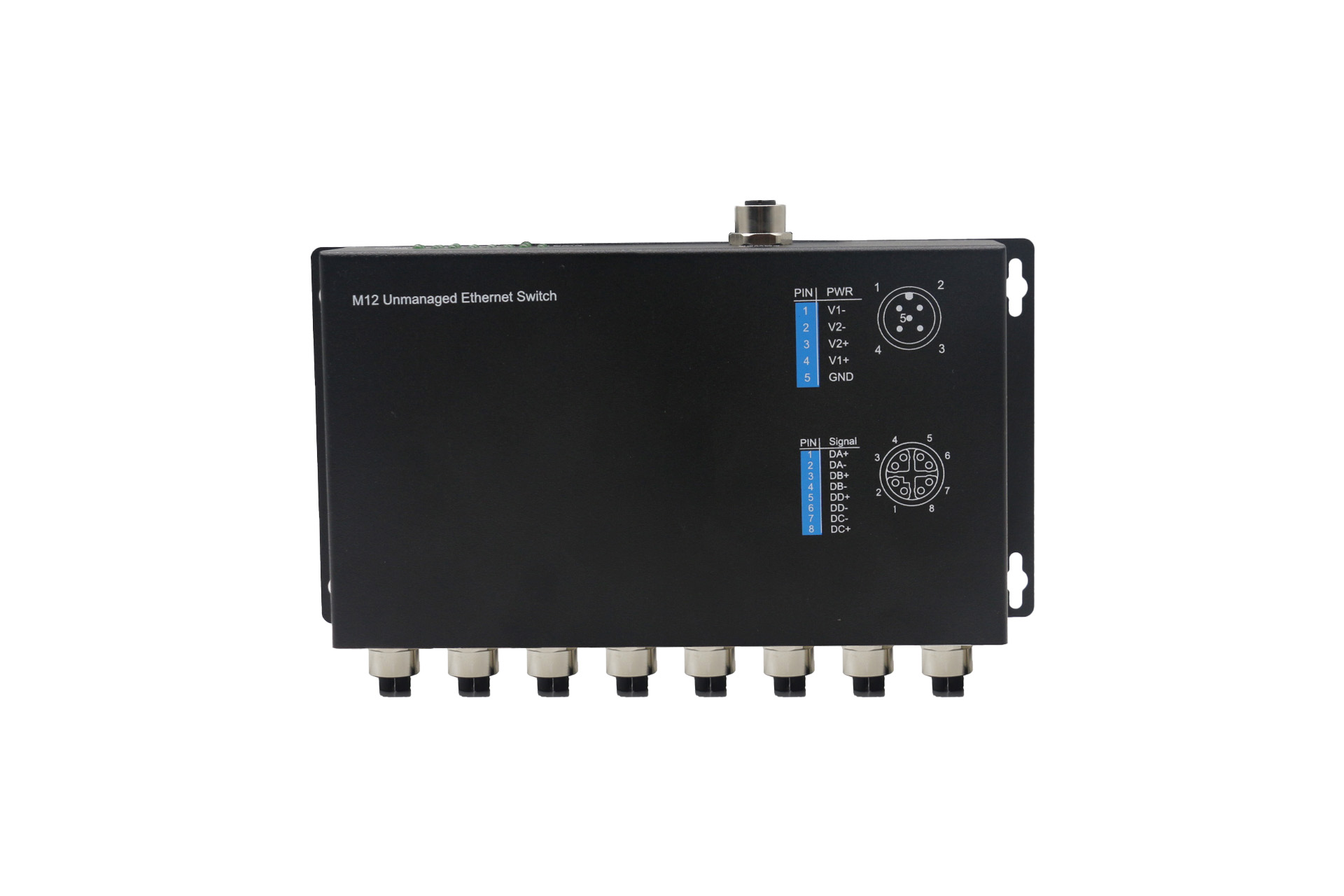

8-Port Industrial Switch, Gigabit(Vehicle-mounted)

KWL08G-M12-CZ

Metal casing rugged unmanaged Industrial Switch,

8-Port M12 X-coded 10/100/1000Mbps (8-pin),

Power supply: DC12~52V (M12 A-coded 5-pin),

Temperatura de trabajo: - 40 ℃ - 75 ℃,

PoE optional: 8 port PoE (DC48-57V)

Product Description

The KWL-M12 series unmanaged Ethernet switch is designed specifically for industrial applications, using M12 connectors to ensure a tight and robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock. This series of Ethernet switches offers 5/8 M12 Ethernet ports with a wide operating temperature of -40 ¿Grados Celsius a 75 grados celsius, ¿ qué suministros a los usuarios una solución segura y relevante?

Product Properties

l Plug and play

l Metal shell with IP40 protection

L operación temporal: - 40 ° C a 75 ° C

l Support full duplex and half duplex mode, auto-MDI / MDI-X

l Dual power Supply: DC 12-57V redundant power input

l Two types of cable connected options are available

l PoE models provide Ethernet M12 ports with 4/8 IEEE 802.3at/af PoE ports. It provides up to 30 watts of power per port, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.
