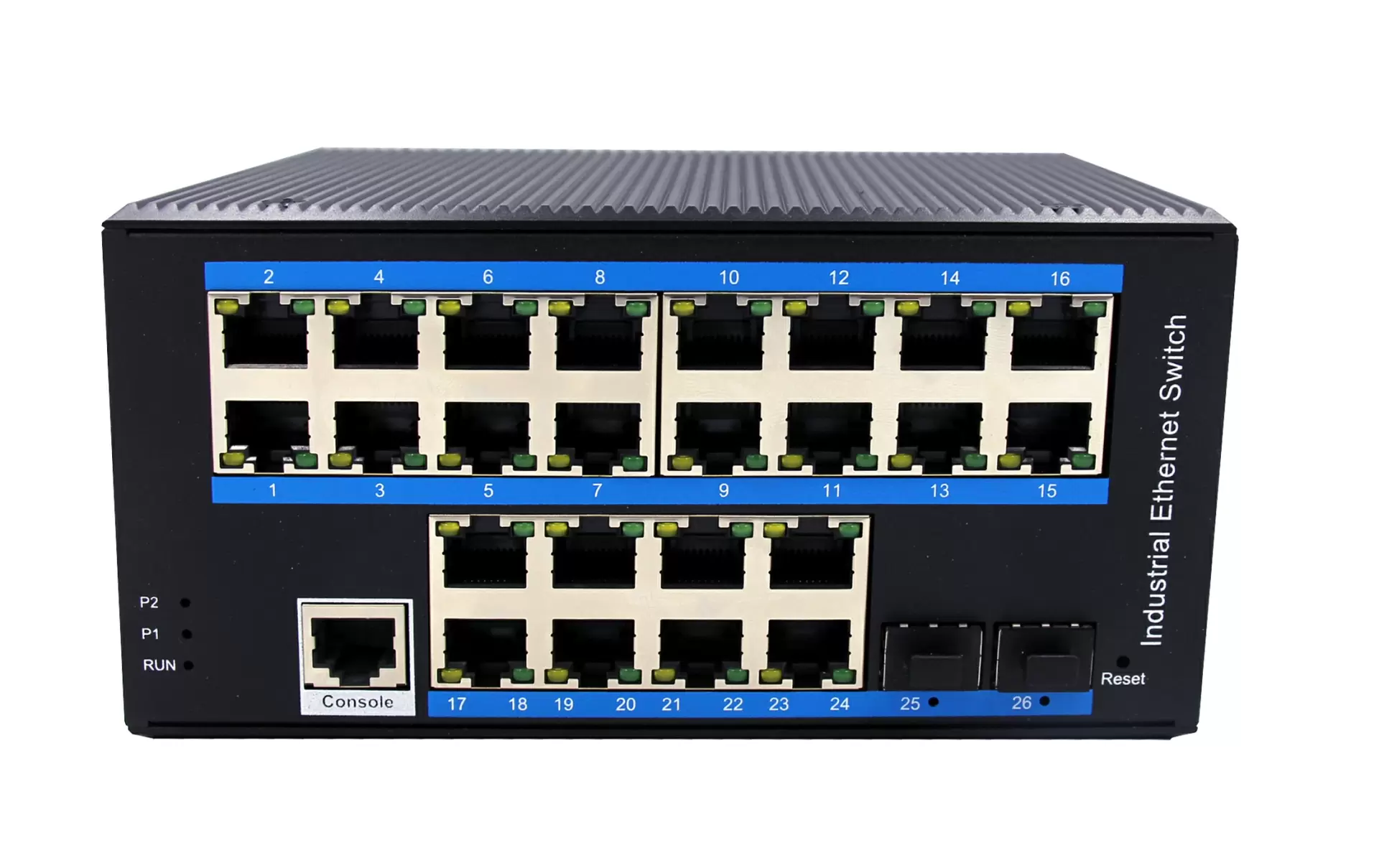

In the market , it is few with a 24 port Industrial Din-rail type ethernet switch, mostly the 24 port is for 1U cabinet (or we called 19” switch ). however Yuhang is like to meet some clients demand and the accurate project needs, we developed this high level but cost-effective ethernet switch. its small size is just 166*137*68.5mm, the weight is about 1.3KGS. It is quite suitable to install the outside cabinet.

Yes, our products are designed for the outdoor use purpose. From the inside components ,we choose to use the same suppliers as Hikvision, Dahua, these famous CCTV brand in China, of course they’re global. The most important issue to an Industrial switch is working stable and working in rough environment. All of our products should be pass EMC test, EMC-I, EMC-II, EMC-III is different level in the market. Yuhang’s Industrial switch could be passed the level EMC-II and some of them are level EMC-III.

The outside, we used the hardened aluminum case ,which provides IP40 protection. The switch can put to work at a temperature -40 ~80℃

L2 Management feature brings the connected switches in a ring - to protect the internet without fail. The ring network supports EAPS, STP/MSTP/RSTP multiple way.

Finally, for the PD devices. This item can supply max.16 port POE Output, each port supply max.30W PoE, total PoE budget : max 480W
