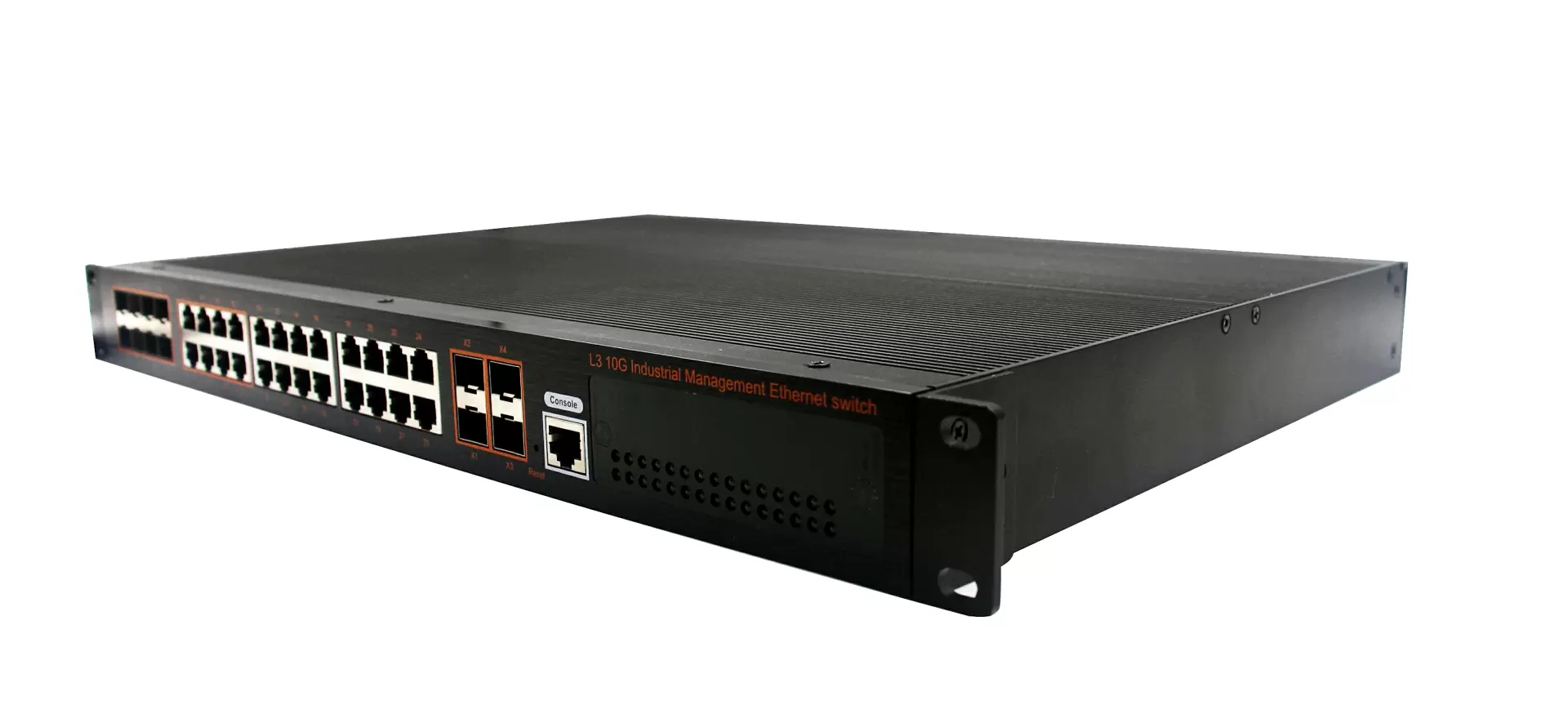

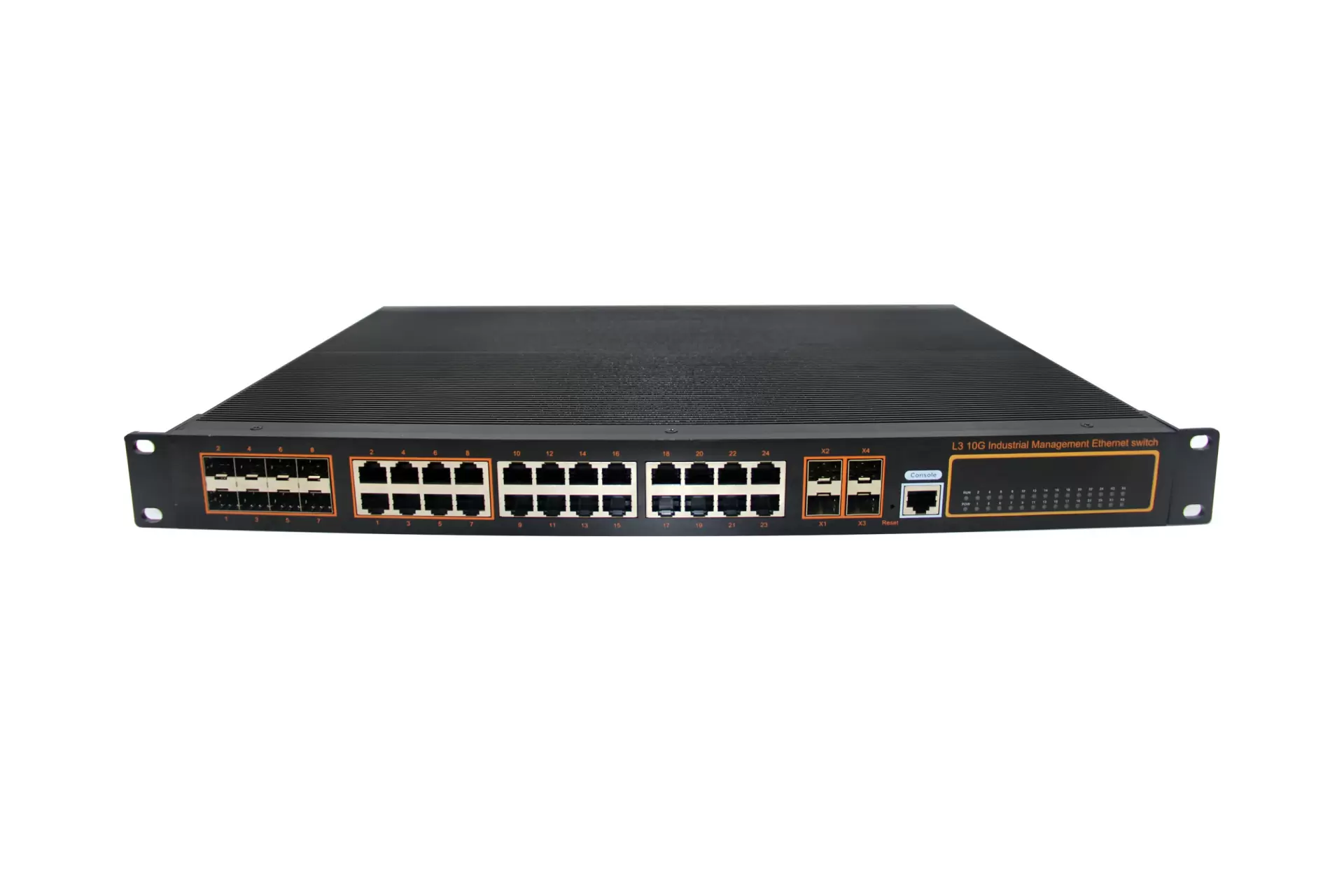

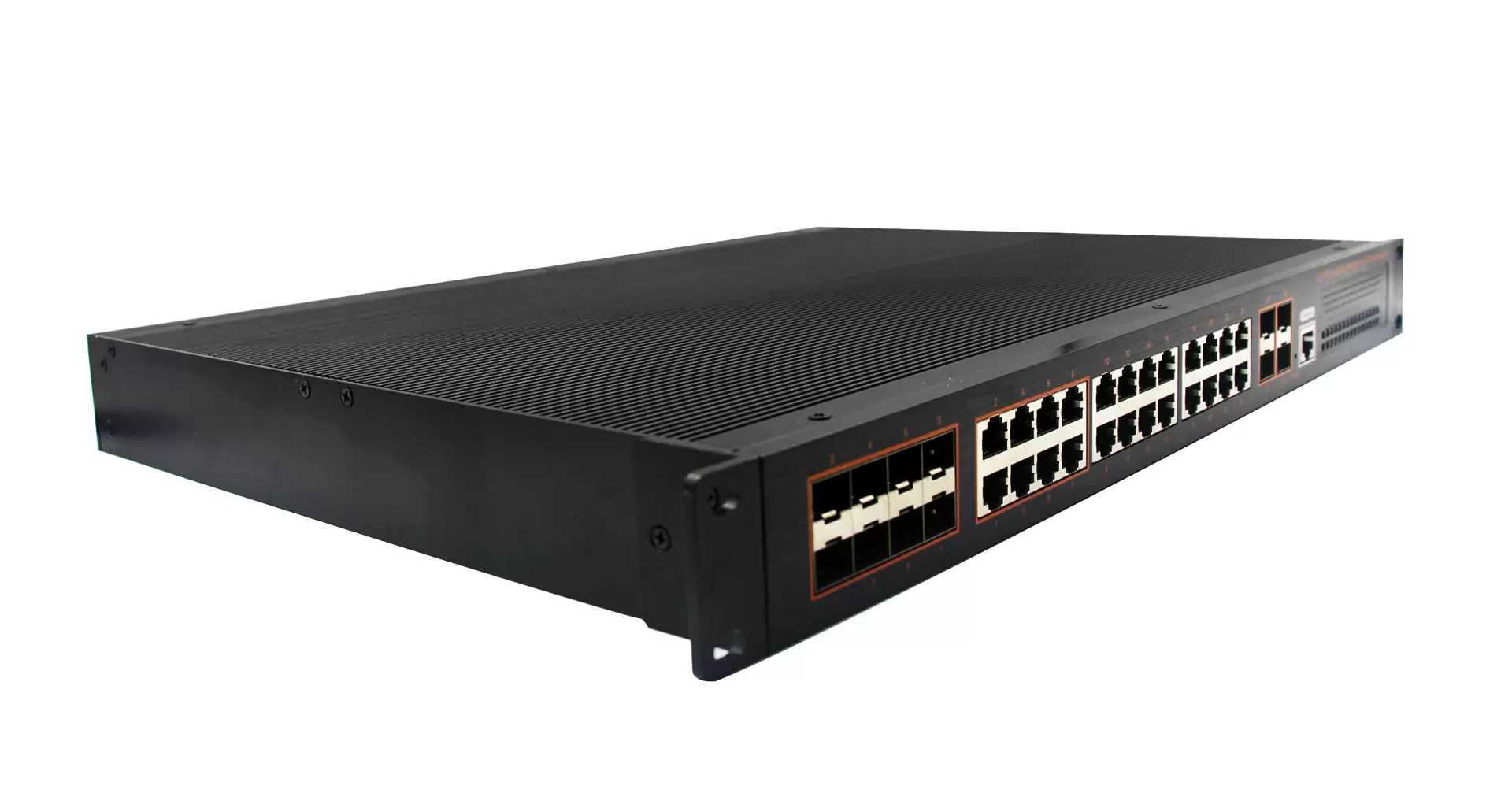

19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST

‹

›

‹

  • 19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST
  • 19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST
  • 19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST
  • 19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST
  • 19" rack mounted Rugged IP50 24-Port gigabit RJ45 +8G SFP combo+4-Port 10G SFP L3 Managed Industrial Switch, 24 port core switch telecom grade , dual power supply in AC100~240V DC36~72V YH6824GST

›


Rack mounted Aluminum Industrial Switch


YH6824GST4-SFP switch is a high performance 10G SFP+ L3 core switch. It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design, which supports up to 4 Port 10G SFP+, and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6 hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high capacity exchange capacity. YH6824GST4-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The rack-mounted characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.



Strong processing ability

YH6824GST4-SFP switch is based on the powerful and stable processing power of VCore-III MIPS-based CPU YH6824GST4-SFP provides up to 598Gbps of switching capacity port full speed filtering and forwarding 252Mpps To ensure that the trunk network of large traffic data without blocking Forwarding.


Features

• Data control: support 802.3x full duplex flow control, support network storm suppression

• Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)

• Support IPv6, static routing, Dynamic routing (RIP,OSPF)

• Support RIPng, OSPFv3, DHCP Server, DHCP replay, Qos

• Multicast management: Support IGMP Snooping V1/V2/V3

• VLAN: support IEEE 802.1q VLAN, effectively isolated broadcast domain

• Link aggregation: support link static/dynamic aggregation, provide perfect bandwidth utilization

• QoS: Support COSDSCP, 4 queues, support WRRSP scheduling mode

• Security management: support ACL access control list, support 802.1x, support user classification management

•  Management function: support Web, SNMP management mode

• Monitoring maintenance: support port mirroring, interface status monitoring, log management

• Alarm function: support power supply, port, abnormal state relay output

Specifications:


Model No.YH6824GST4-SFP
Interface24-Port 10/100/1000Mbps RJ45 8-Port 10/100/1000Mbps SFP(combo)4-Port 10G SFP+1-Port console
 Performance SpecificationBandwidth(switch capacity): 598Gbps Packet Buffer Memory:32MbitPacket Forwarding Rate: 252MppsMAC Address Table: 32K
InstallationBracket mounted
Maximum Frame Size16360bytes
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP50 Aluminum housing
 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow

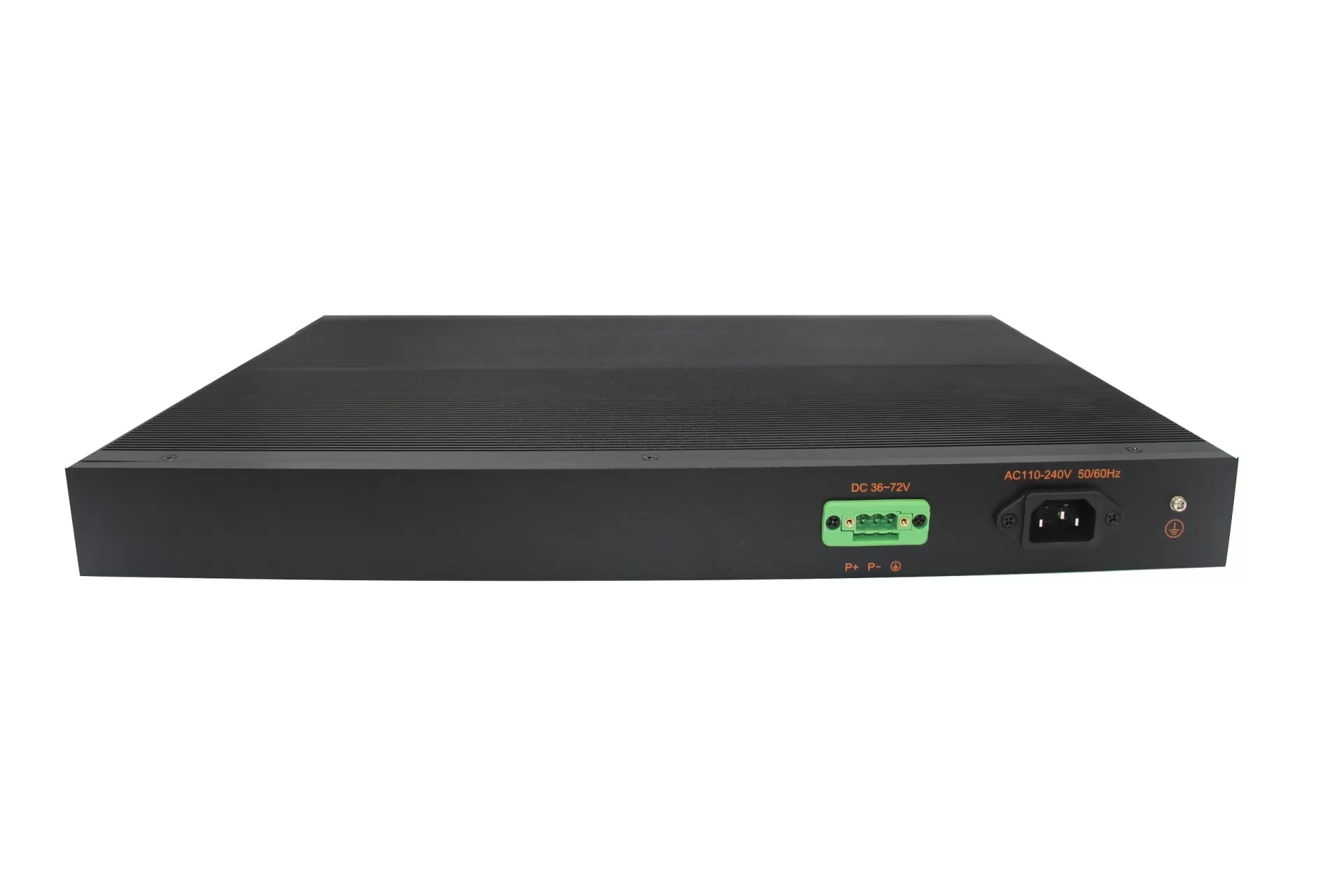

Dual Power Input36 to 72V DC &110～240V/50～60Hz AC
Power Consumption< 45watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry Standard(EMC 4)FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance
MTBF>300,000hours

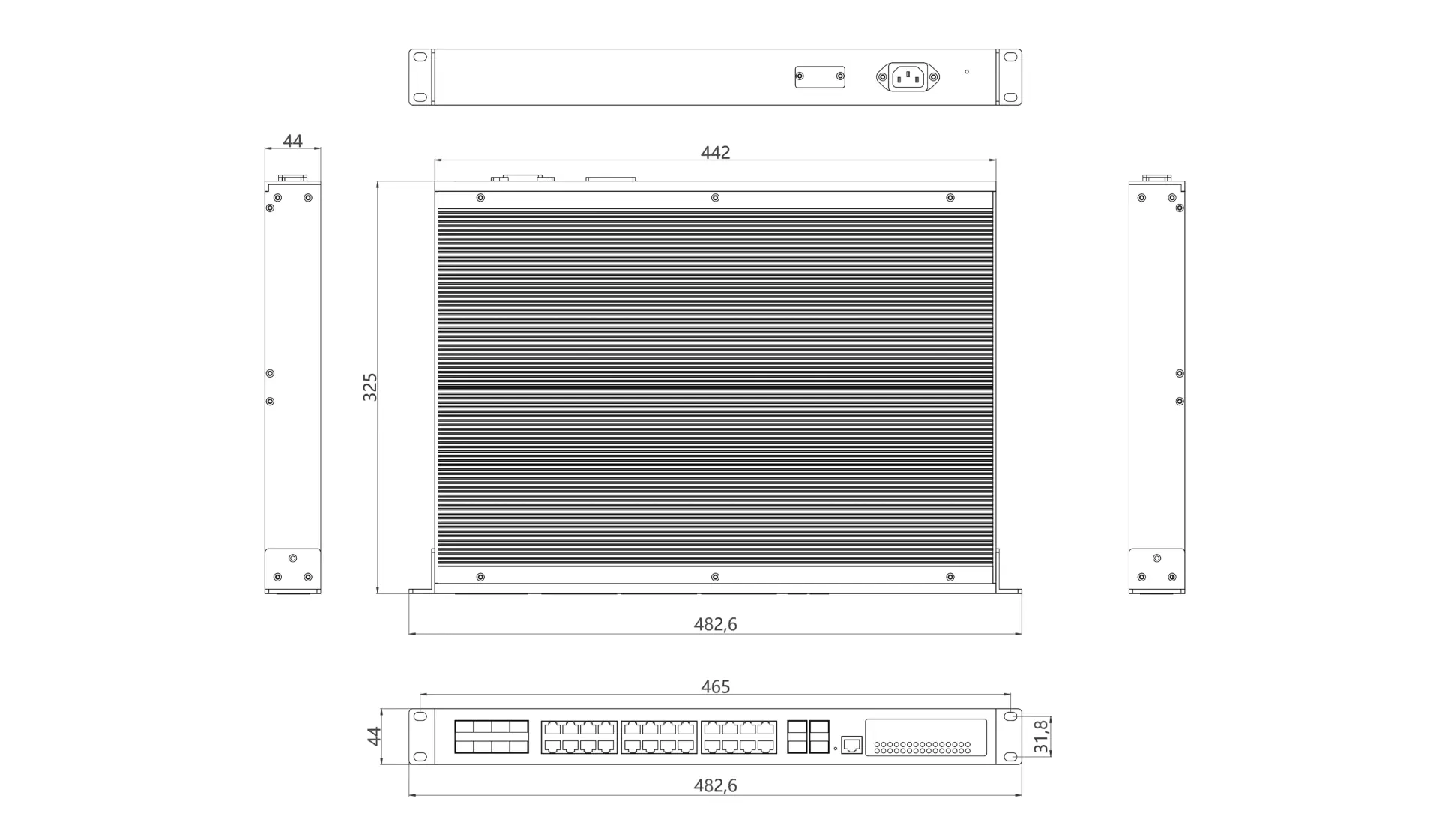

Dimensions (W x D x H)442×325×44mm
WeightProduct Weight: 4KGS    Packing Weight: 4.15KGS
Working Environment Working temperature: -40～85℃ ;  Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
