Slim Type with more Practicability and Convenience

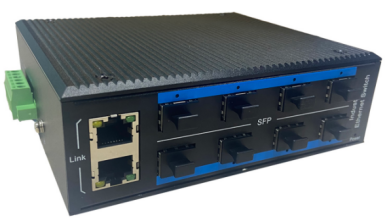

ZXD82G-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 1000Mbps SFP+2G RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The ZXD82G-SFP series is packaged in a compact IP40 case with Din-rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Specifications:
Model No. | ZXD82G-SFP |
Ports | 8 port SFP support gigabit 2 port RJ45 10/100/1000Mbps |
Performance Specification | Bandwidth: 20Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Copper / SFP : Link / Act |
Power Input | 12 to 52V DC redundant power |
Power Consumption | < 10 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7×125×47.7mm |
Weight | Product Weight: 0.85KG Packing Weight:1.0 KG |
Working Environment
| Working temperature: -40-80 degree Storage temperature: -40-80 degree Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
