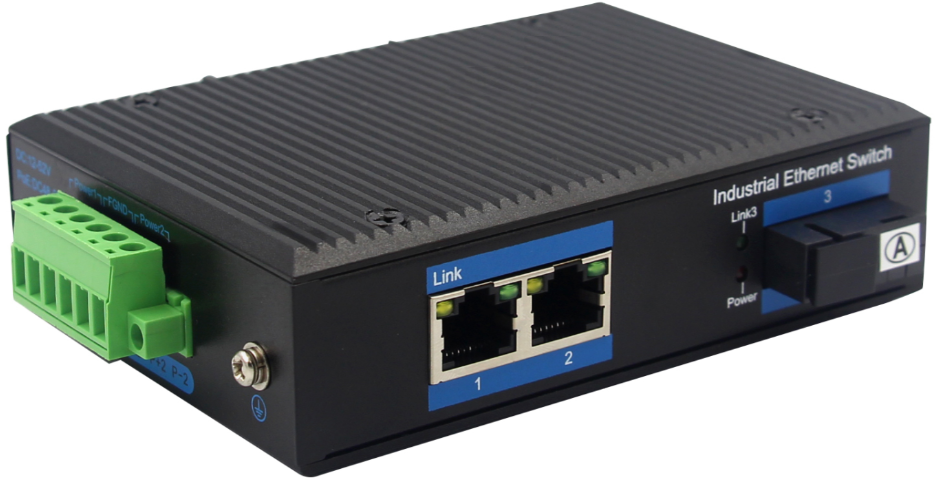

ZXD12G Series
10/100/1000Base-TX to 1000Base-FX Industrial Media Converter
Distance extending Slim Type with more Practicability and Convenience
Yuhang 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXD12G-SC2, up to 20km with the ZXD12G-SC20 .
The ZXD11G series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 80℃ allows the ZXD11G series to be placed in almost any difficult environment.
Yuhang ZXD11G 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The ZXD11G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The ZXD11G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Specifications:
Model No. | ZXD12G-SC2 / ZXD12G-SC20 / ZXD12G-SFP |
10/100/1000Base-TX Port | 2 port RJ-45 auto-MDI / MDI-X |
1000Base-FX Port | ZXD12G-SC2: 1 SC interface ZXD12G-SC20: 1 SC Interface ZXD12G-SFP: 1 SFP Slot |
Fiber Port Type | ZXD12G-SC2: SC / multi-mode ,up to distance 2km ; ZXD12G-SC20: SC / single-mode ,up to distance 20km ; ZXD12G-SFP: Vary on module |
Optical Frequency | ZXD12G-SC2: 1310nm ZXD12G-SC20: 1310nm ZXD12G-SFP: Vary on module |
Performance Specification | Bandwidth: 14Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Power Input | 12 to 52V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 118 x 85.7 x 33.5 mm |
Weight | Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
