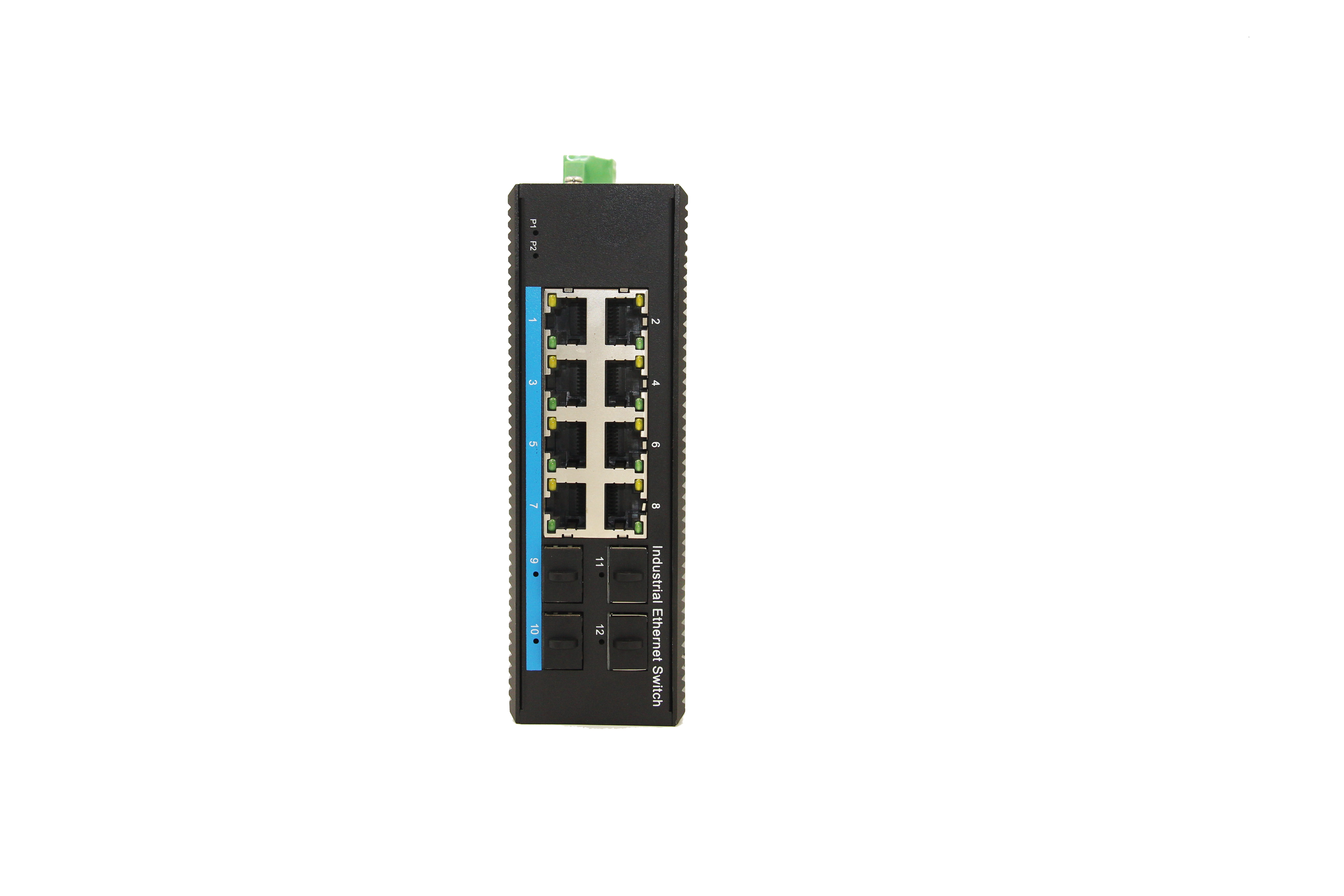

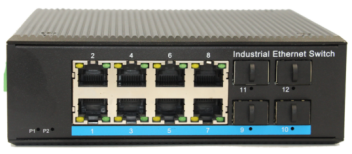

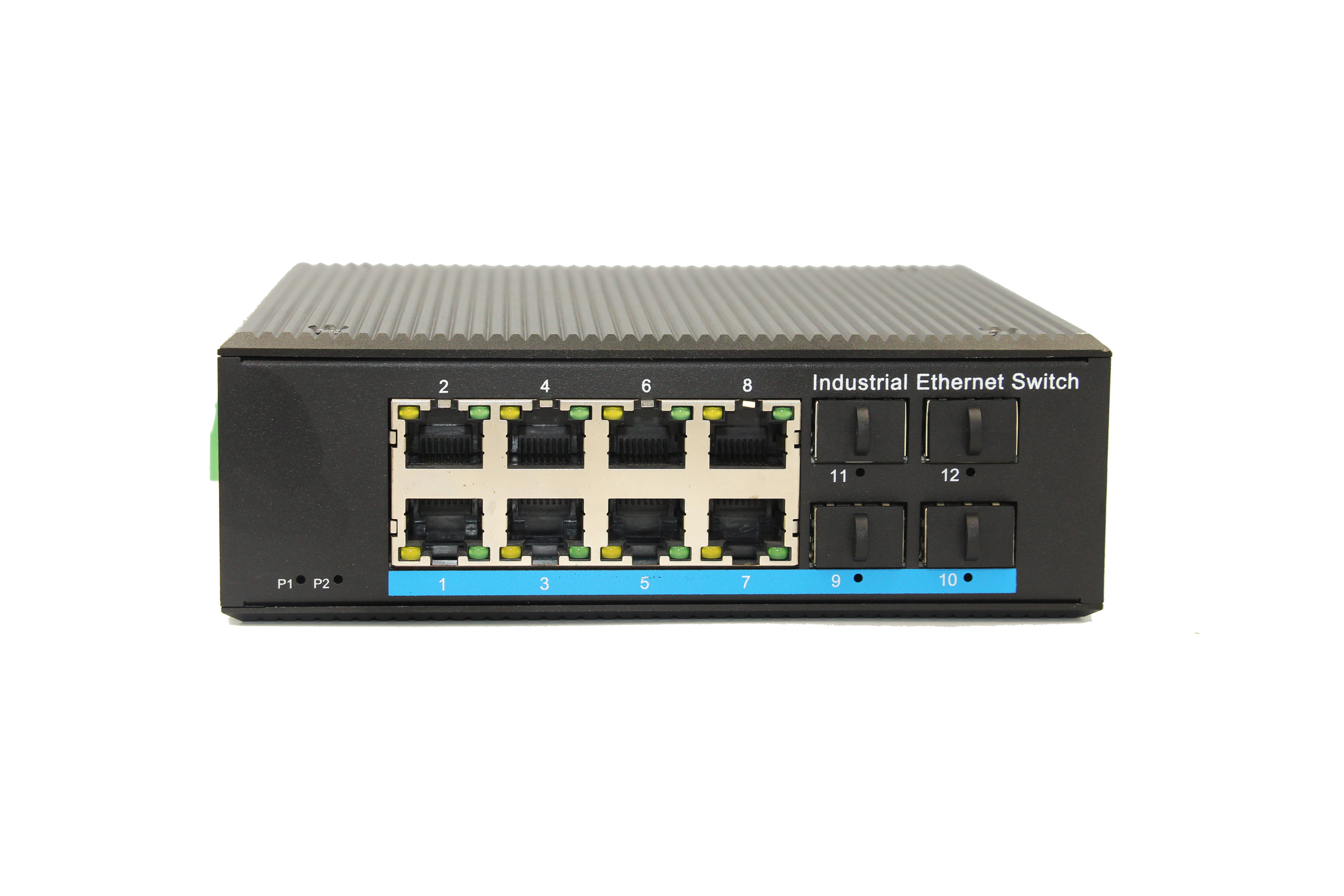

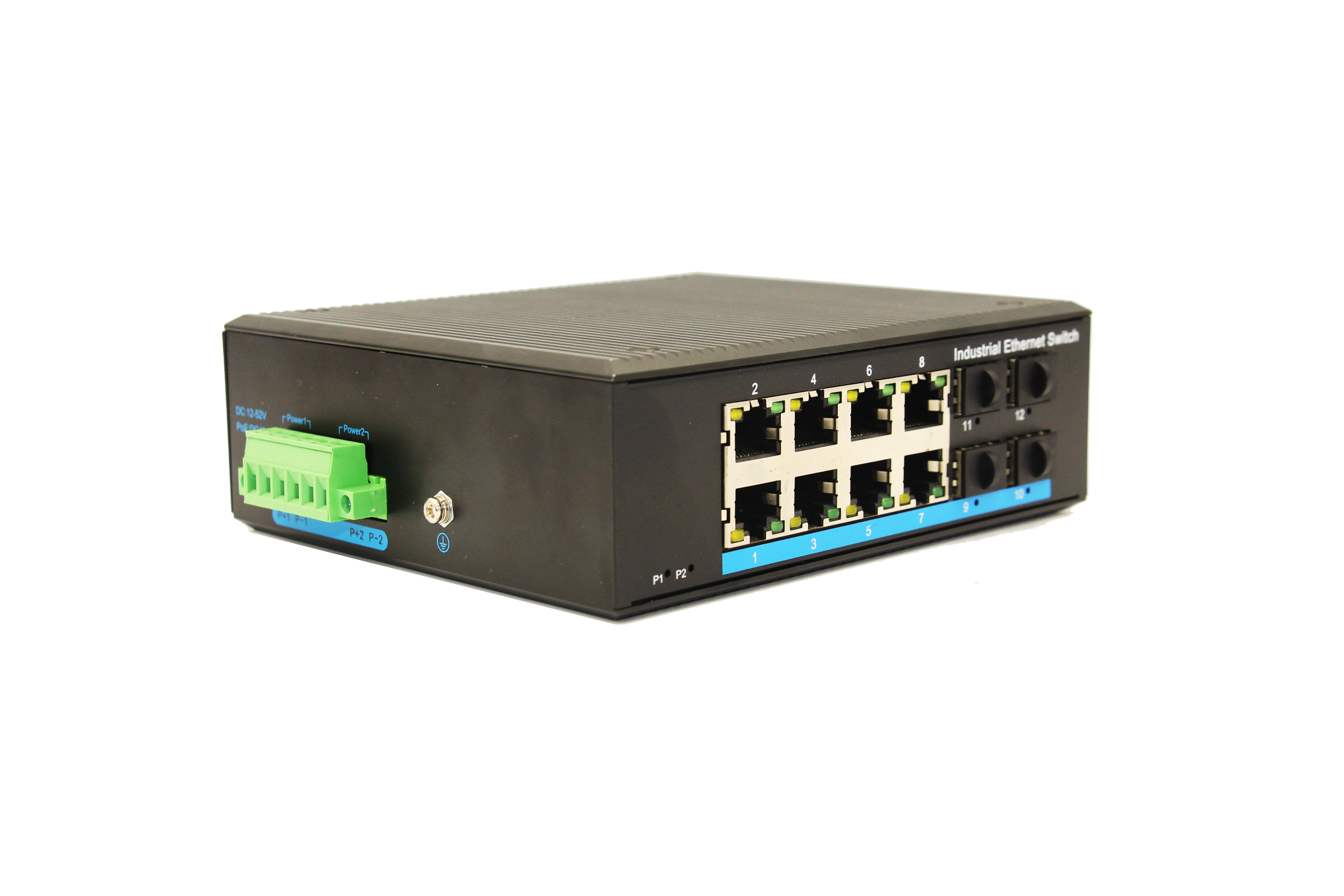

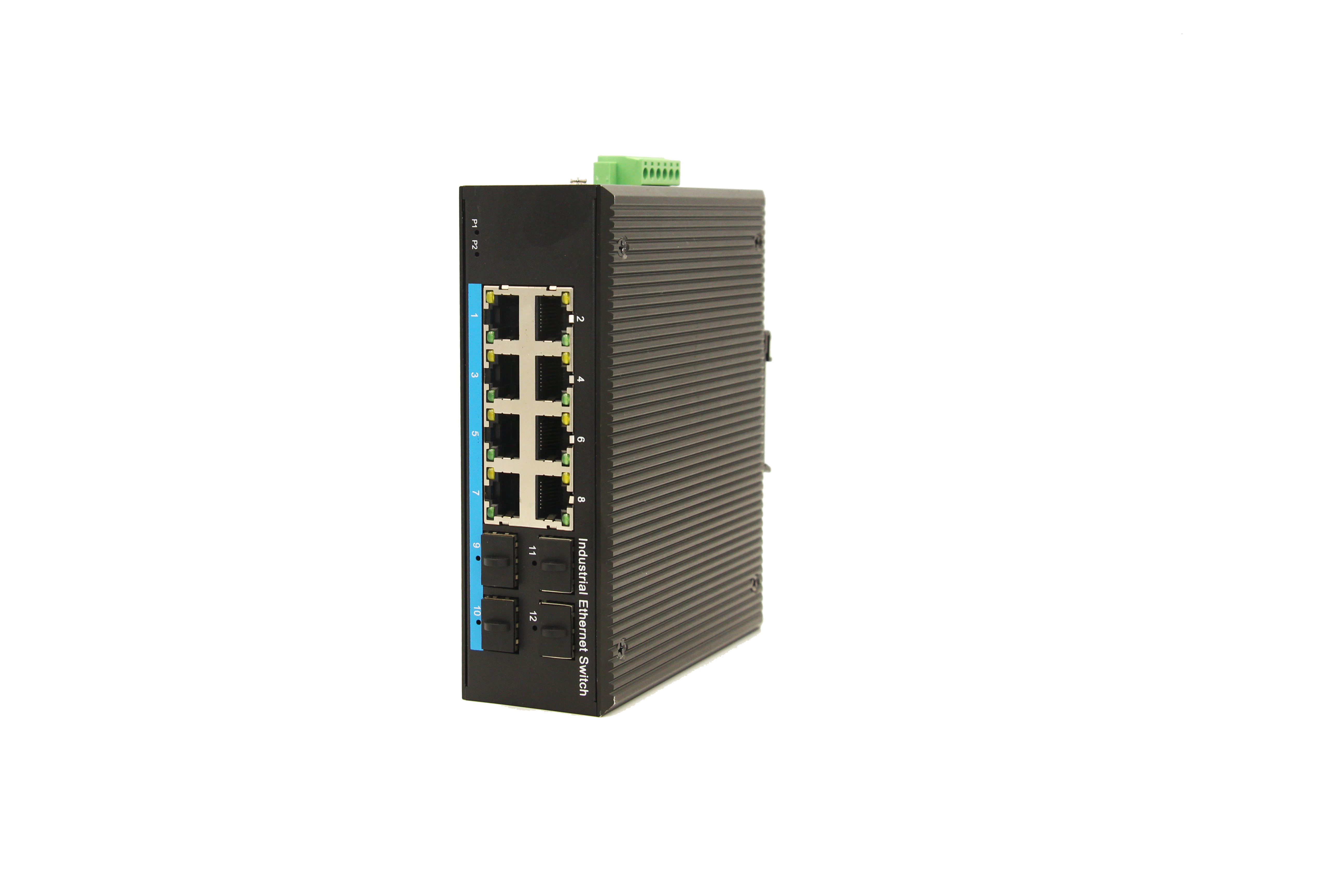

ZXD48GP-SFP

8-port 10/100/1000BASE-TX+4-port SFP Industrial Ethernet PoE Switch





ZXD48GP-SFP an hardened 12-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 PoE +4-port SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.



The ZXD48GP-SFP series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.




Specifications:

Model No.

ZXD48GP-SFP

10/100/1000Base-TX Port

8 port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports：1-8 port

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect af/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

4 port SFP



Performance Specification

Bandwidth: 52Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:41.7Mpps
MAC Address Table: 8K

Installation

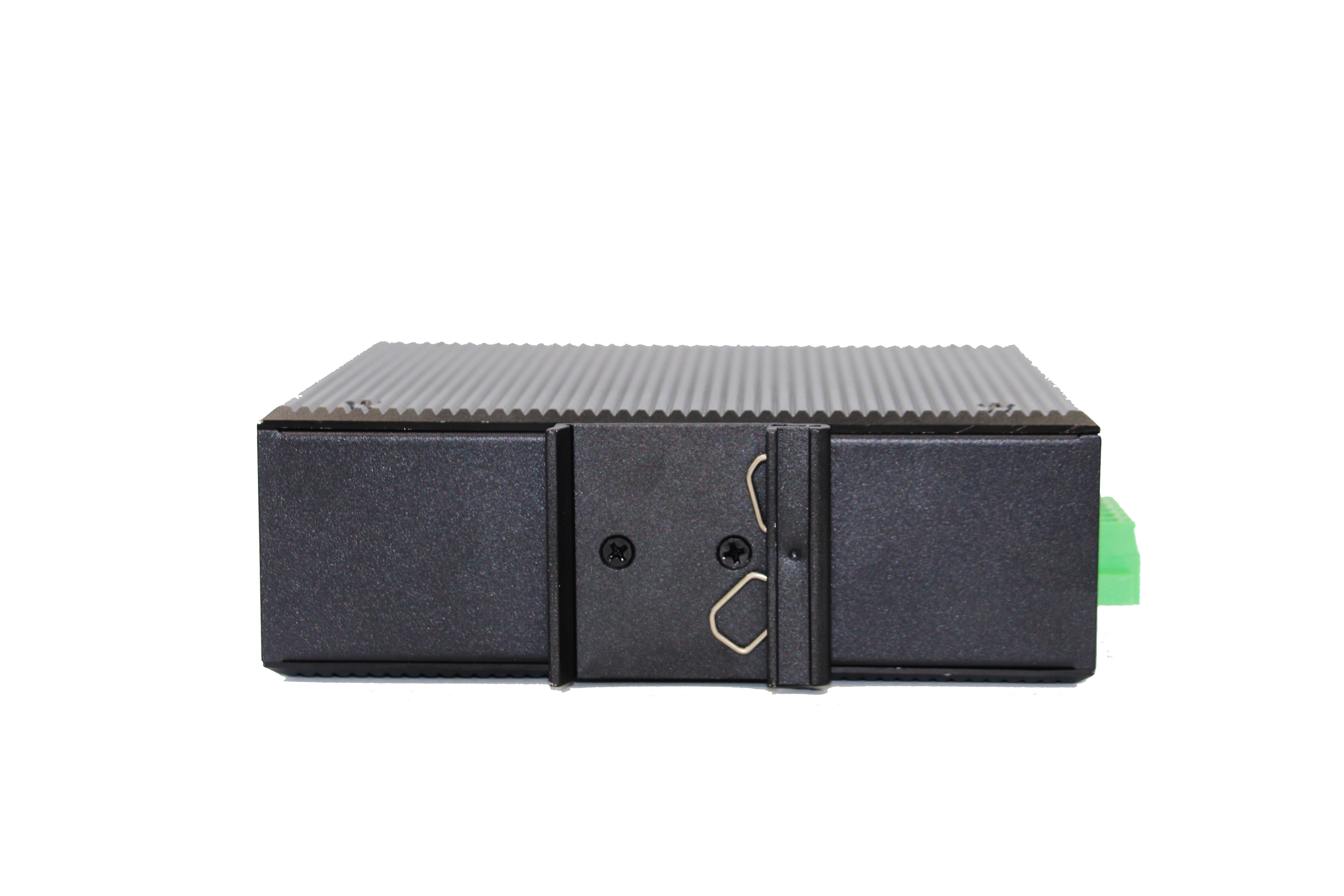

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Green

Ethernet: Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 10 watts (Without PoE output)

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

Dimensions (W x D x H)

143.7 x 125 x 47.7mm

Weight

Product Weight: 0.7KG

Packing Weight: 0.8KG

Working Environment



Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)
