best price original factory OEM 5 Port 1000Mbps Industrial switch , 4 port PoE for CCTV,outdoor indoor strong sutable ZXDL05G

‹

›

‹

›

ZXDL05G

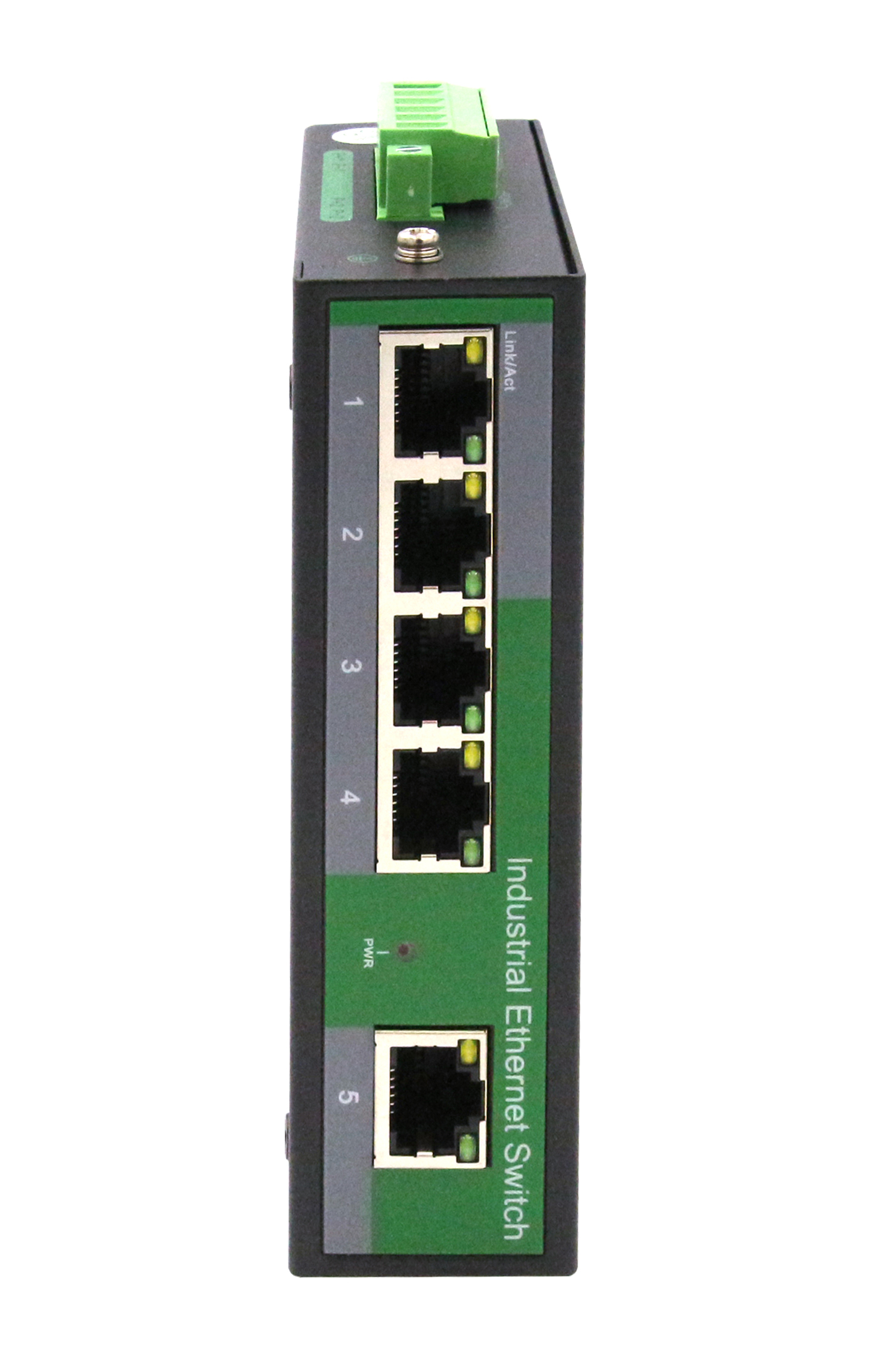

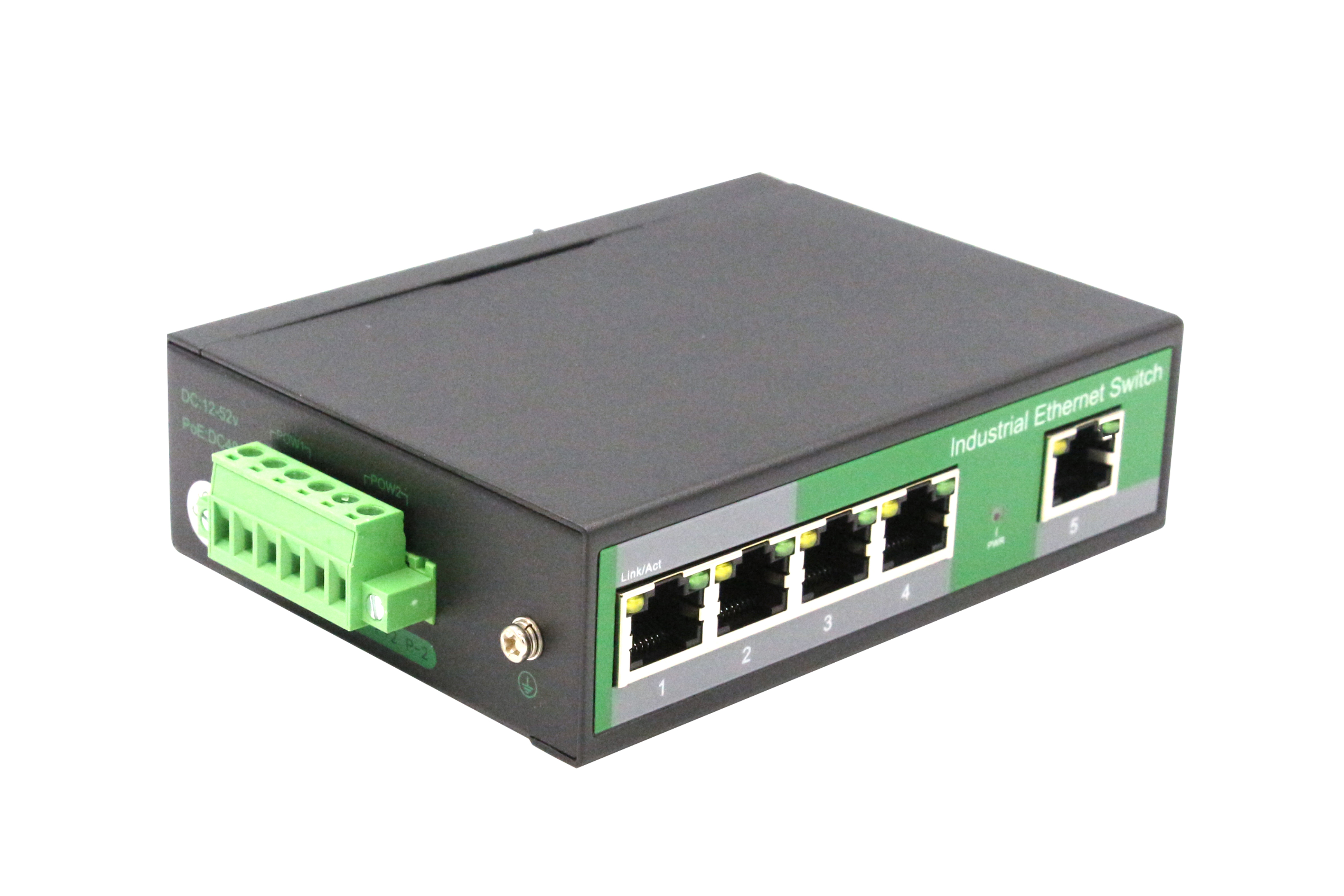

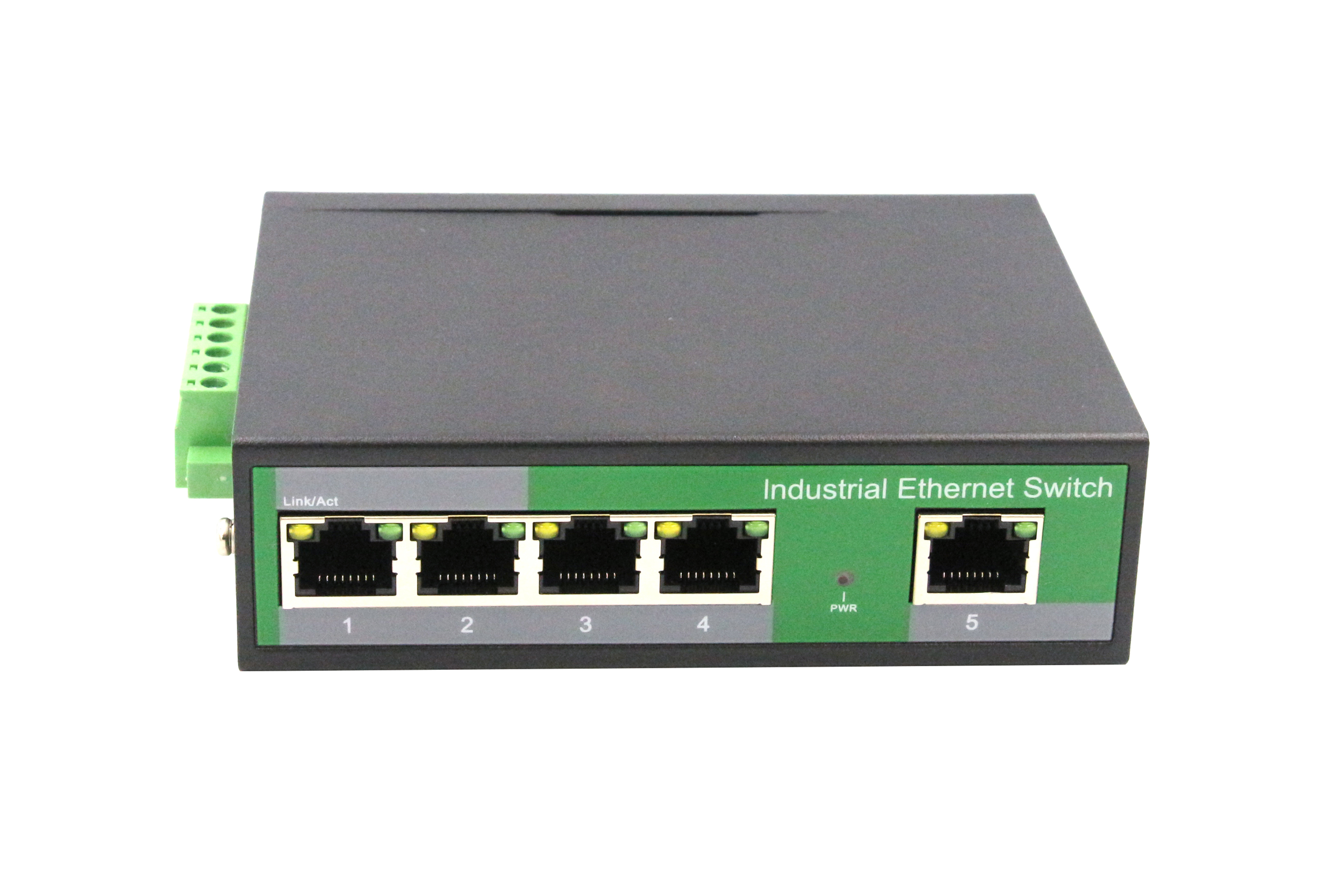

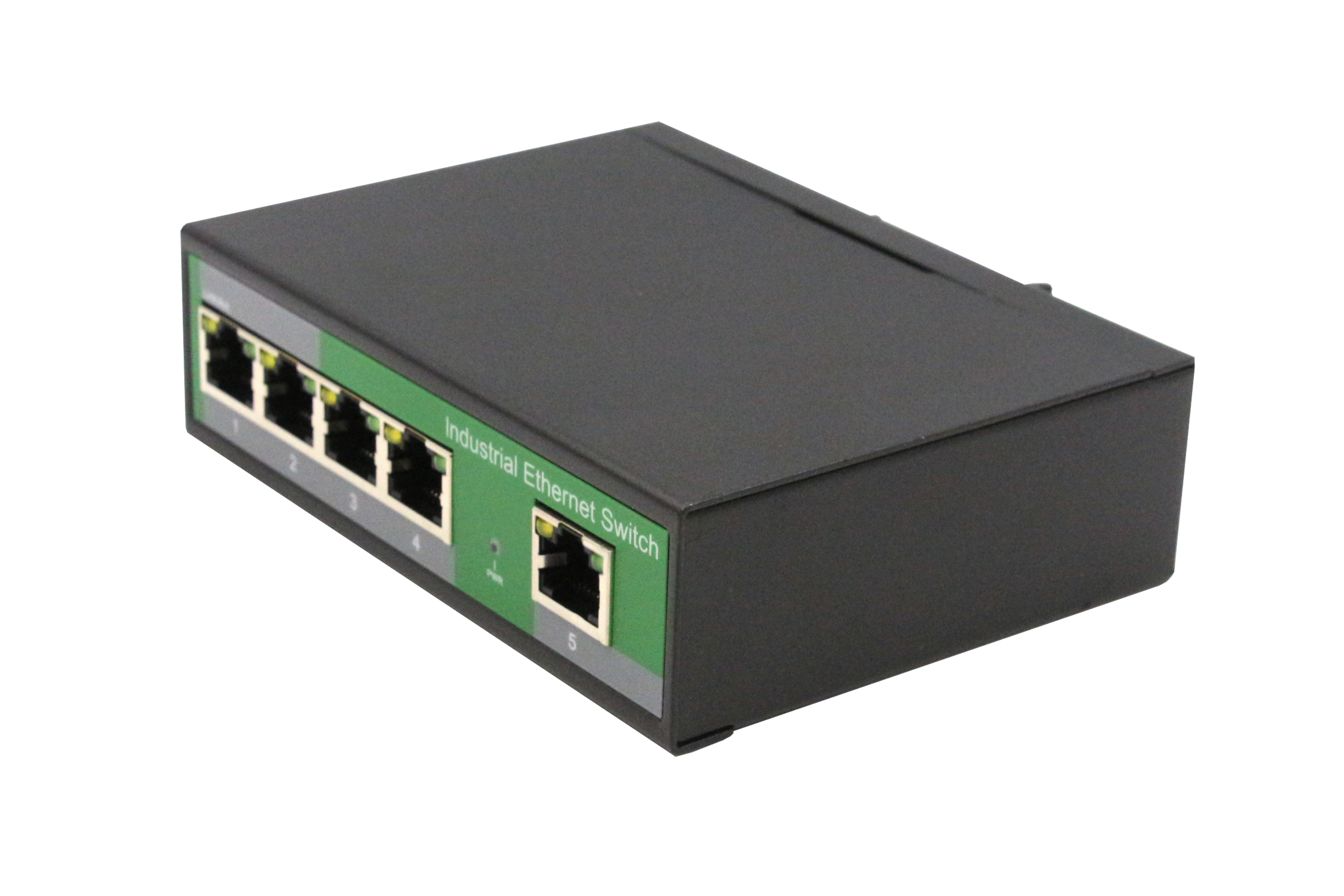

5-port 10/100/1000BASE-TX Industrial Ethernet Switch

Slim Type with more Practicability and Convenience

ZXDL05G an hardened 5-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100/1000BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75℃

The ZXDL05G series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The ZXDL05G series is packaged in a compact IP30 case with Din Rail Installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Specifications:

Model No.	ZXDL05G
10/100/1000BASE-TX Port	5 port RJ-45 auto-MDI / MDI-X
Performance Specification	Bandwidth: 14Gbps Packet Buffer Memory:1.2Mbit Packet Forwarding Rate:10.5Mpps MAC Address Table: 2K
Installation	DIN rail
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	Steel alloy
LED Indicator	Power: Red Ethernet: Yellow POE: Green
Power Input	12 to 52V DC redundant power
Power Consumption	3 watts max
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	118 x 86 x 33.5 mm
Weight	Product Weight: 0.36KG Packing Weight: 0.46KG
Working Environment	Working temperature: -40-75℃ Storage temperature: -40-75℃ Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.
