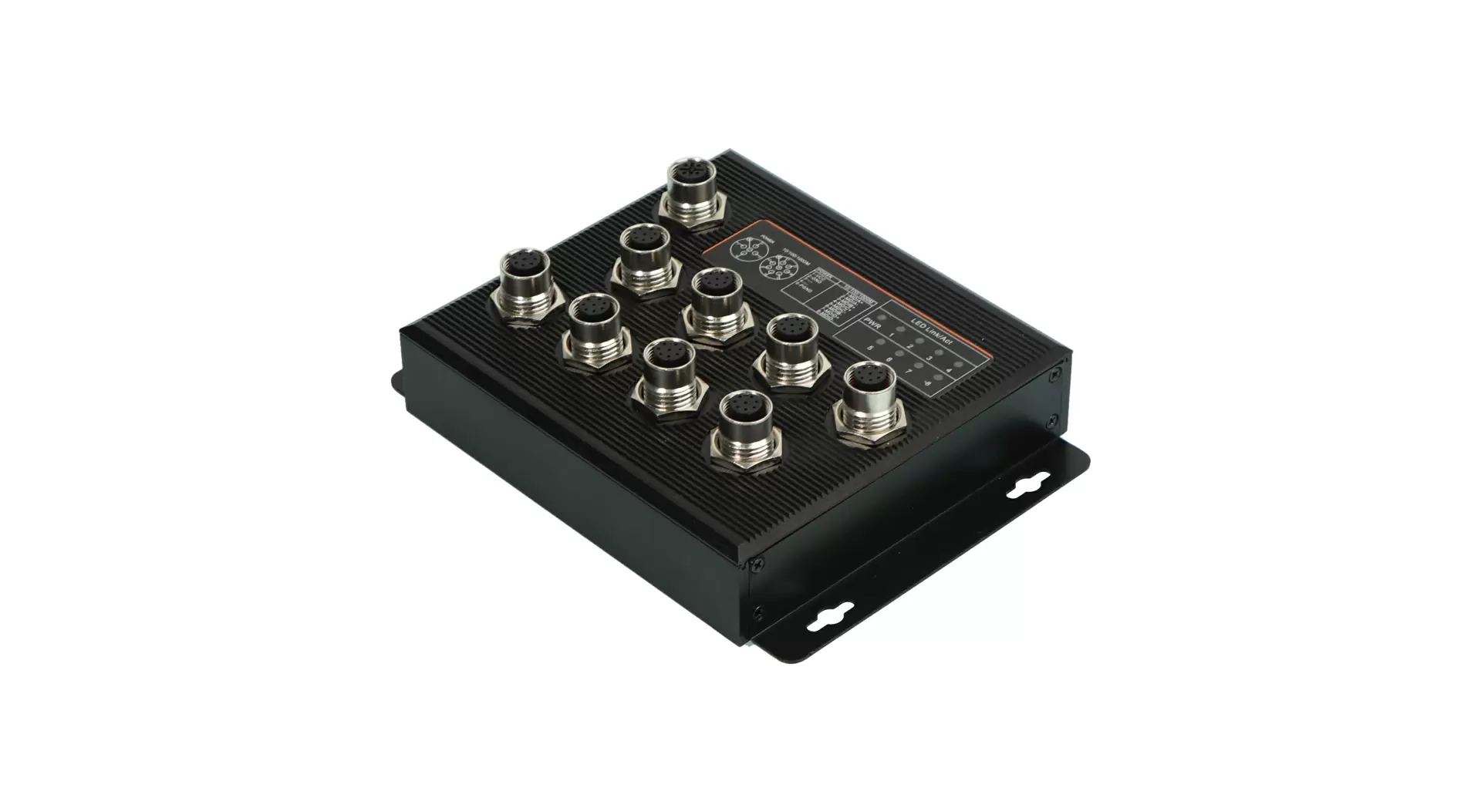

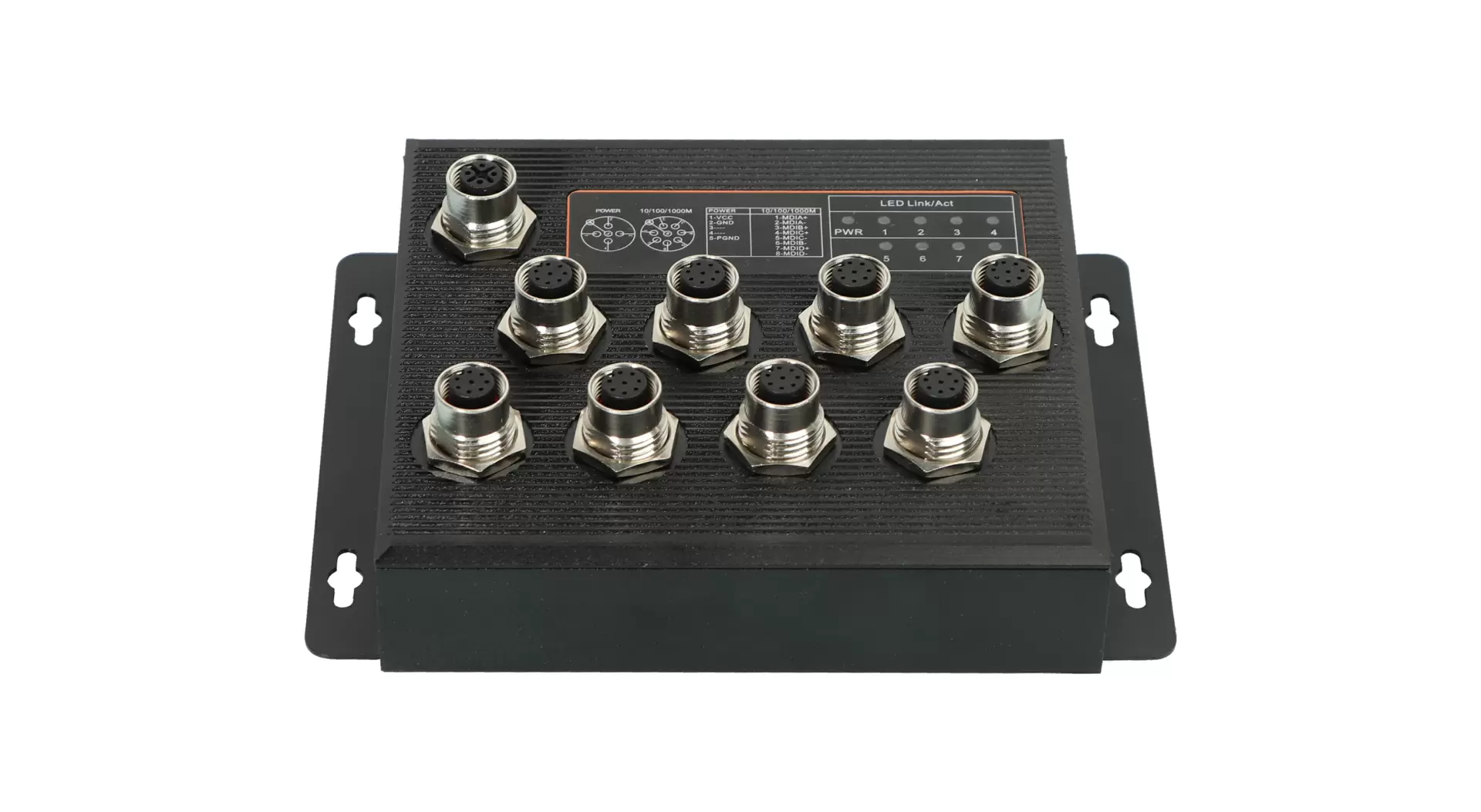

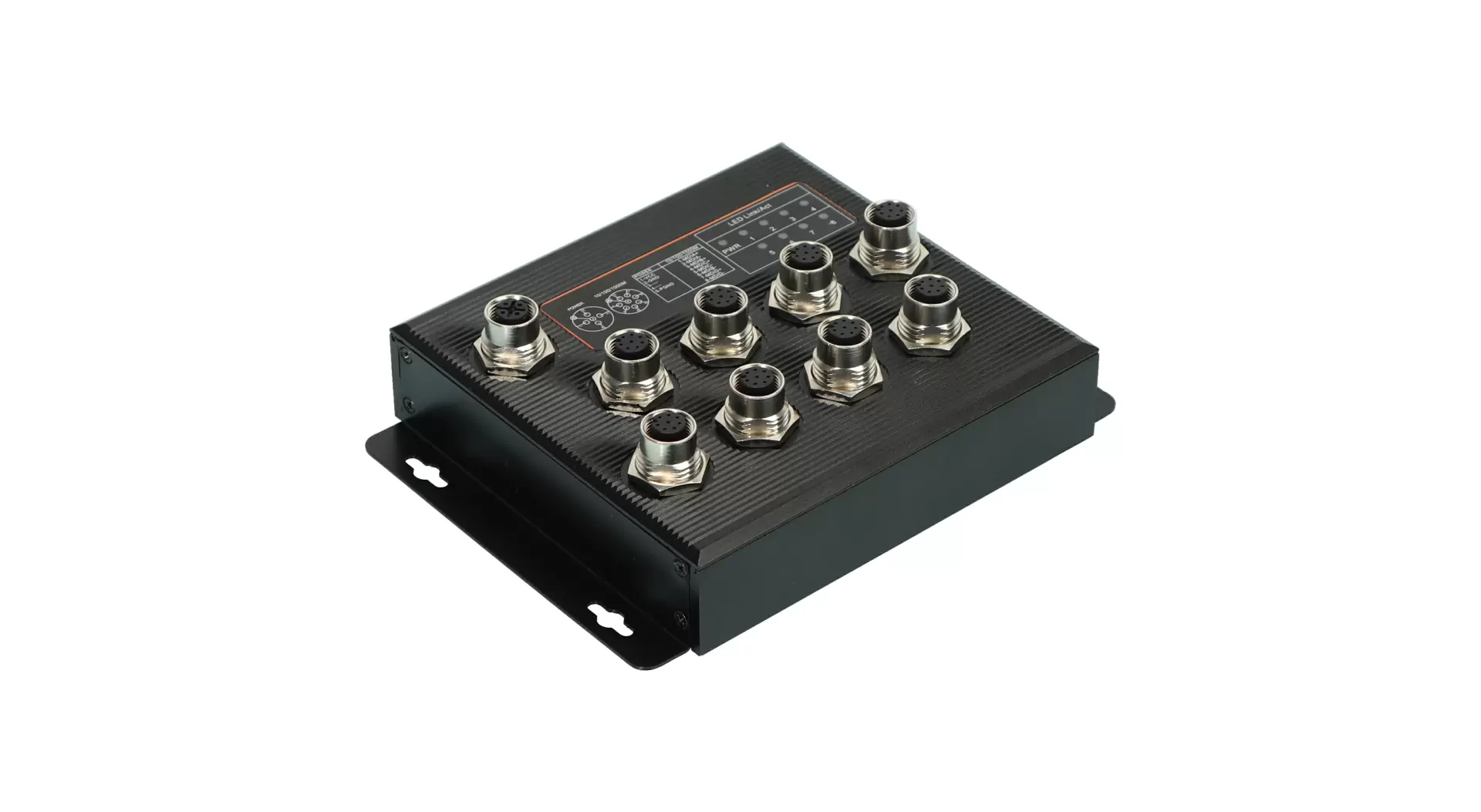

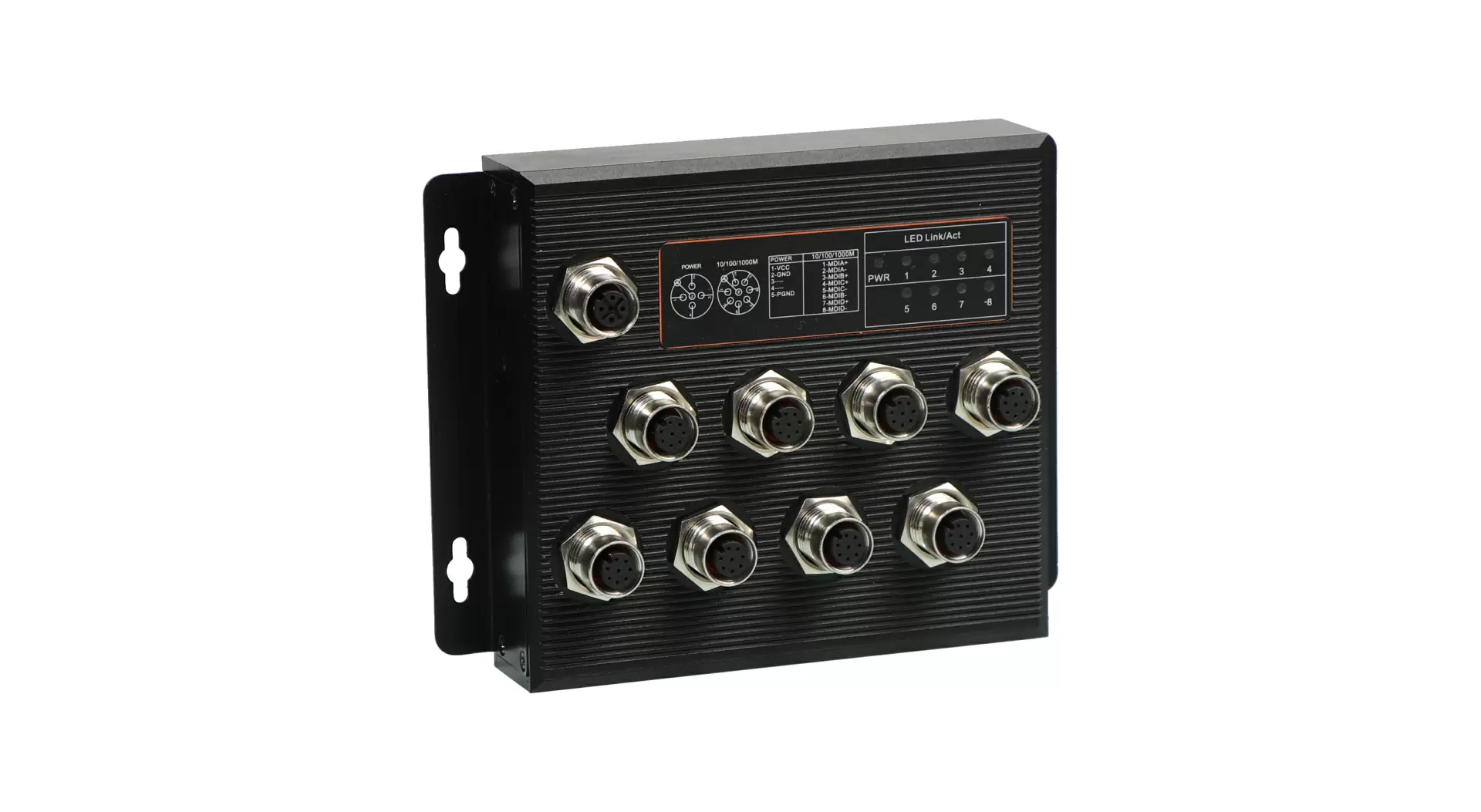

M12 rugged traffic 8 Port gigabit Industrial switch IP64 grade ZXD08G-M12

‹

›

‹

›

ZXD08G-M12

8-port Gigabit rugged Industrial Switch IP64

ZXD08G-M12 is a rugged Industrial switch with M12 connector, it is specially used in Vehicles, airlines, automation Industry etc. which requires to experience vibration and shocks. The switch meets CE, FCC, Rohs standard, IP64 protection, with working temperature from - 40 ° C to 80 ° C . it provides to user more safety, reliable solution on vehicles.

Features

● M12 interface, gigabit port is M12 X-coded type
● Wall-mounted installation
● Support full duplex or half duplex mode, and with automatic negotiation capability
● The network port supports automatic cross recognition
Store and forward, support a variety of protocols
● In line with industrial operating standards, the average trouble-free work is more than 300,000 hours
● Power supply: Non-POE type DC 12-52V, PoE type DC 48-57V

● Power Socket: M12(Male), 4-Pin A coded

Specifications:

Model No.	ZXD08G-M12
Description	8-port Gigabit rugged Industrial Switch
Performance Specification	Bandwidth: 20Gbps Packet Buffer Memory:2Mbit Packet Forwarding Rate:15Mpps MAC Address Table: 8K
Installation	Wall mounted
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP64 aluminum housing
LED Indicator	Power: Red Ethernet: Yellow
Power Input	12 to 52V DC redundant power
Power Consumption	5 watts
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	157.8 x 121 x 43.2 mm
Weight	Product Weight: 0.65KG Packing Weight: 0.75KG
Working Environment	Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.

Specifications:

Model No.	ZXD08G-M12
Description	8-port Gigabit rugged Industrial Switch
Performance Specification	Bandwidth: 20GbpsPacket Buffer Memory:2MbitPacket Forwarding Rate:15MppsMAC Address Table: 8K
Installation	Wall mounted
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP64 aluminum housing
LED Indicator	Power: RedEthernet: Yellow
Power Input	12 to 52V DC redundant power
Power Consumption	5 watts
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	157.8 x 121 x 43.2 mm
Weight	Product Weight: 0.65KGPacking Weight: 0.75KG
Working Environment	Working temperature: -40～85℃ ; Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.
