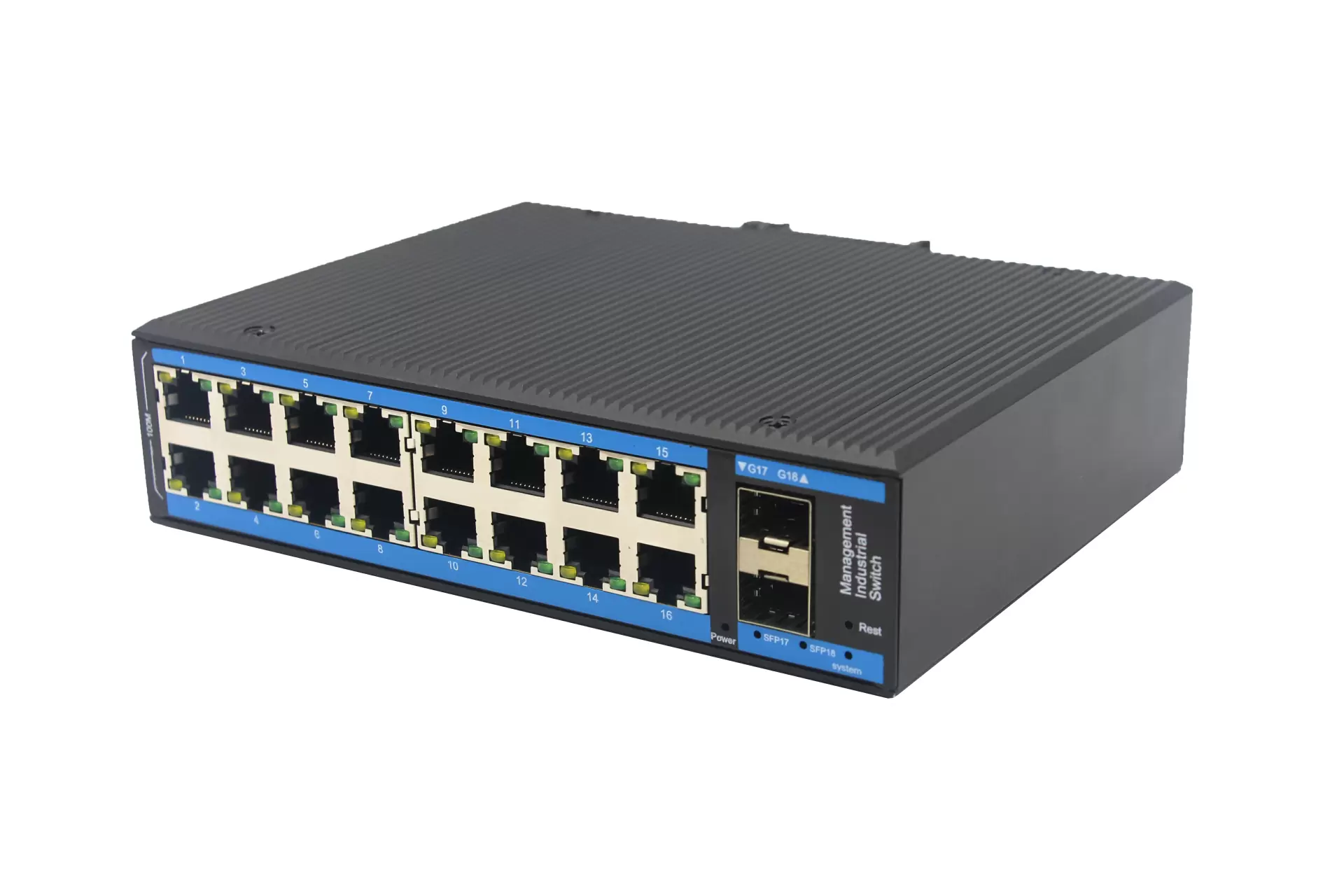

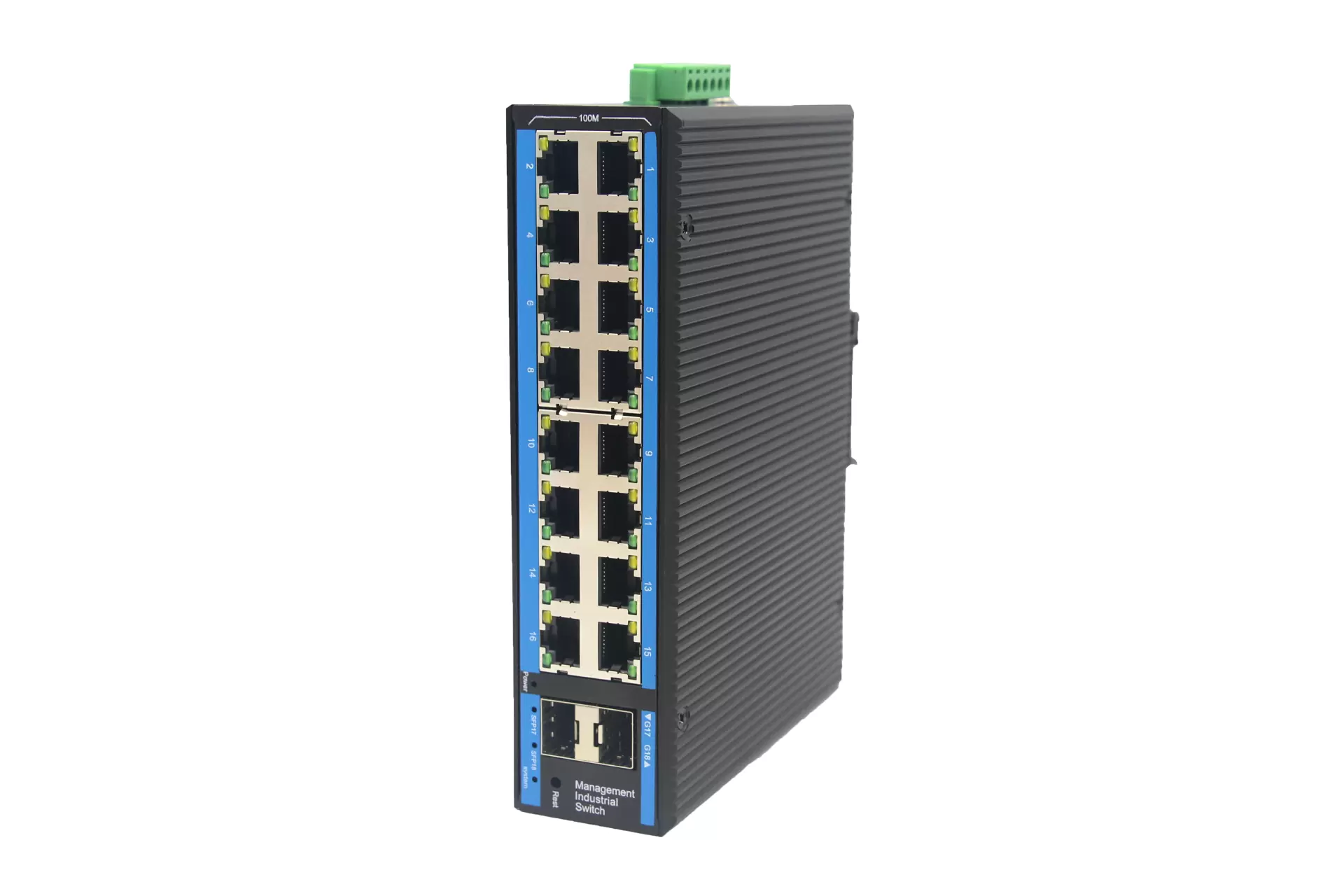

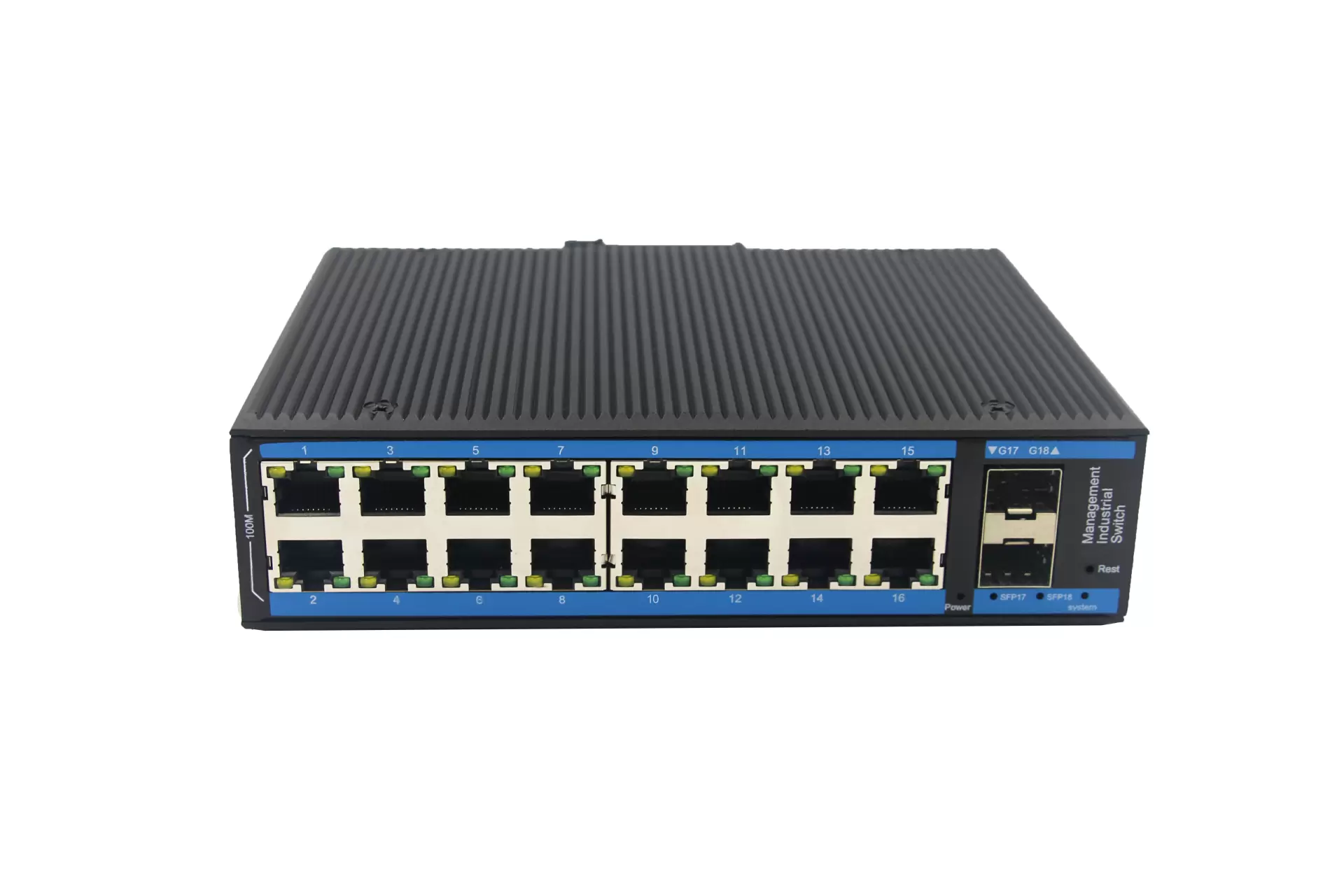

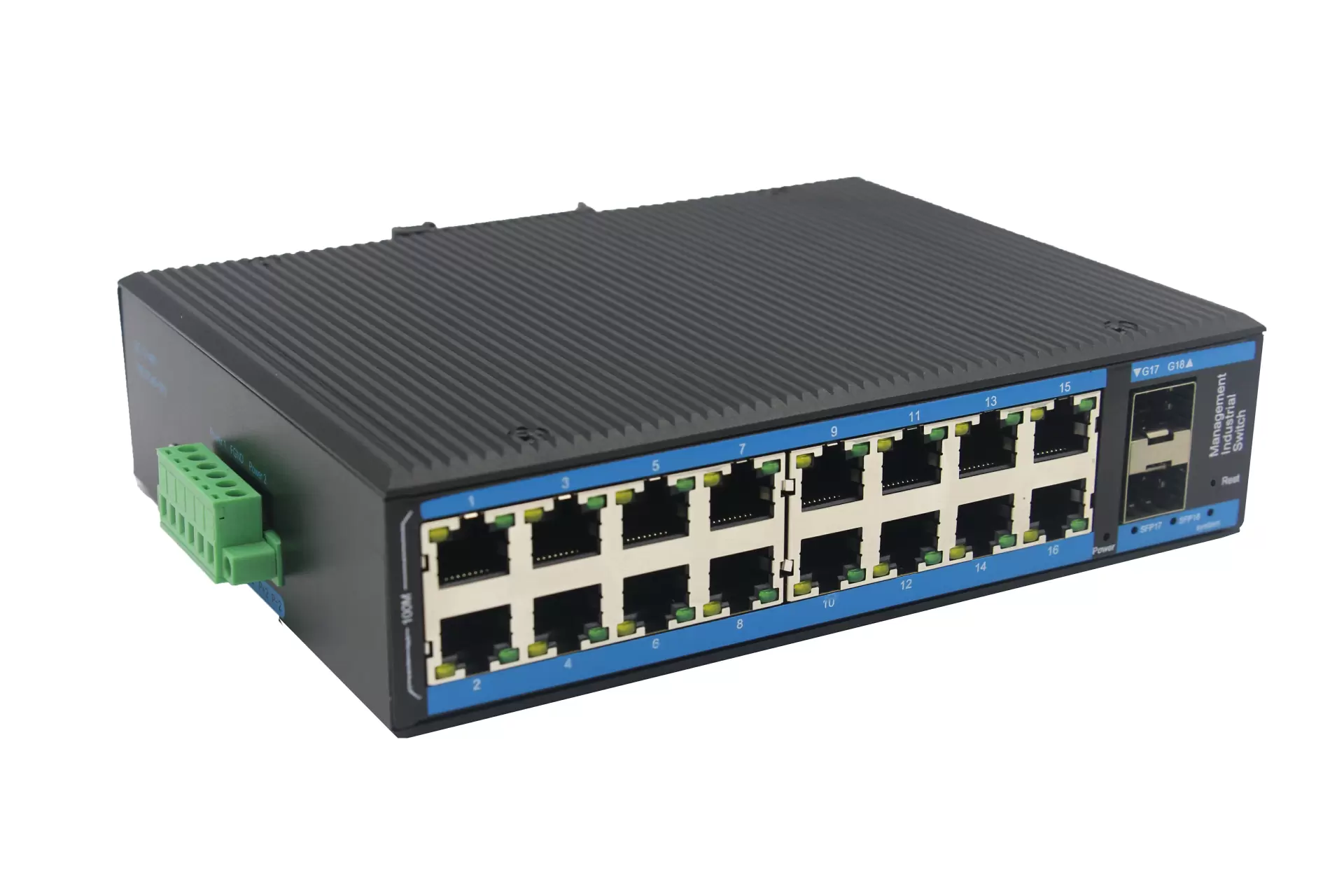

Rugged 16 Port gigabit Industrial switch+2G SFP uplink Port Din rail aluminun case IP40 protection ZXD216G-SFP

‹

›

‹

  • Rugged 16 Port gigabit Industrial switch+2G SFP uplink Port Din rail aluminun case IP40 protection ZXD216G-SFP
  • Rugged 16 Port gigabit Industrial switch+2G SFP uplink Port Din rail aluminun case IP40 protection ZXD216G-SFP
  • Rugged 16 Port gigabit Industrial switch+2G SFP uplink Port Din rail aluminun case IP40 protection ZXD216G-SFP
  • Rugged 16 Port gigabit Industrial switch+2G SFP uplink Port Din rail aluminun case IP40 protection ZXD216G-SFP

›


Slim Type with more Practicability and Convenience


ZXD216G-SFP an hardened 16-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 16-port 10/100/1000BASE-TX RJ45 copper interfaces +2 Port 10/100/1000 SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.


The ZXD216G-SFP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.


The ZXD216G-SFP series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface


• 16-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/MDI-X function

• 2-port gigabit SFP


 Industrial conformance


•      12V to 52V DC, redundant power input

•      -40℃ to 80℃ operating temperature

•      IP40 aluminum housing

•      Supports Air discharge: ±12kV

•      Contact discharge: ±8kV

•      Free Fall, Shock and Vibration Stability

•      DIN-rail hardware design


Specifications:


Model No.ZXD216G-SFP
10/100/1000BASE-TX Port

16 port RJ-45 auto-MDI / MDI-X

2 port SFP uplink

 Performance SpecificationBandwidth: 56Gbps Packet Buffer Memory:12MbitPacket Forwarding Rate: 42MppsMAC Address Table: 8K
InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
 LED IndicatorPower: RedEthernet: Yellow POE: Green
Power Input12 to 52V DC redundant power
Power Consumption< 10 watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
MTBF>300,000hours
CertificationCE FCC Rohs compliance
Dimensions (W x D x H)175.6 x 135 x 45.5 mm
WeightProduct Weight: 0.9KG   Packing Weight: 1.0KG
Working Environment Working temperature: -40～85℃ ;  Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
