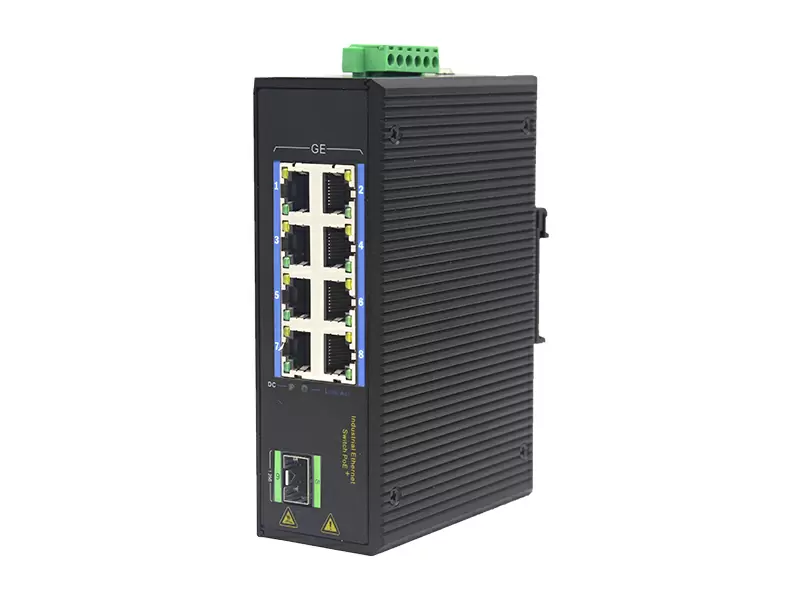

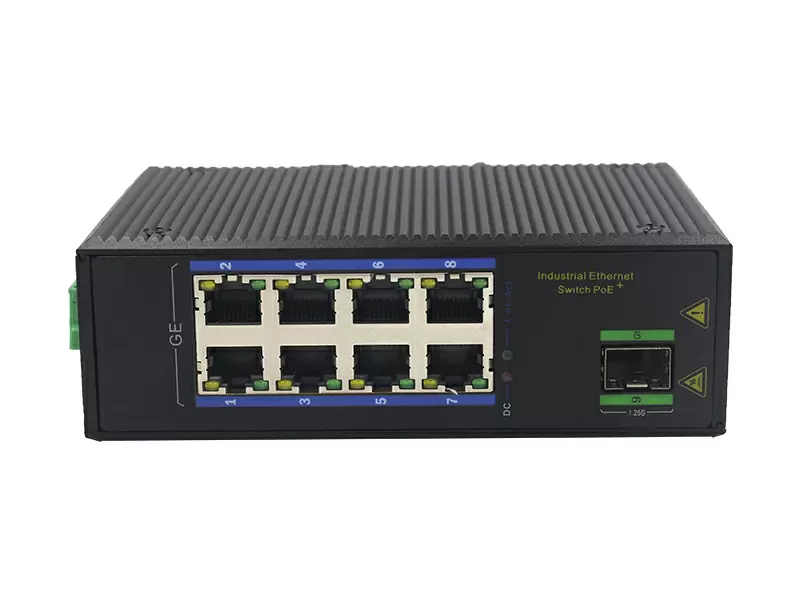

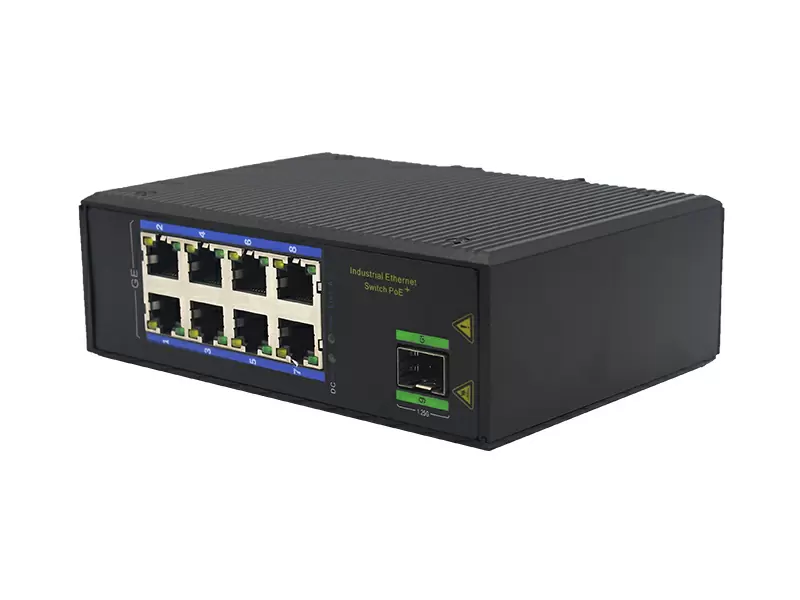

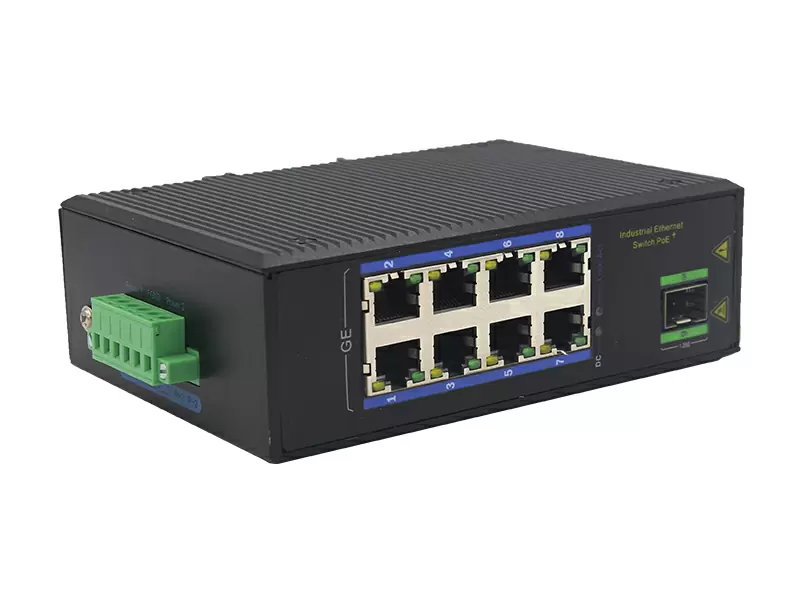

Made in China 8 port gigabit RJ45 ethernet switch+1G SFP uplink Industrial grade with 8 port PoE for OEM wholesaler importer distribution channel selling ZXD18GP-SFP

‹

›

‹

  • Made in China 8 port gigabit RJ45 ethernet switch+1G SFP uplink Industrial grade with 8 port PoE for OEM wholesaler importer distribution channel selling ZXD18GP-SFP
  • Made in China 8 port gigabit RJ45 ethernet switch+1G SFP uplink Industrial grade with 8 port PoE for OEM wholesaler importer distribution channel selling ZXD18GP-SFP
  • Made in China 8 port gigabit RJ45 ethernet switch+1G SFP uplink Industrial grade with 8 port PoE for OEM wholesaler importer distribution channel selling ZXD18GP-SFP
  • Made in China 8 port gigabit RJ45 ethernet switch+1G SFP uplink Industrial grade with 8 port PoE for OEM wholesaler importer distribution channel selling ZXD18GP-SFP

›


ZXD18GP Series

8-Port 10/100/1000BASE-TX+1-Port 1000Base-FX Industrial PoE Switch






Slim Type with more Practicability and Convenience

ZXD18GP an hardened 9-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 PoE +1-port 1000Base-Fx  delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.



The ZXD18GP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.



The ZXD18GP series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Specifications:

Model No.

ZXD18GP-SC2 / ZXD18GP-SC20 / ZXD18GP-SFP

10/100/1000Base-TX Port

8-Port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-8 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

ZXD18GP-SC2: 1 SC interface

ZXD18GP-SC20: 1 SC Interface

ZXD18GP-SFP: 1 SFP Slot



Fiber Port Type

ZXD18GP-SC2: SC / multi-mode ,up to distance 2km ;

ZXD18GP-SC20: SC / single-mode ,up to distance 20km ;

ZXD18GP-SFP: Vary on module



Optical Frequency

ZXD18GP-SC2: 1310nm

ZXD18GP-SC20: 1310nm

ZXD18GP-SFP:  Vary on module



Performance Specification

Bandwidth: 20Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:15Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±2kV; Data Port: ±1kV

IEC61000-4-5 (Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143.7*103.8*47.7mm

Weight

Product Weight: 0.56KG

Packing Weight: 0.66KG

Working Environment



Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
