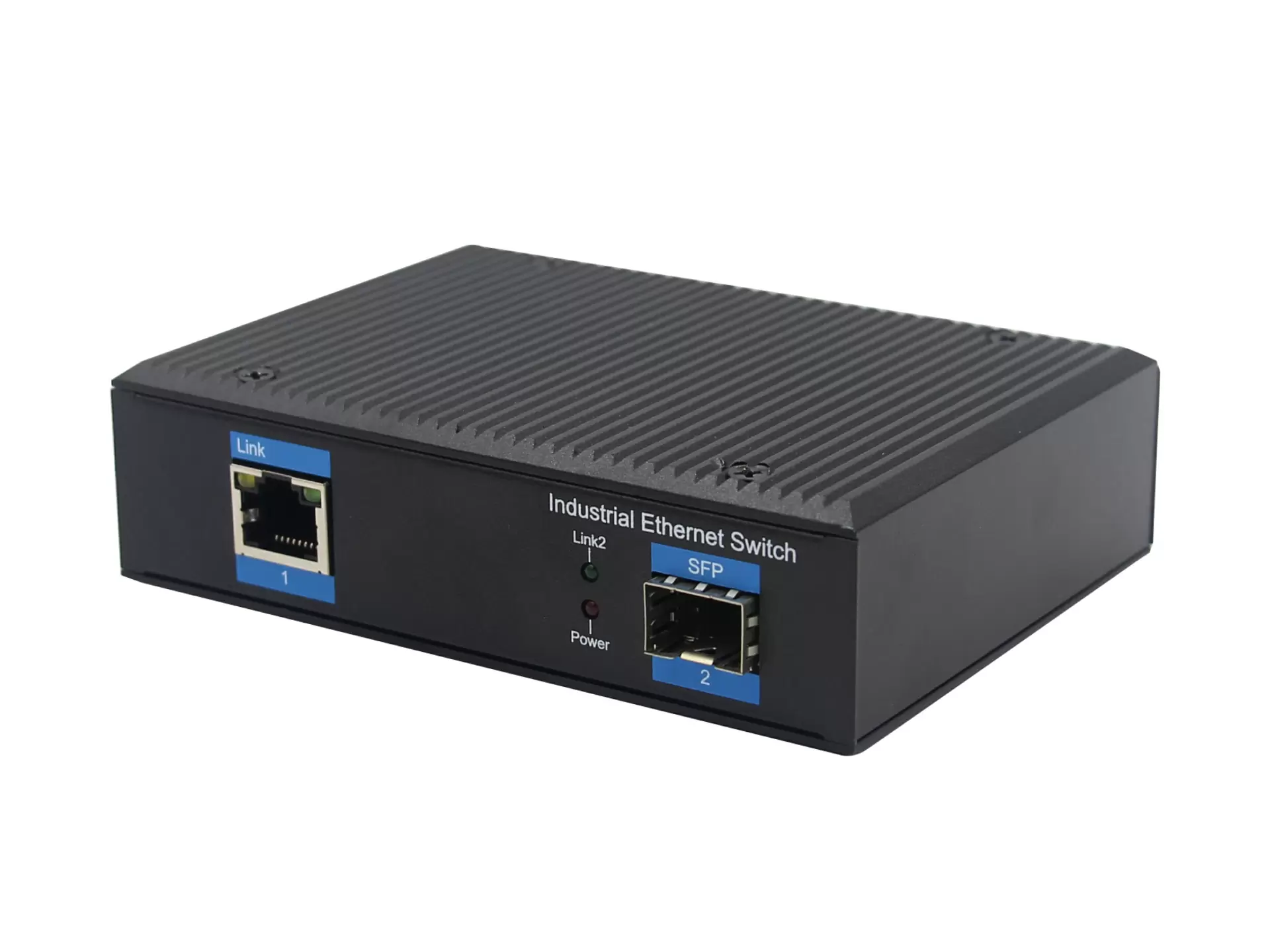

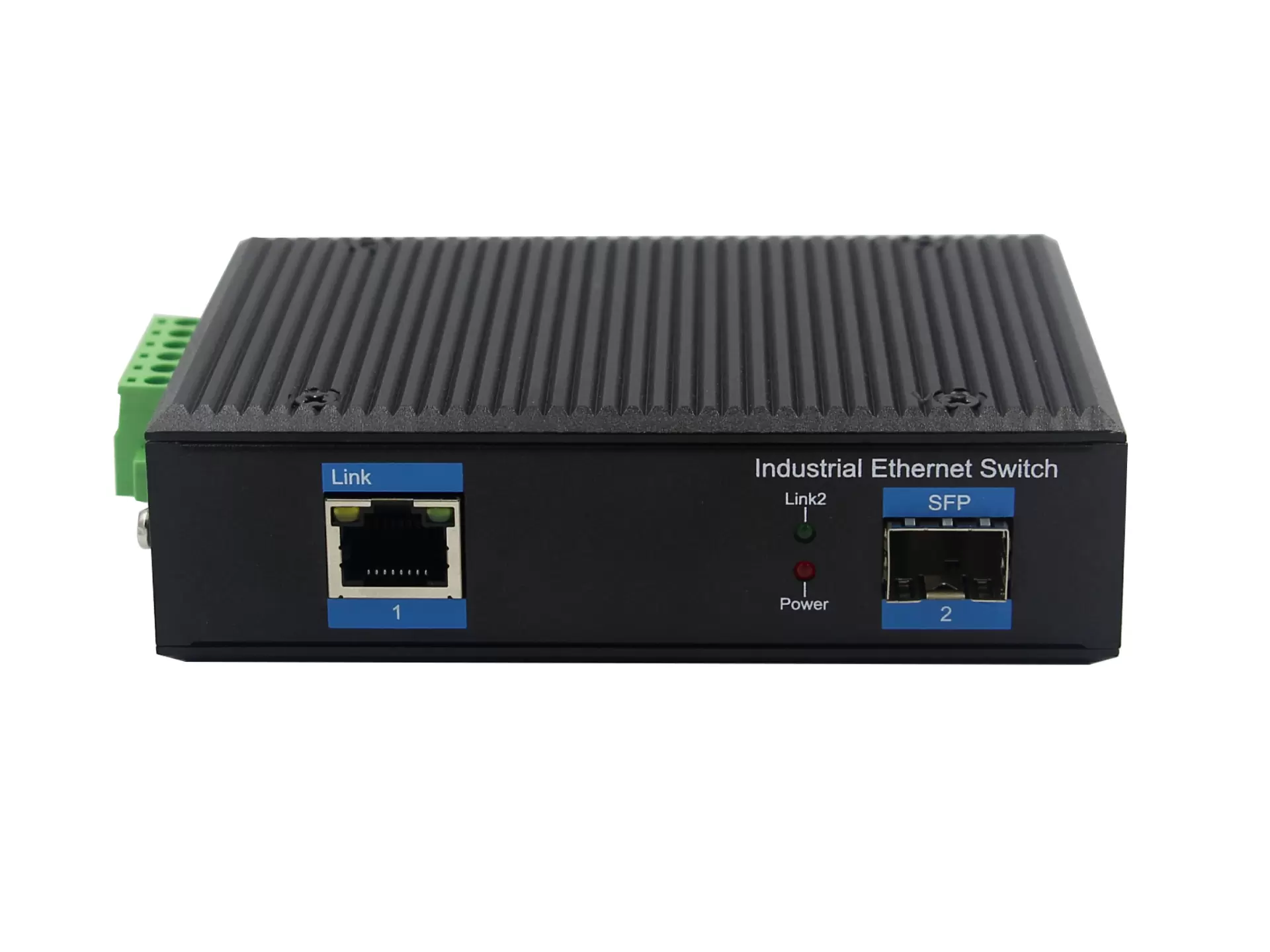

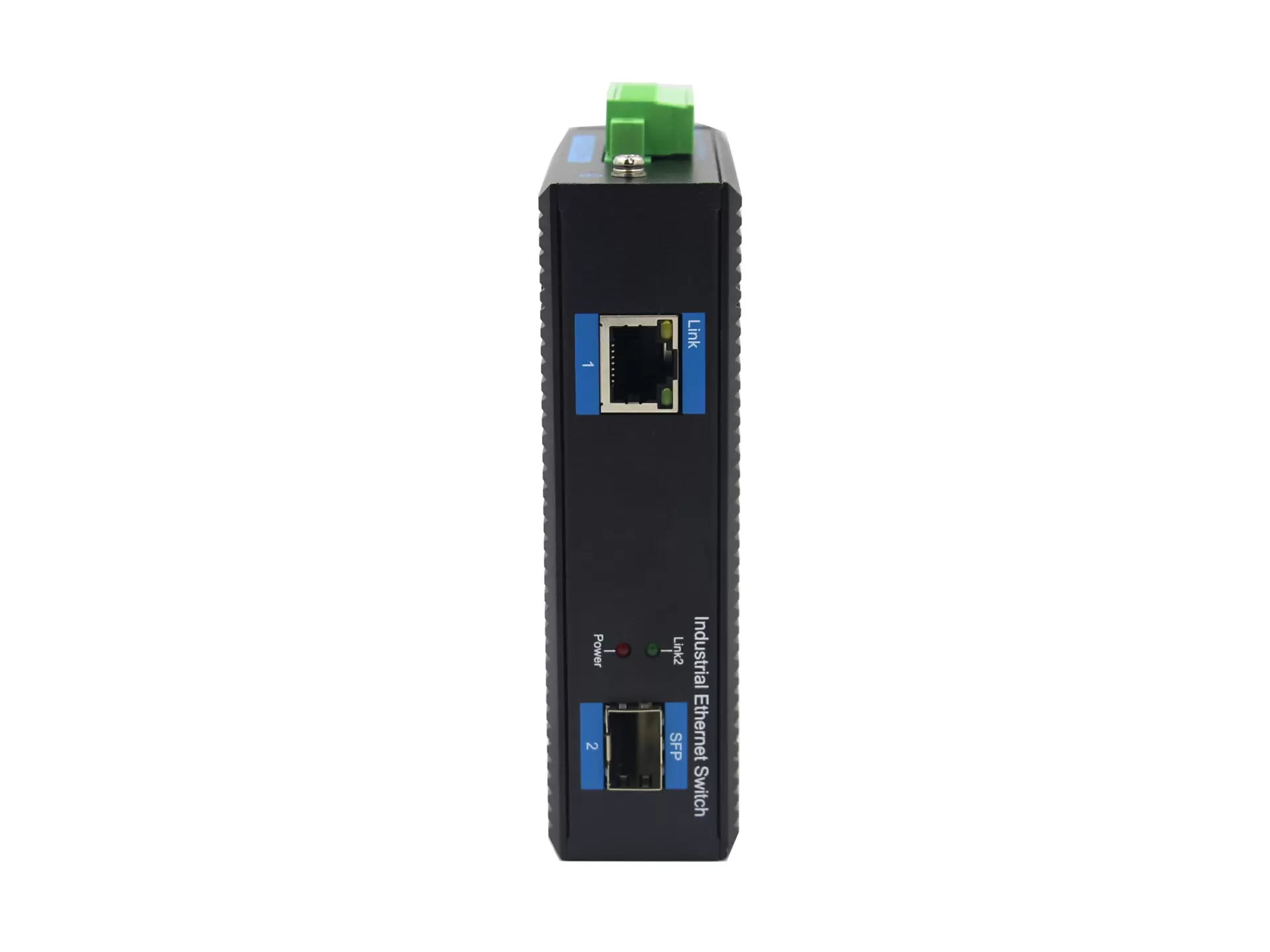

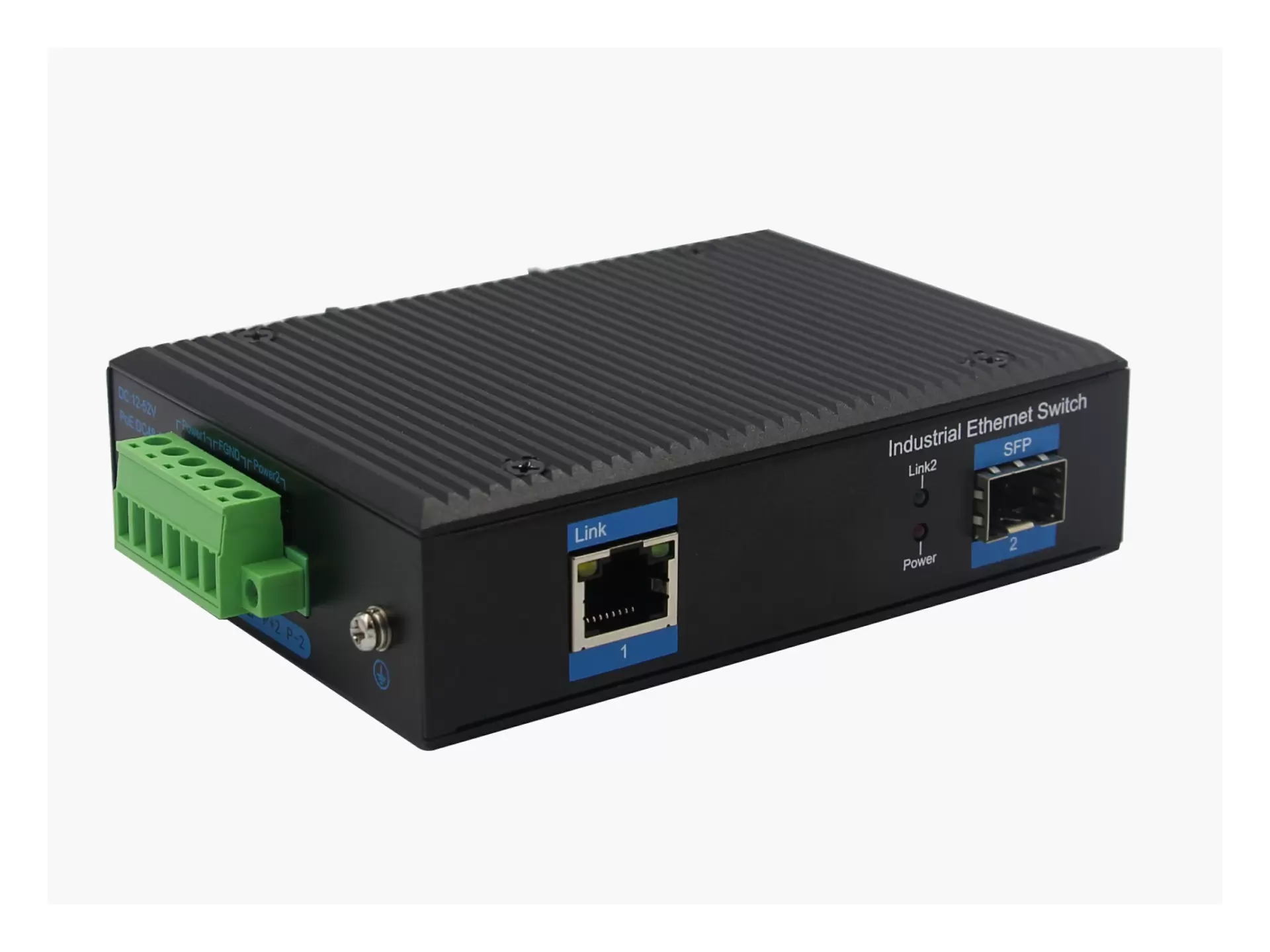

Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20

‹

›

‹

  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20
  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20
  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20
  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20
  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20
  • Industrial media convertor 1 port SFP optical + 1 port gigabit copper ethernet 30W PoE output dual DC48V input ZXD11GP-SFP ZXD11G-SFP ZXD11G-SC20

›


Distance extending Slim Type with more Practicability and Convenience


Yuhang 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXD11G-SC2, up to 20km with the ZXD11G-SC20 .



The ZXD11G series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40℃ to 85℃ allows the ZXD11G series to be placed in almost any difficult environment.

Yuhang ZXD11G 10/100/1000Base-TX to 1000Base-FX Industrial Media Converter series efficiently converts data between 10/100/1000Base-TX and 1000Base-FX network. The ZXD11G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The ZXD11G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs


Interface


• 1-port 10/100/1000Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

• 1-port 1000Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km


 Industrial conformance

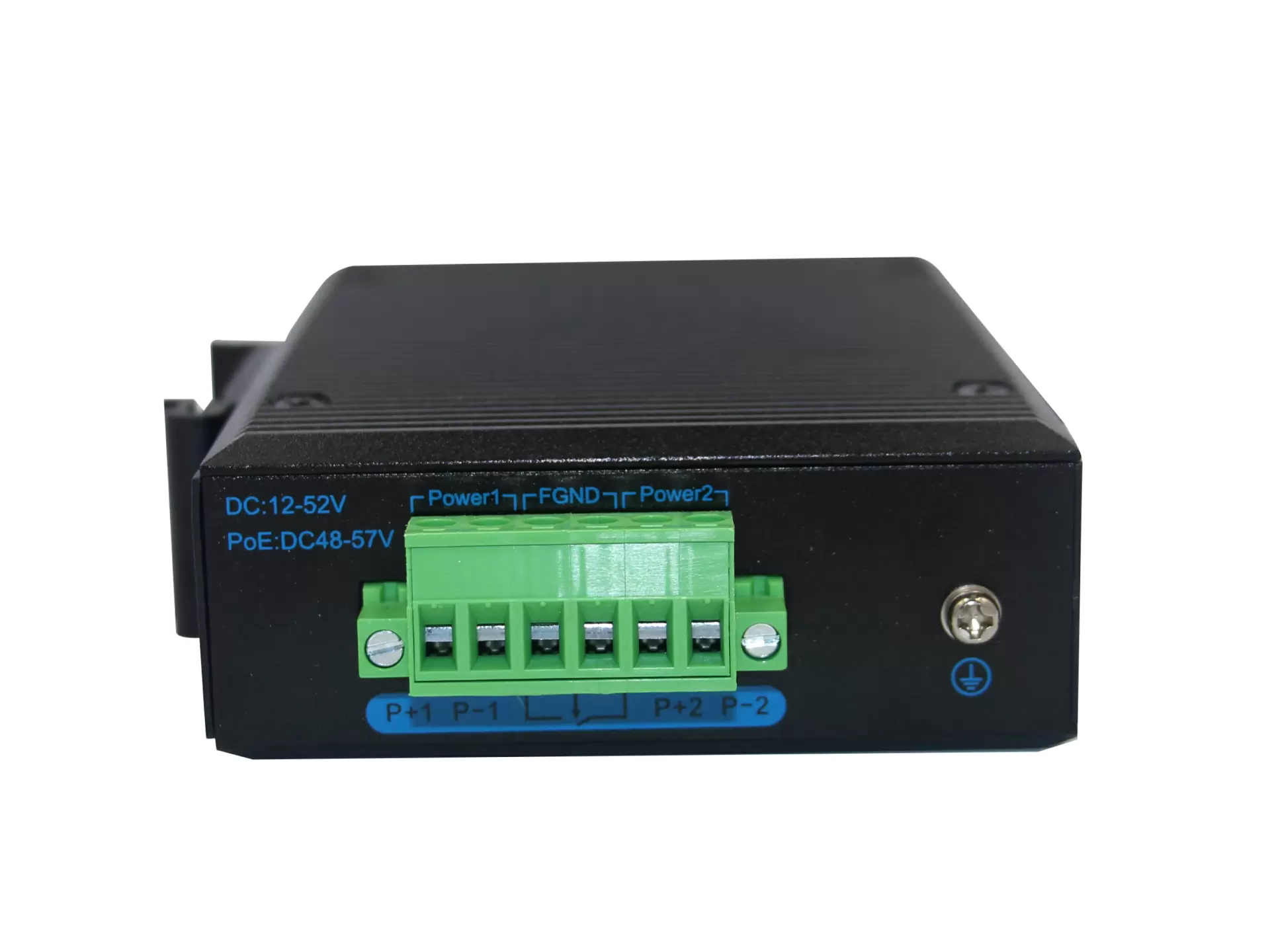

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

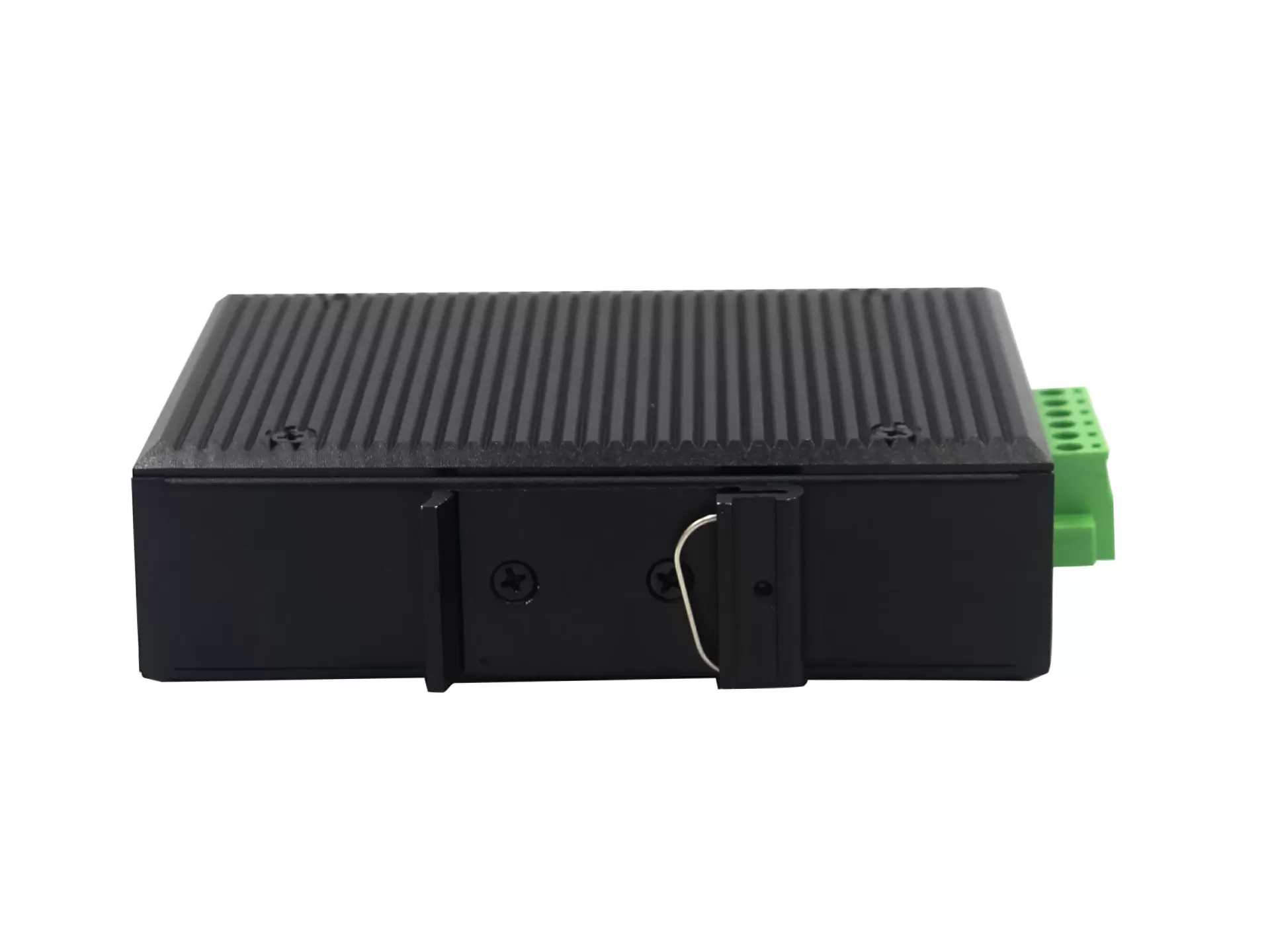

• DIN-rail and wall-mountable hardware design


Specifications:


Model No.ZXD11G-SC2 / ZXD11G-SC20 / ZXD11G-SFP
10/100/1000Base-TX Port1 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

ZXD11G-SC2: 1 SC interface

ZXD11G-SC20: 1 SC Interface

ZXD11G-SFP: 1 SFP Slot

 Fiber Port TypeZXD11G-SC2: SC / multi-mode ,up to distance 2km ;ZXD11G-SC20: SC / single-mode ,up to distance 20km ;ZXD11G-SFP: Vary on module
 Optical FrequencyZXD11G-SC2: 1310nmZXD11G-SC20: 1310nmZXD11G-SFP:  Vary on module
 Performance SpecificationBandwidth: 14GbpsPacket Buffer Memory:1.2MbitPacket Forwarding Rate:10.5MppsMAC Address Table: 2K
InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow
Power Input12 to 52V DC redundant power
Power Consumption< 3 watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)118 x 86 x 33.5 mm
WeightProduct Weight: 0.36KGPacking Weight: 0.46KG
Working Environment Working temperature: -40～85℃ ;  Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
