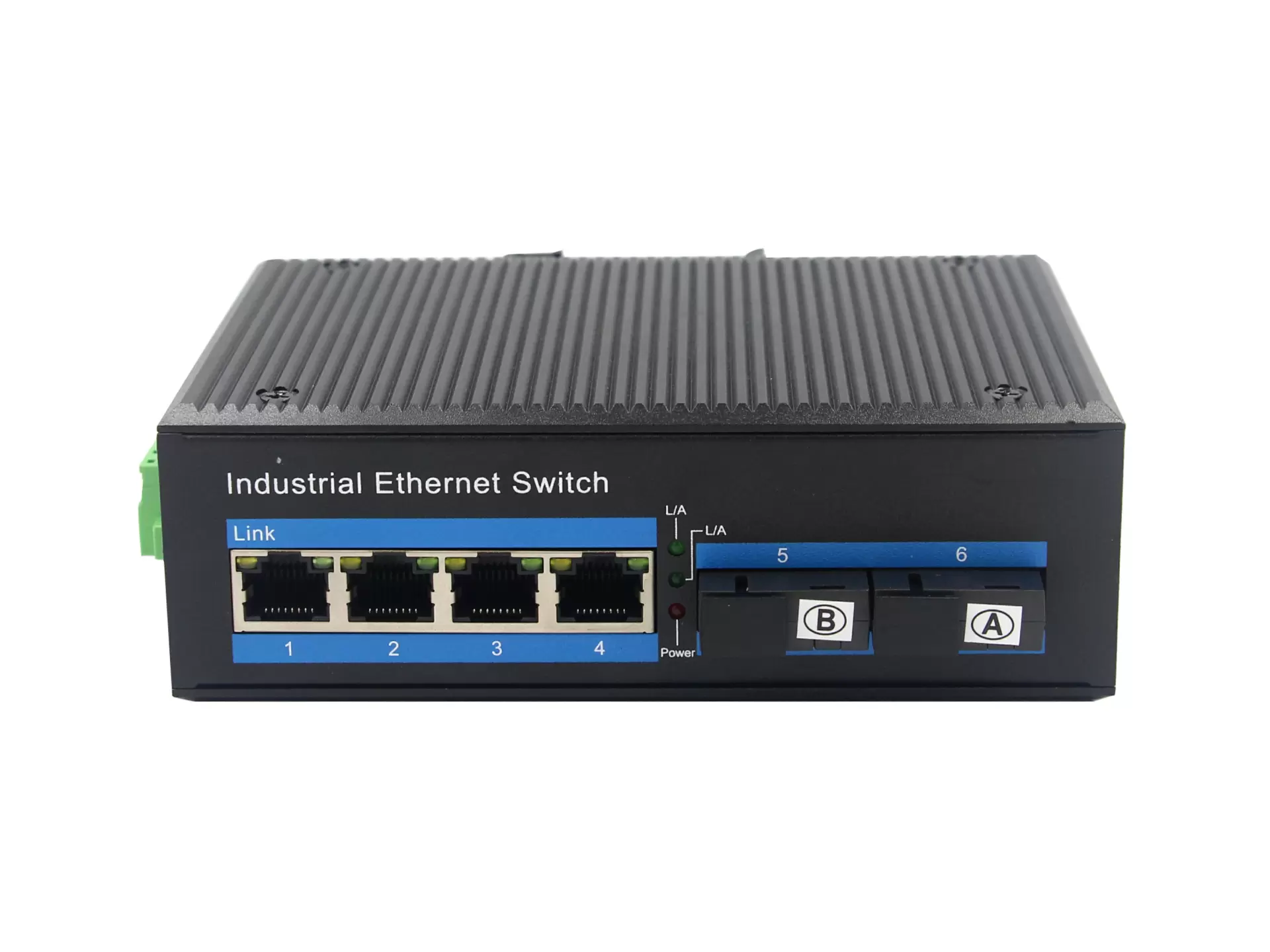

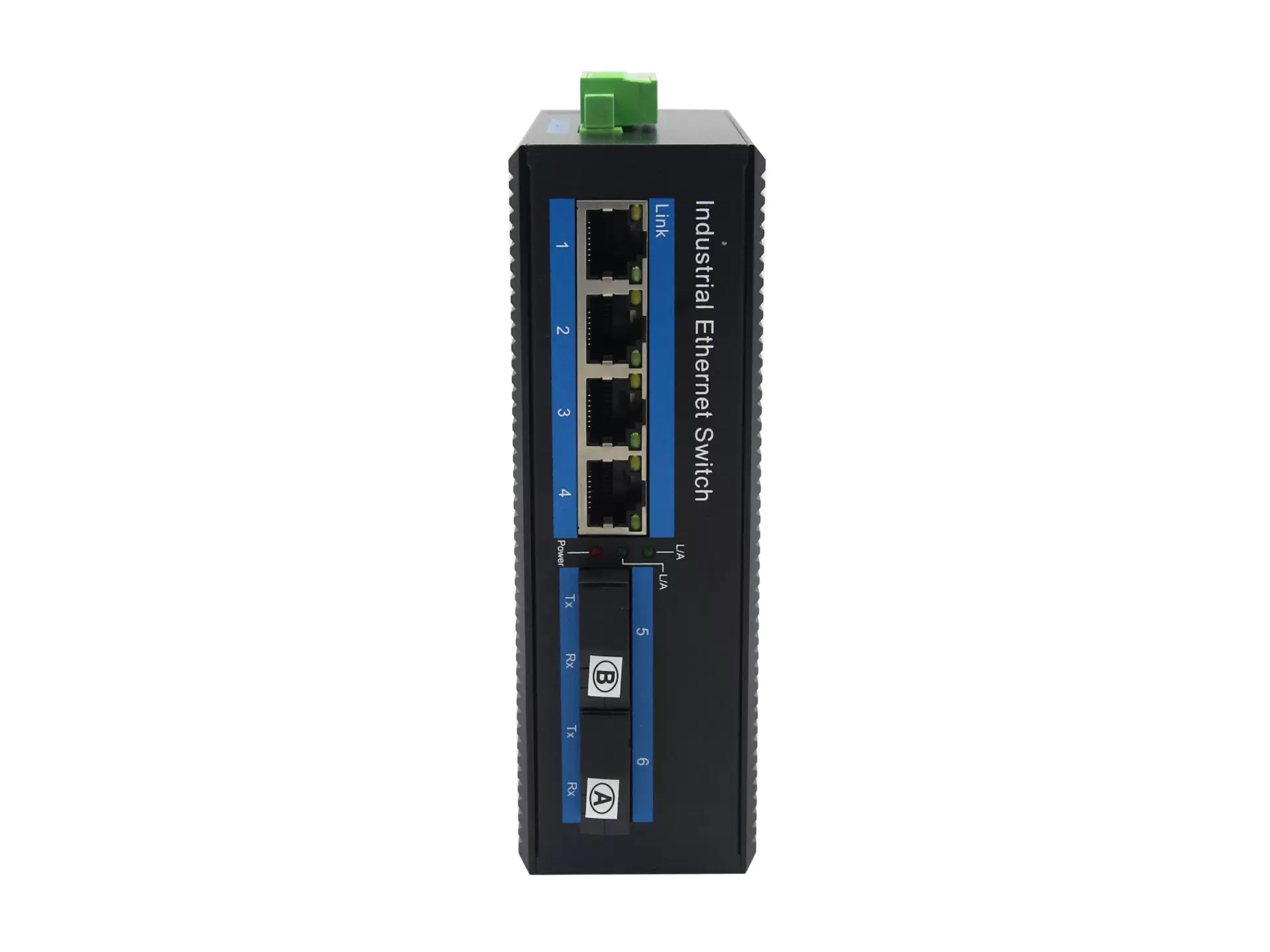

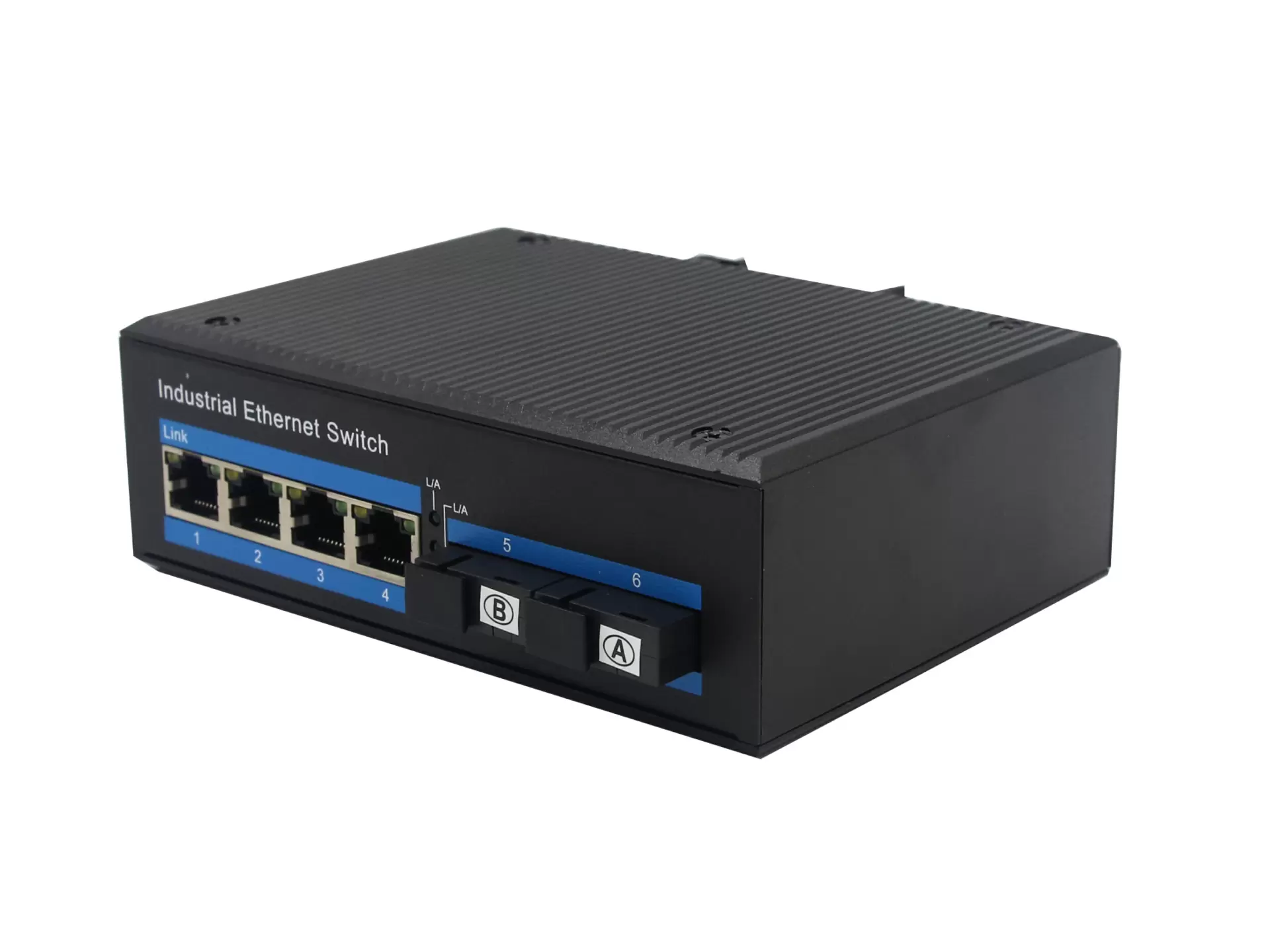

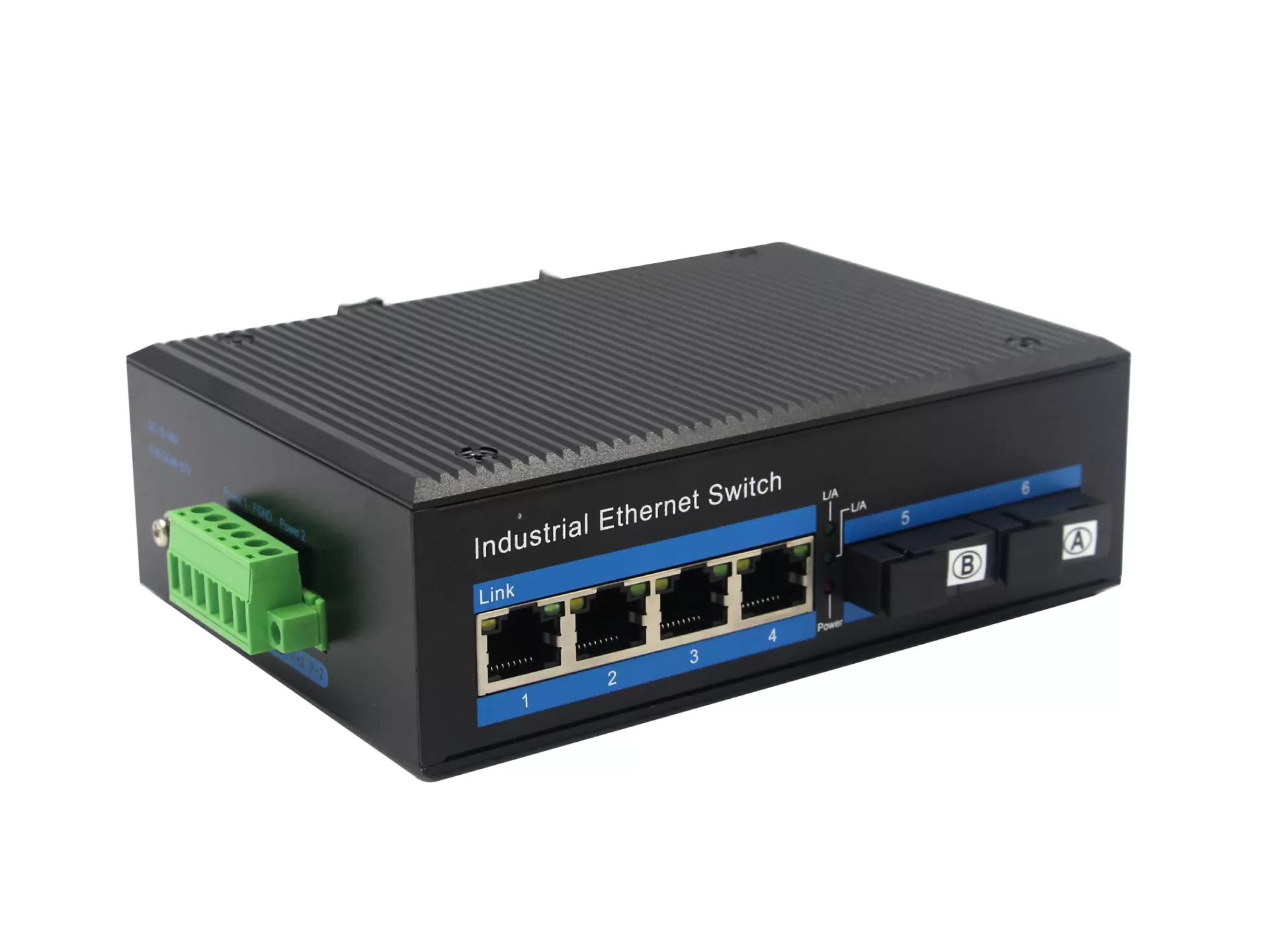

Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20

‹

›

‹

  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20
  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20
  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20
  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20
  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20
  • Industrial grade 100Mbps 4 port ethernet switch+ 2 port 1x9 fixed optical SC/ST/FC/LC connector -40 ~80 ℃ ZXR24FP-SC20

›


Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXR24F-SC2, up to 20km with the ZXR24F-SC20 .



The ZXR24F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40℃ to 85℃ allows the ZXR24F series to be placed in almost any difficult environment.

Yuhang ZXR24F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The ZXR24F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

The ZXR24F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Interface


• 4-port 10/100Base-Tx RJ45 with auto  negotiation and auto-MDI/ MDI-X  function

• 2-port 100Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km


Industrial conformance

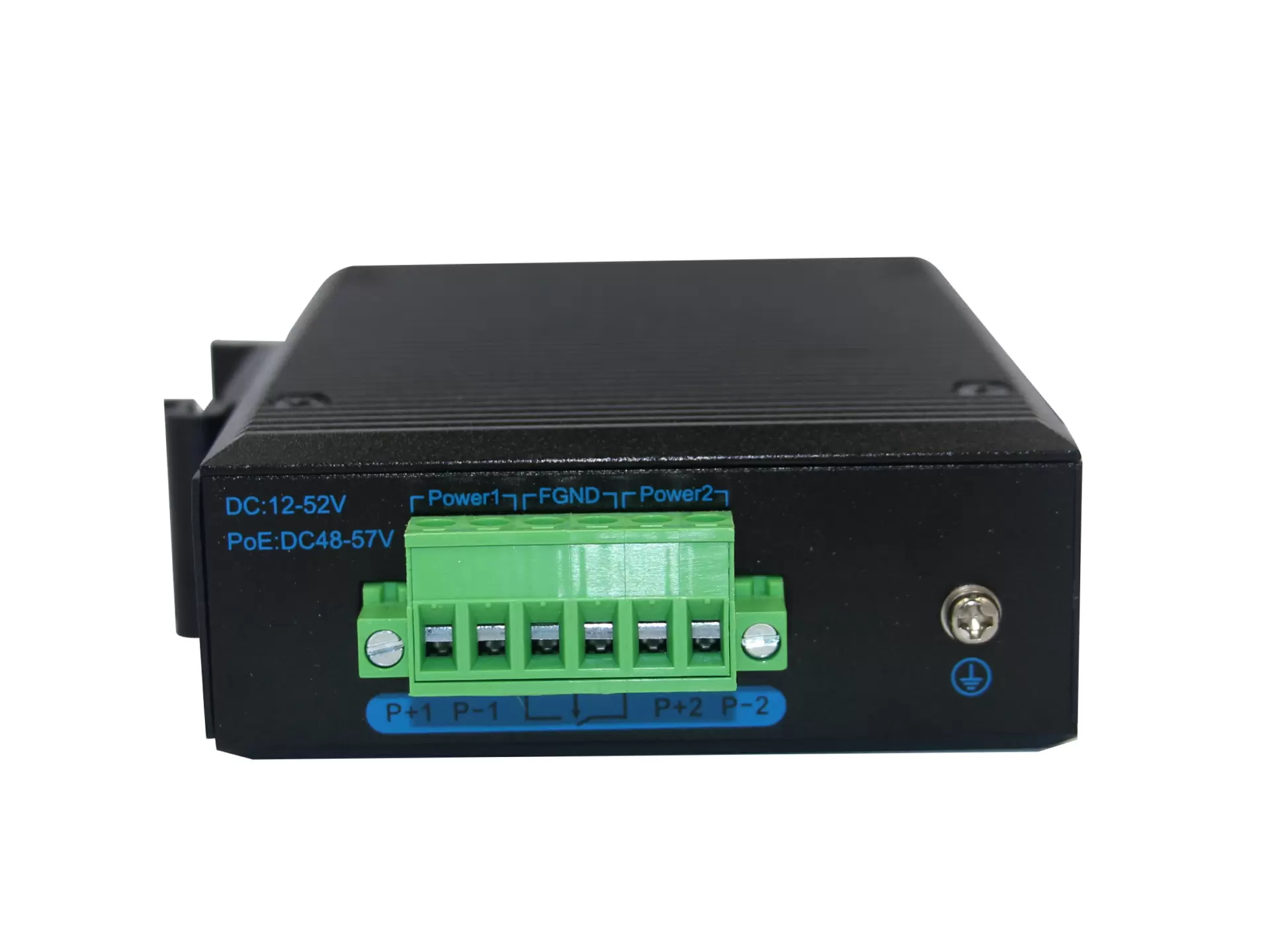

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

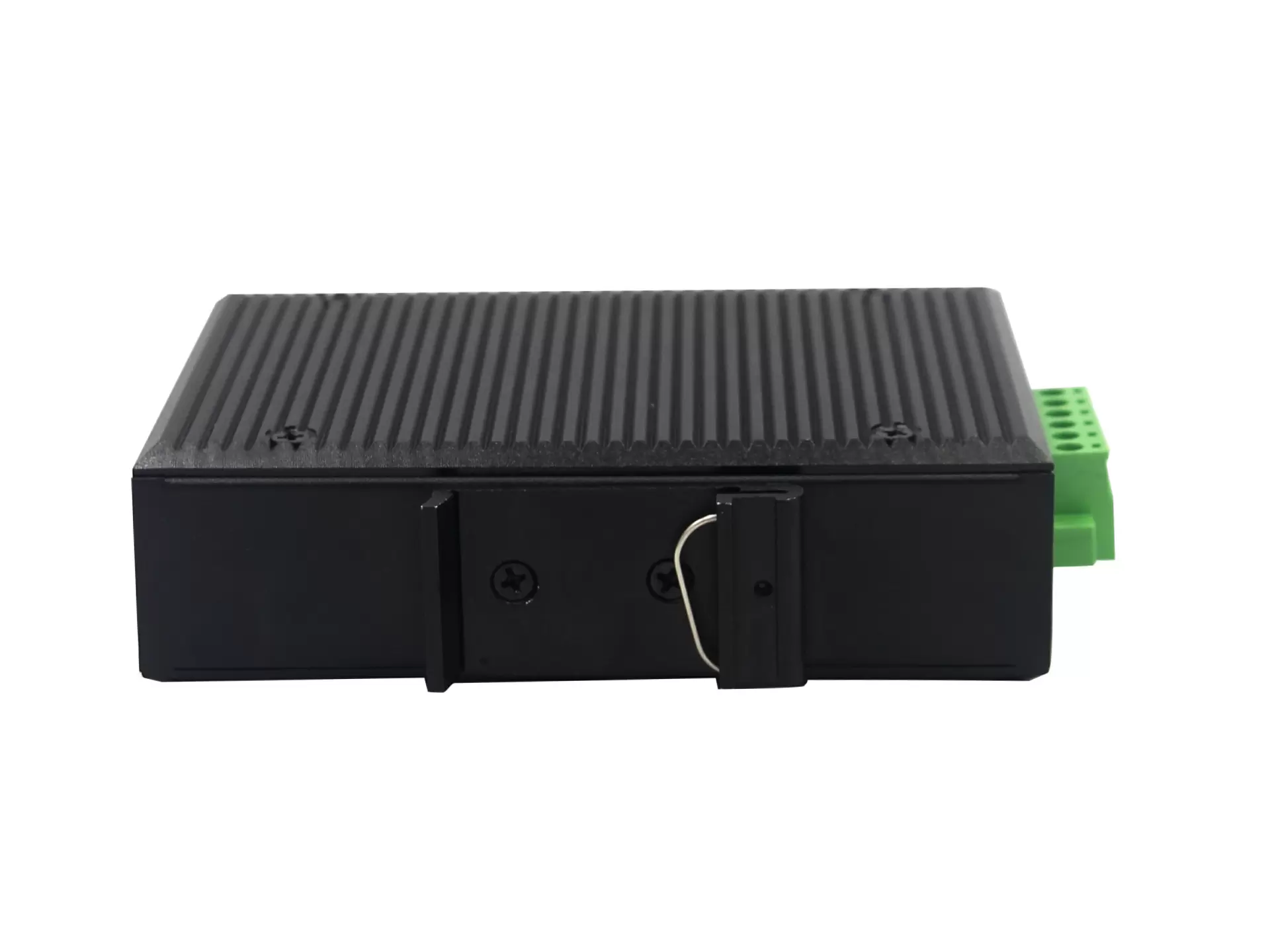

• DIN-rail and wall-mountable hardware design


Specifications:


Model No.ZXR24F-SC2 / ZXR24F-SC20
10/100Base-TX Port4 port RJ-45 auto-MDI / MDI-X
100Base-FX Port

ZXR24F-SC2: 2 SC interface

 ZXR24F-SC20: 2 SC Interface

 Fiber Port TypeZXR24F-SC2: SC / multi-mode ,up to distance 2km ;ZXR24F-SC20: SC / single-mode ,up to distance 20km
 Optical Frequency

ZXR24F-SC2: 1310n

mZXR24F-SC20: 1310nm

 Performance SpecificationBandwidth: 1.6GbpsPacket Buffer Memory:1MbitPacket Forwarding Rate:1.2MppsMAC Address Table: 2K
InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow
Power Input12 to 52V DC redundant power
Power Consumption< 3 watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance
MTBF>300,000hours
Dimensions (W x D x H)143.7 x 103 x 44.2 mm
WeightProduct Weight: 0.56KGPacking Weight: 0.66KG
Working Environment Working temperature: -40～85℃ ;  Storage temperature: -40～85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
