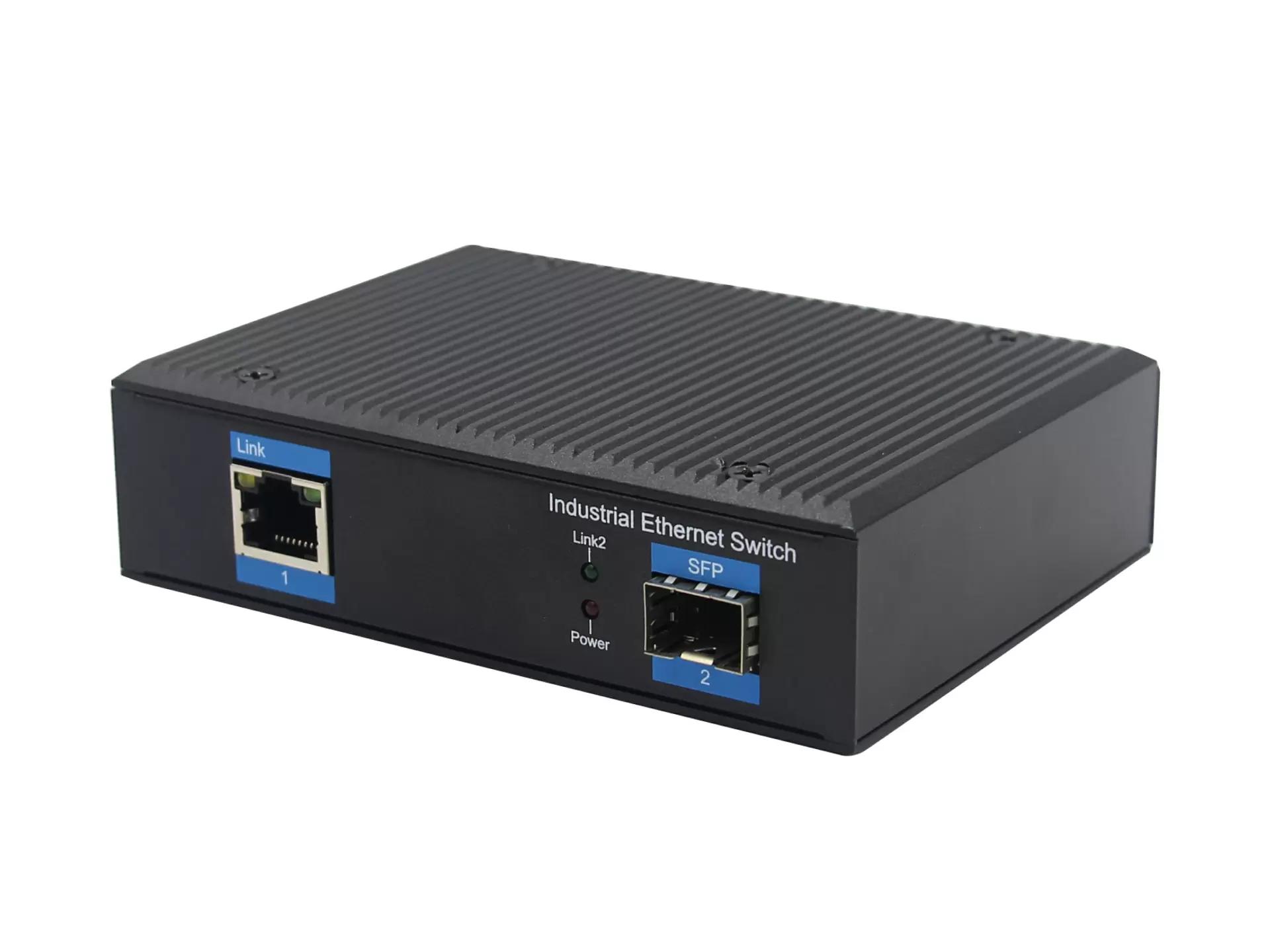

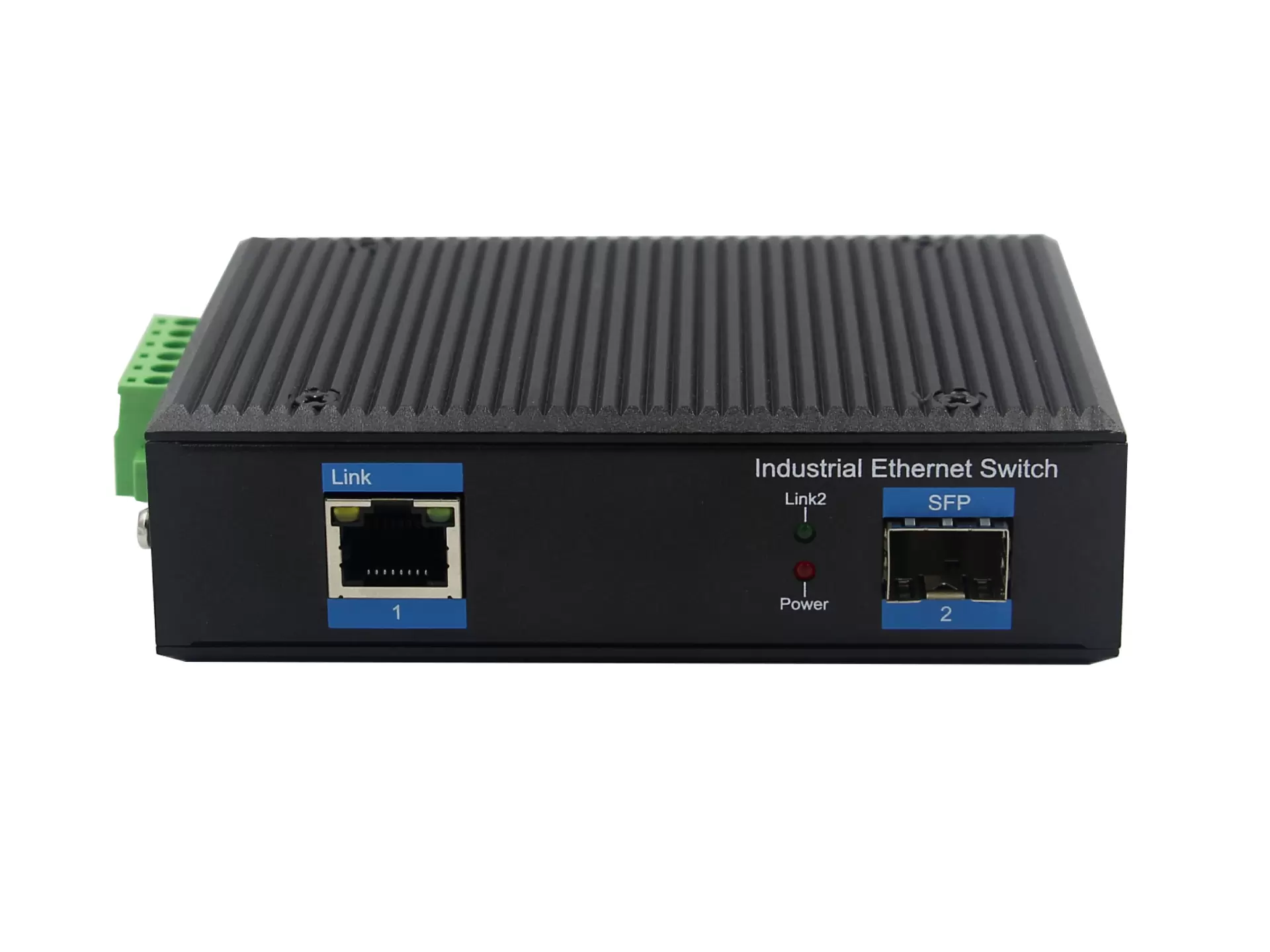

Industrial grade media convertor 1 port 10/100Mbps + 1 port SFP uplink or 1 port fixed optical fiber 1*9 SC/ST/FC connector 20Km dual power supply in, max30W PoE output for each copper,ZXR11FP. ZXR11F

Distance extending Slim Type with more Practicability and Convenience

Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXR11F-SC2, up to 20km with the ZXR11F-SC20 .

The ZXR11F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40℃ to 85℃ allows the ZXR11F series to be placed in almost any difficult environment.

Yuhang ZXR11F 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The ZXR11F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The ZXR11F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.


• 1-port 10/100Base-Tx RJ-45 with auto  negotiation and auto-MDI/ MDI-X  function

• 1-port 100Base-Fx interface SC/FC/ST/SFP

• Multi-Mode up to 2km

• Single-Mode up to 20km/40km/60km/80km

 Industrial conformance

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design


Model No.ZXR11F-SC2 / ZXR11F-SC20 / ZXR11F-SFP
10/100Base-TX Port1 port RJ-45 auto-MDI / MDI-X
100Base-FX Port

ZXR11F-SC2: 1 SC interface

ZXR11F-SC20: 1 SC Interface

ZXR11F-SFP: 1 SFP Slot

 Fiber Port TypeZXR11F-SC2: SC / multi-mode ,up to distance 2km ;ZXR11F-SC20: SC / single-mode ,up to distance 20km ;ZXR11F-SFP: Vary on module
 Optical FrequencyZXR11F-SC2: 1310nmZXR11F-SC20: 1310nmZXR11F-SFP:  Vary on module
 Performance SpecificationBandwidth: 1.6GbpsPacket Buffer Memory:1MbitPacket Forwarding Rate:1.2MppsMAC Address Table: 2K
InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
 LED IndicatorPower: RedFiber: Link 2(Green)Ethernet: Yellow
Power Input12 to 52V DC redundant power
Power Consumption< 3 watts
Surge protection±4KV
 Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T;  IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables10BASE-T: Cat3,4,5 UTP(≤100 meter)     100BASE-TX: Cat5 or later UTP(≤10meter)1000BASE-TX: Cat6 or later UTP(≤100 meter)
  Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)IEC61000-4-3 (RS): 10V/m (80~1000MHz)IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kVIEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
CertificationCE FCC Rohs compliance

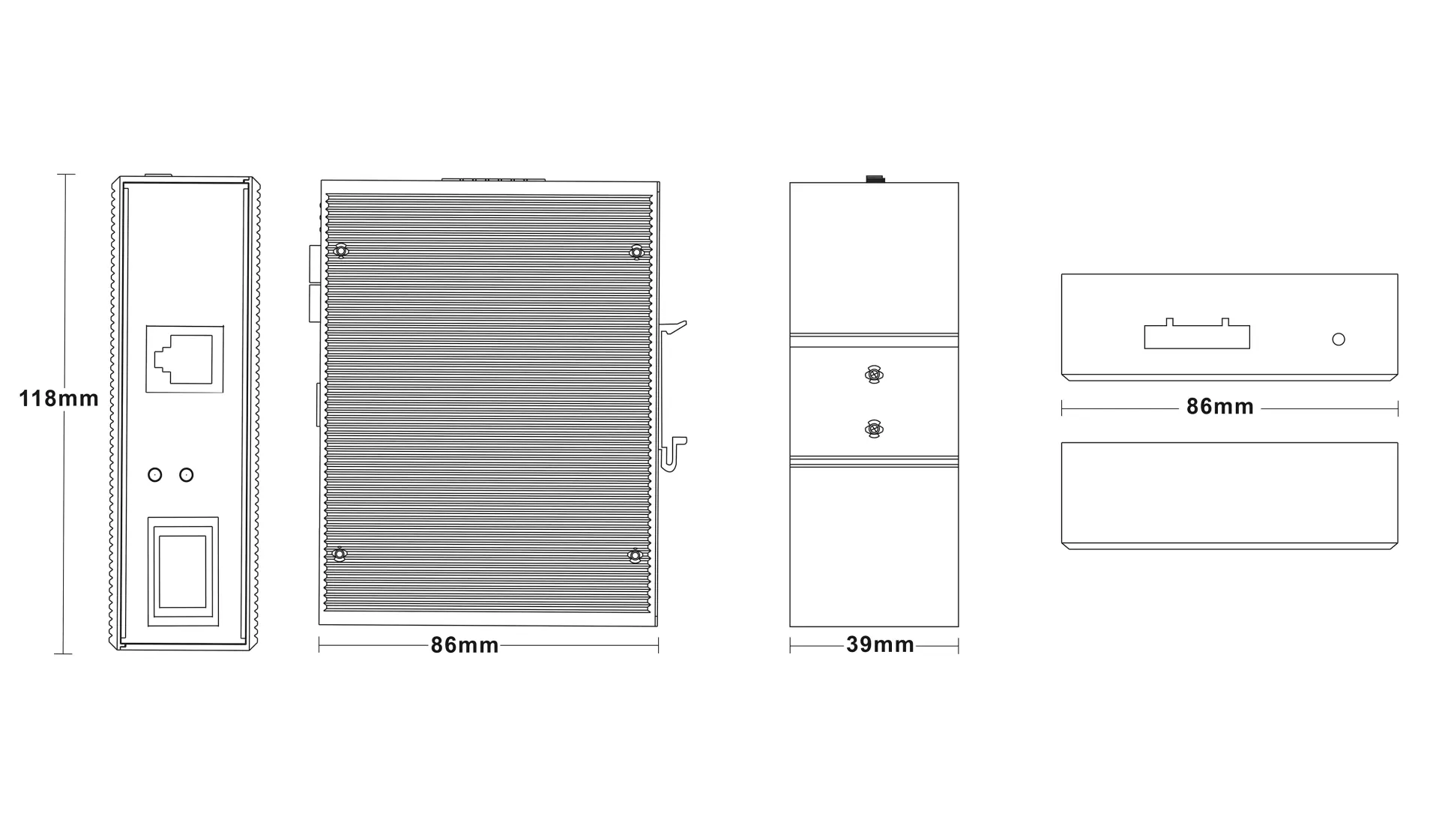

Dimensions (W x D x H)118 x 86 x 33.5 mm
WeightProduct Weight: 0.36KGPacking Weight: 0.46KG
Working Environment Working temperature: -40~85℃ ;  Storage temperature: -40~85℃Relative Humidity: 5%~95 %( no condensation)
Warranty1-year replacement with new item; 3-years for main parts.
