ZXR08F an hardened 8-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/100BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.

The ZXR08F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The ZXR08F series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Interface:

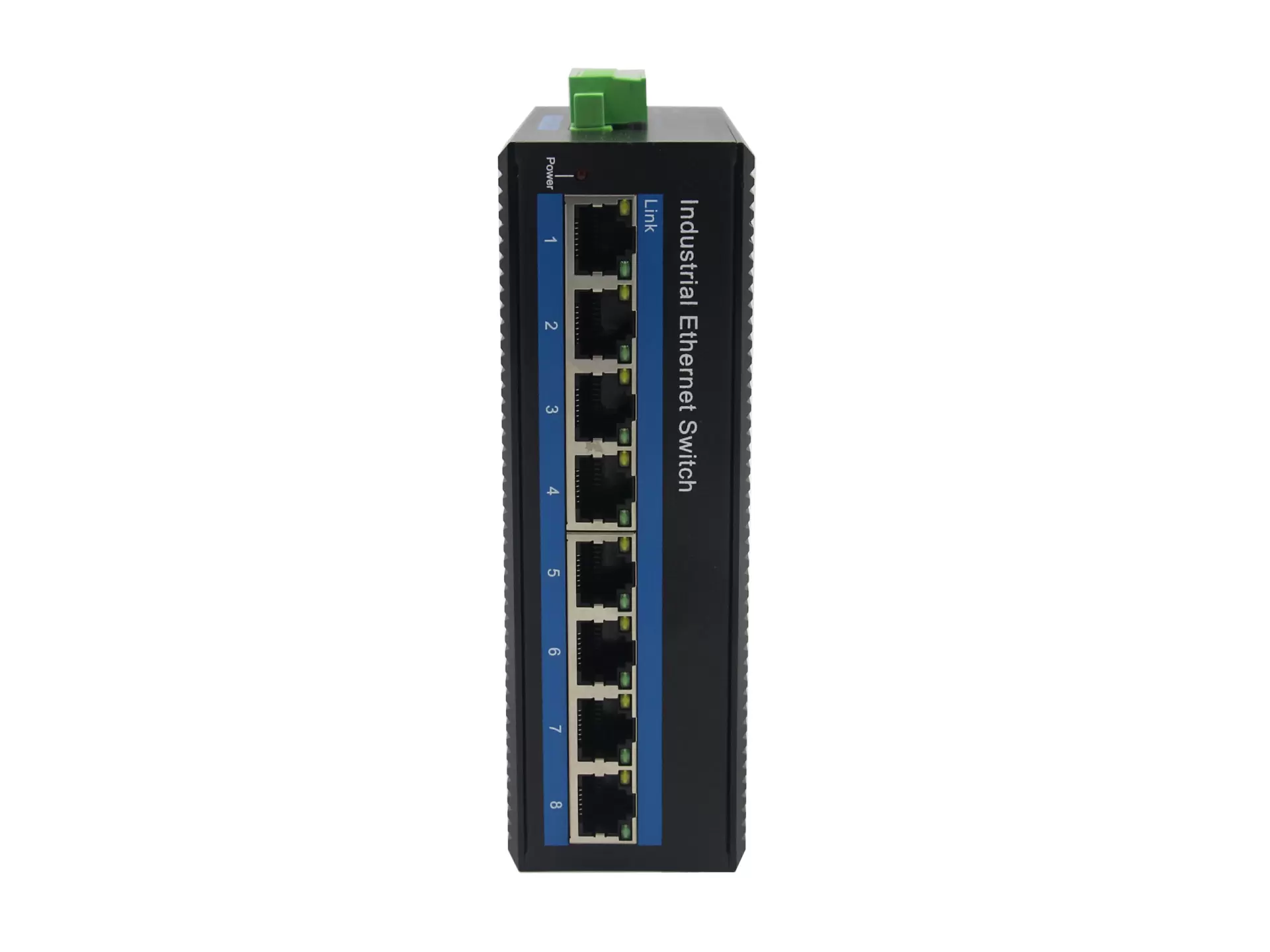

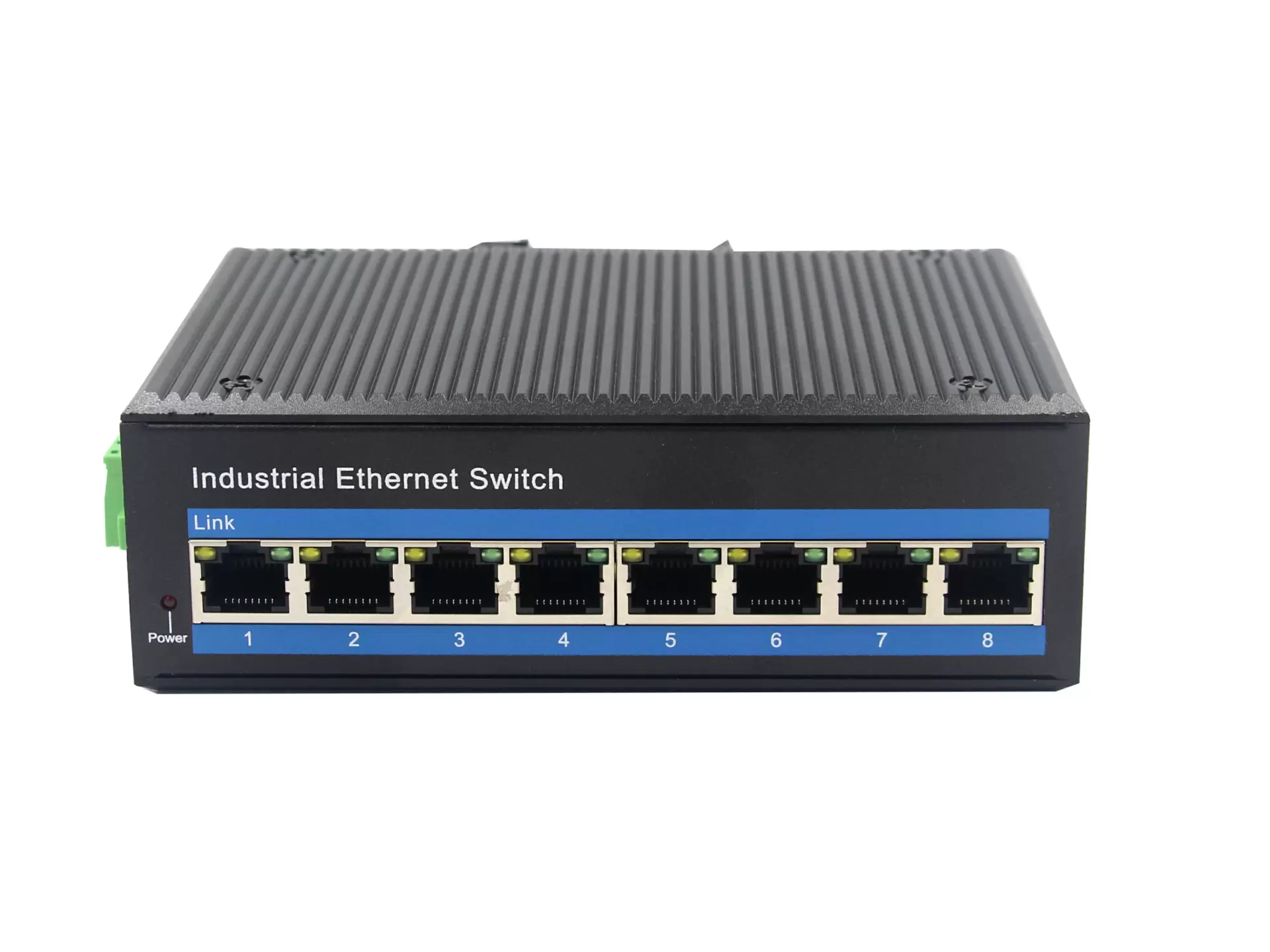

• 8-port 10/100Base-Tx RJ-45 with auto  negotiation and auto-MDI/MDI-X function

 Industrial conformance

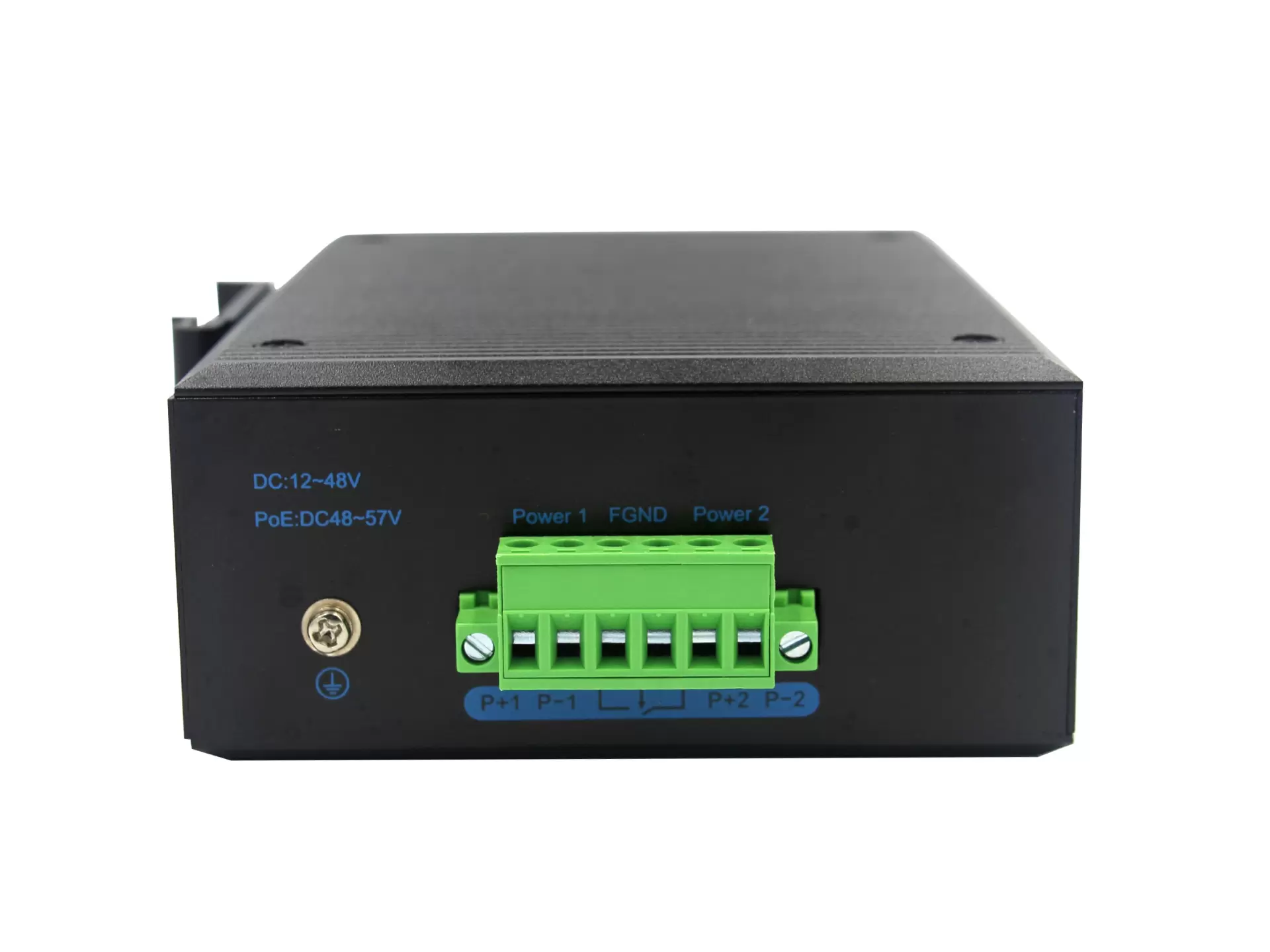

• 12V to 52V DC, redundant power input

• -40℃ to 85℃ operating temperature

• IP40 Aluminum housing

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design

Specifications:
