8 Port gigabit PoE+4G SFP uplink L2 managed Industrial grade PoE switch IP40 rugged aluminun case - project best choice ZX48GSP-M-SFP ,ZX48GS-M-SFP


ZX48GSP-M-SFP

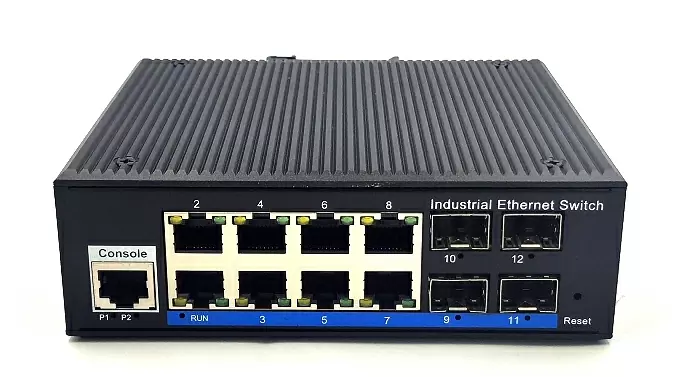

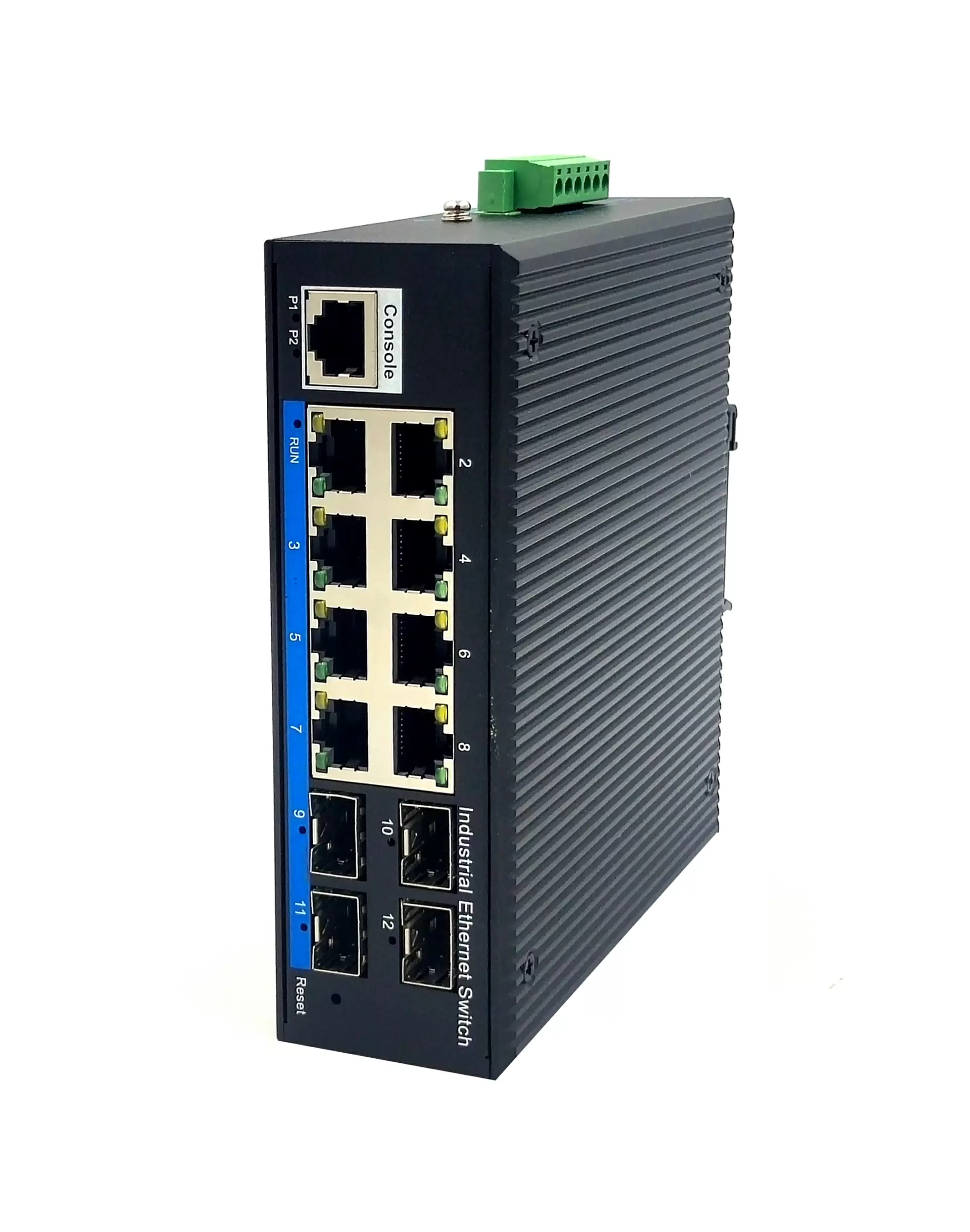

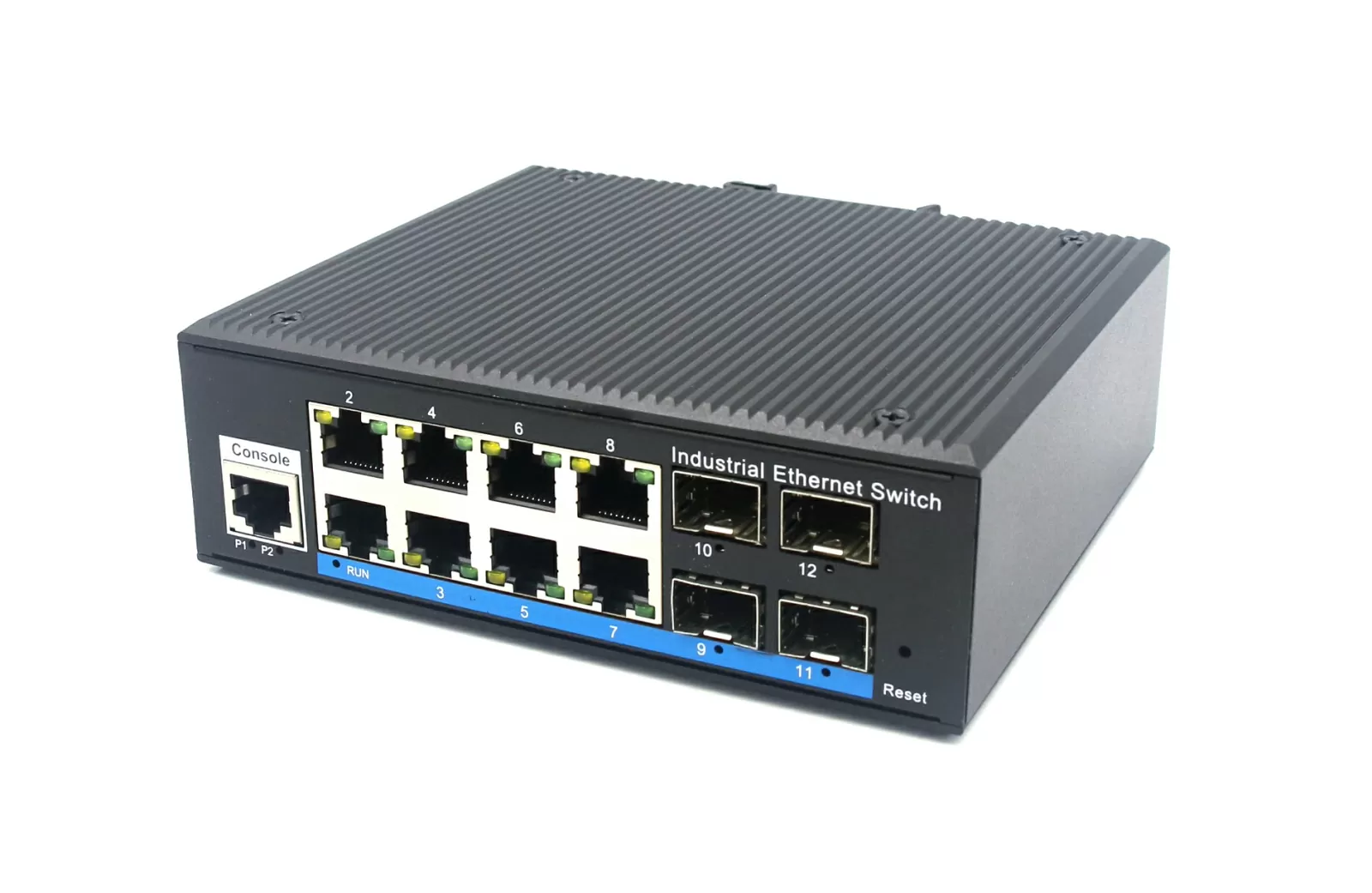

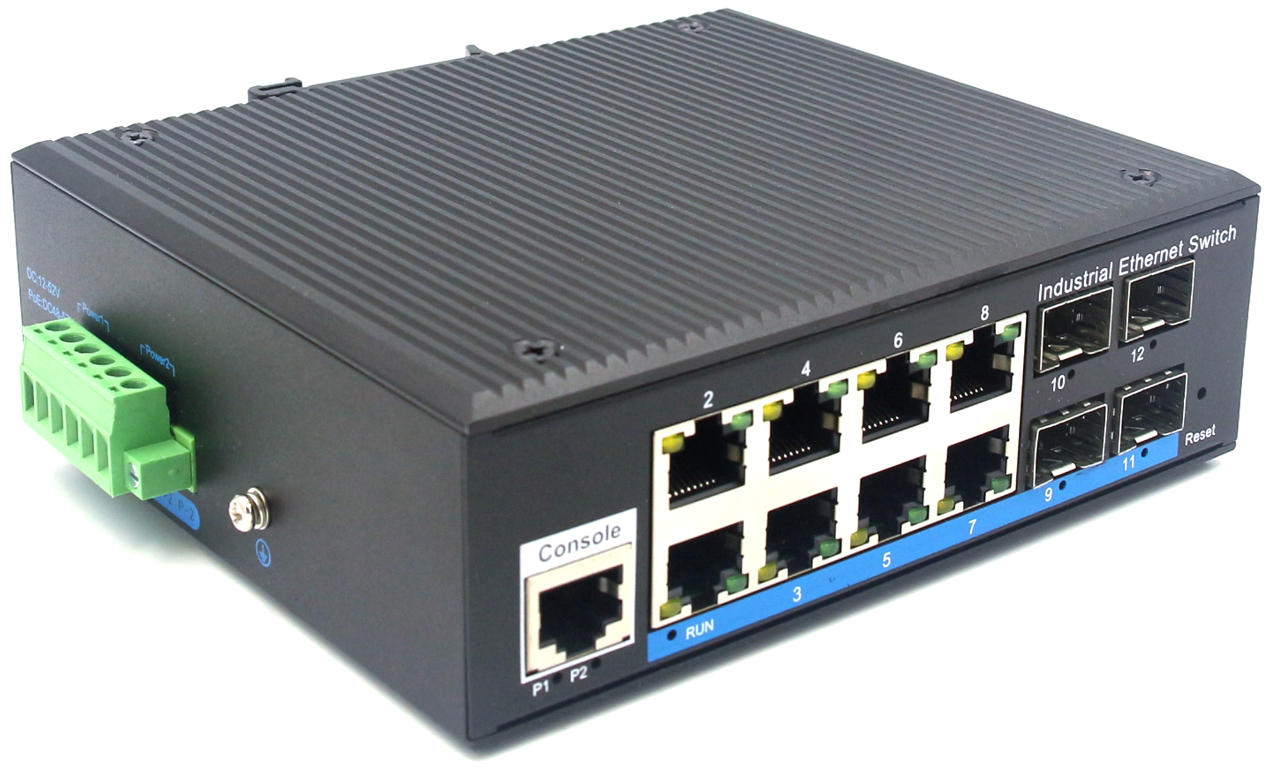

8-port 10//100/1000BASE-TX+4G SFP Managed Industrial PoE Switch

ZX48GSP-M-SFP an hardened 12-port Industrial PoE Switch, provides non-blocking

wire-speed performance in harsh industrial environment. It also provides 8-port 10/100BASE-TX RJ45 PoE +4G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.


The ZX48GSP-M-SFP provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.




The ZX48GSP-M-SFP is packaged in a compact IP40 case that allows either DIN rail or panel

mounting to have efficient usage of cabinet space. It provides an integrated power supply

with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible

polarity 48V DC to 57V DC power supply inputs for high availability applications requiring

dual or backup power inputs.




Specifications:

Model No.

ZX48GSP-M-SFP

10/100/1000Base-TX Port

8-Port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-8 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

4G SFP Slot



Performance Specification

Bandwidth: 56Gbps
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate: 41.6Mpps

MAC Address Table: 8K

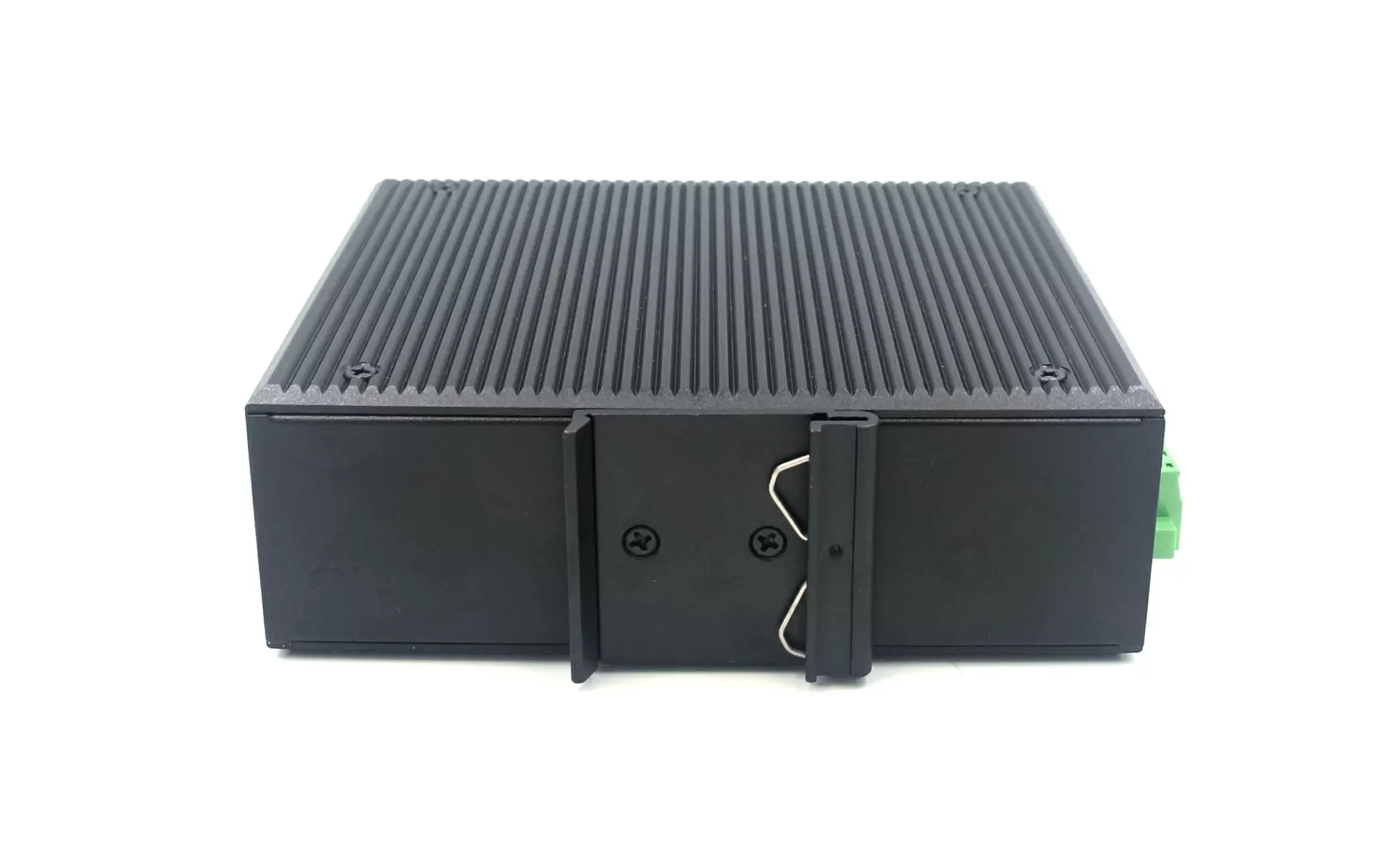

Installation

DIN rail

Maximum Frame Size

10240bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 slim type metal case



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

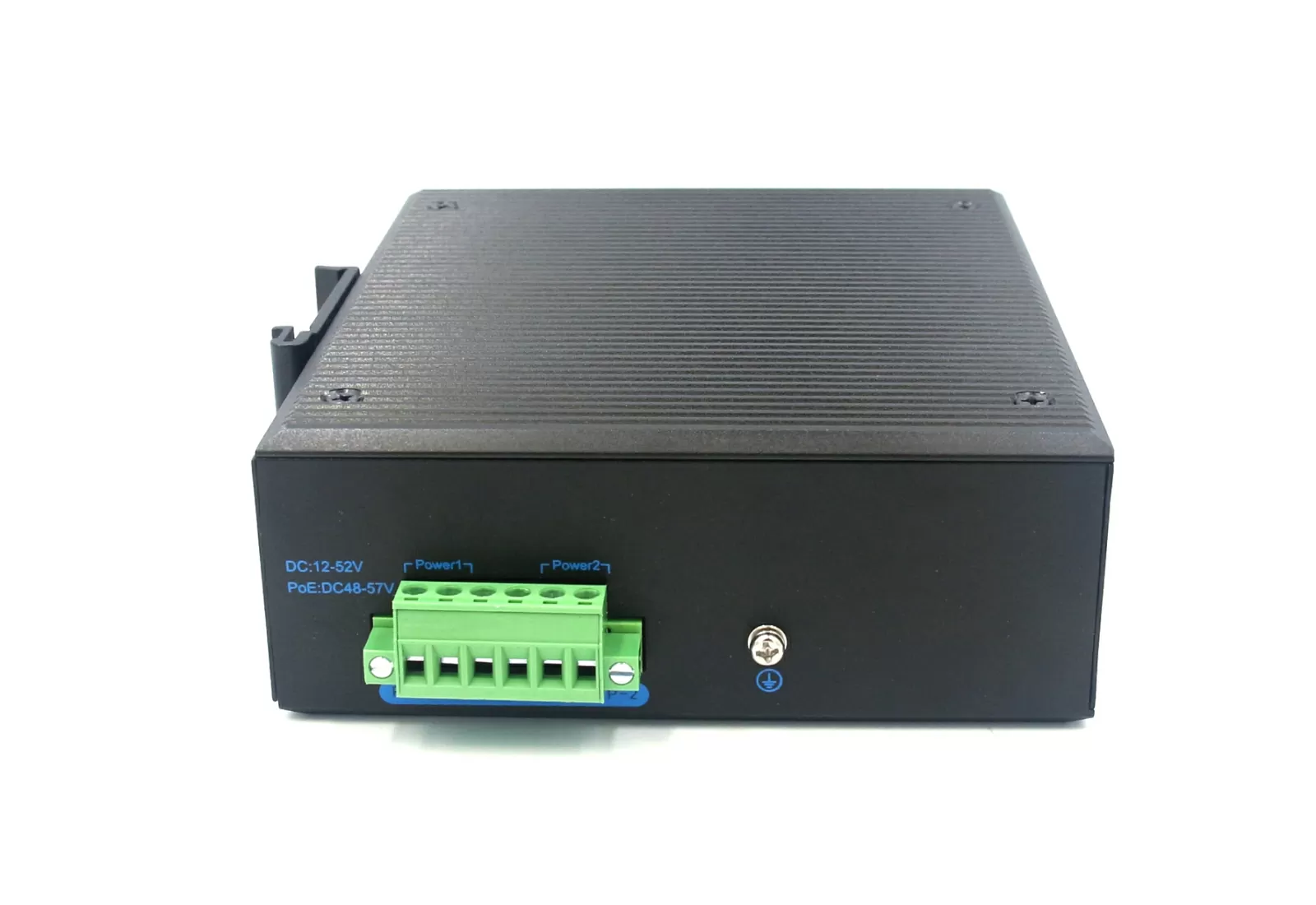

Power Input

48 to 57V DC redundant power

Power Consumption

< 10W

Protection

ESD (Ethernet): 6KV DC

Surge (Power): 6KV DC



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143×125×48mm

Weight

Product Weight: 1.25KG

Packing Weight: 1.4KG

Working Environment



Working temperature: -4080 ;

Storage temperature: -4080

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
