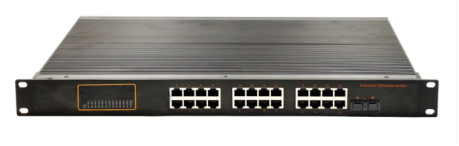

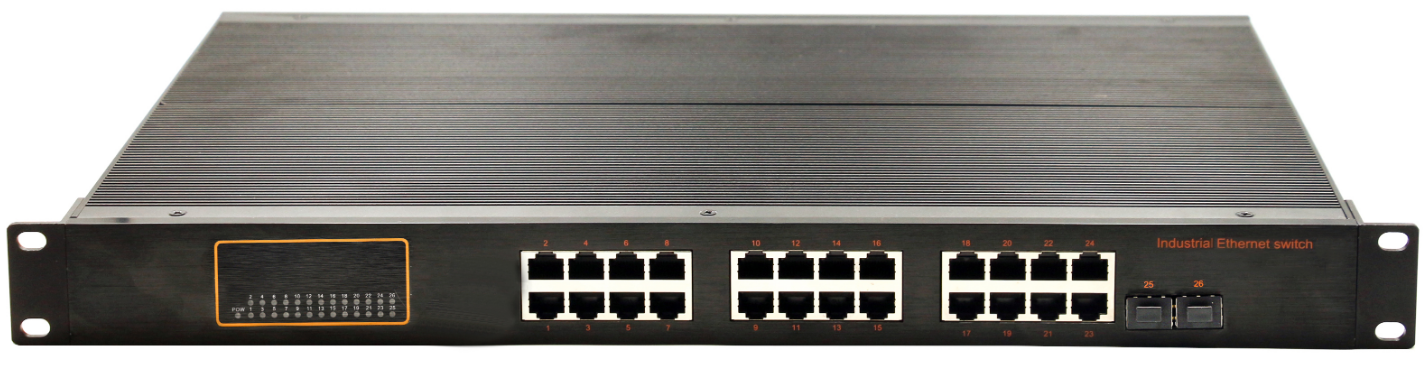

ZXD224G-SFP
24-port 10/100/1000BASE-TX +2G SFP Industrial Ethernet Switch
ZXD224G-SFP an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 24-port 10/100/1000BASE-TX RJ45 copper interfaces +2 Port 10/100/1000 SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The ZXD224G-SFP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
Specifications:
Model No. | ZXD224G-SFP |
10/100/1000BASE-TX Port | 24 port RJ-45 auto-MDI / MDI-X 2 port SFP |
Performance Specification | Bandwidth: 56Gbps |
Installation | Rack mountable |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Ethernet: Yellow POE: Green |
Power Input | AC110-240V |
Power Consumption | < 10 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | IEC 61000-4-4 (EFT), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
MTBF | 300,000hours |
Dimensions (W x D x H) | 442*195*44mm |
Weight | Product Weight: 3KGS Packing Weight: 3.8KGS |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
