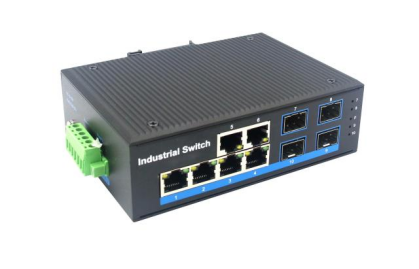

ZXD46G Series
6-port 10/100/1000BASE-TX+4-port 1000Base-FX Industrial Ethernet Switch
Slim Type with more Practicability and Convenience
ZXD46G an hardened 6-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 6-port 10/100/1000BASE-TX RJ45 +4-port 1000Base-Fx delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The ZXD46G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The ZXD46G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Specifications:
Model No. | ZXD46G-SC2 / ZXD46G-SC20 / ZXD46G-SFP |
10/100/1000Base-TX Port | 6 port RJ-45 auto-MDI / MDI-X |
1000Base-FX Port | ZXD46G-SC2: 4 SC interface ZXD46G-SC20: 4 SC Interface ZXD46G-SFP: 4 SFP Slot |
Fiber Port Type | ZXD46G-SC2: SC / multi-mode ,up to distance 2km ; ZXD46G-SC20: SC / single-mode ,up to distance 20km ; ZXD46G-SFP: Vary on module |
Optical Frequency | ZXD46G-SC2: 1310nm ZXD46G-SC20: 1310nm ZXD46G-SFP: Vary on module |
Performance Specification | Bandwidth: 20Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Power Input | 12 to 52V DC redundant power |
Power Consumption | < 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7 x 103.8 x 47.7 mm |
Weight | Product Weight: 0.52KG Packing Weight: 0.62KG |
Working Environment
| Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
