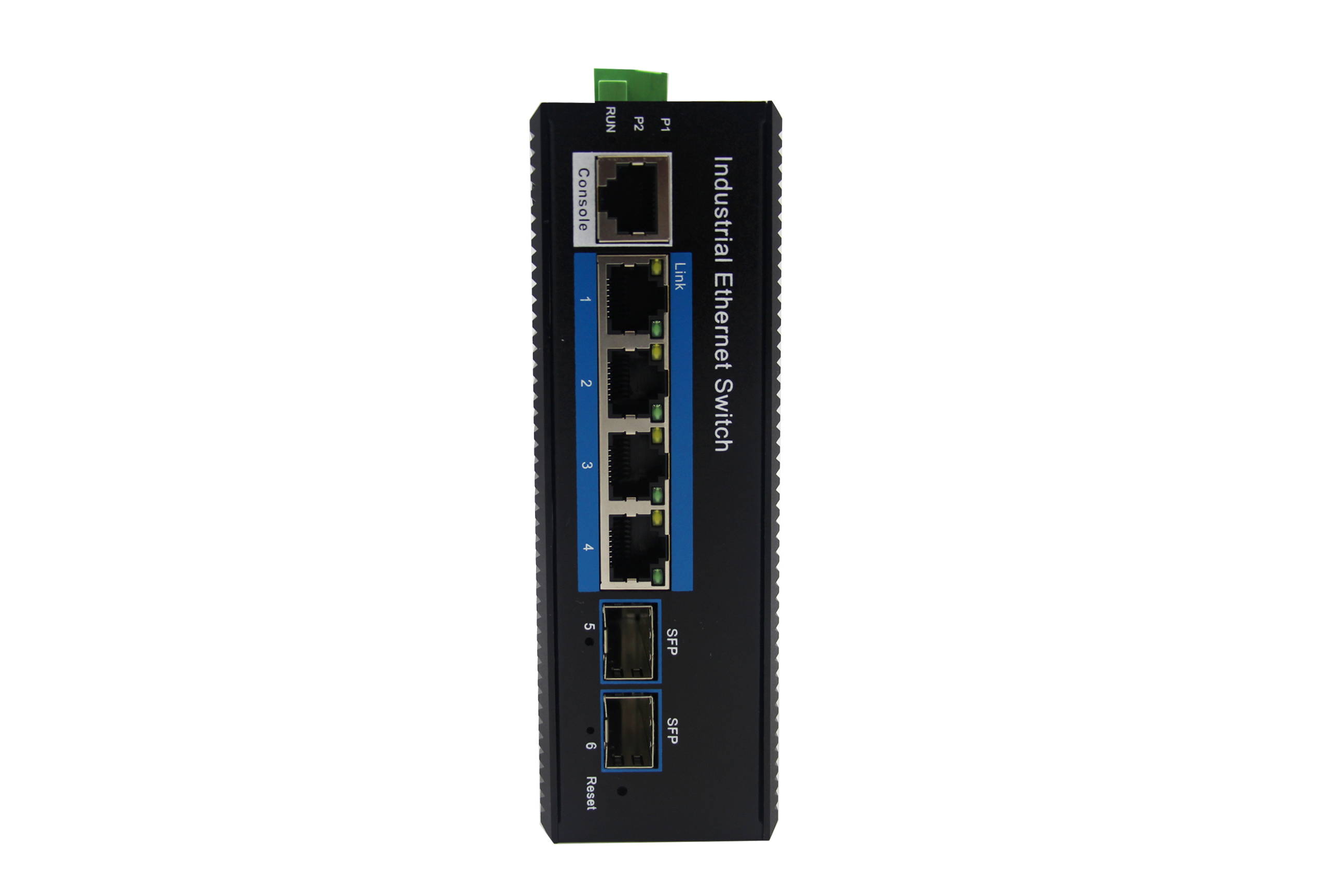

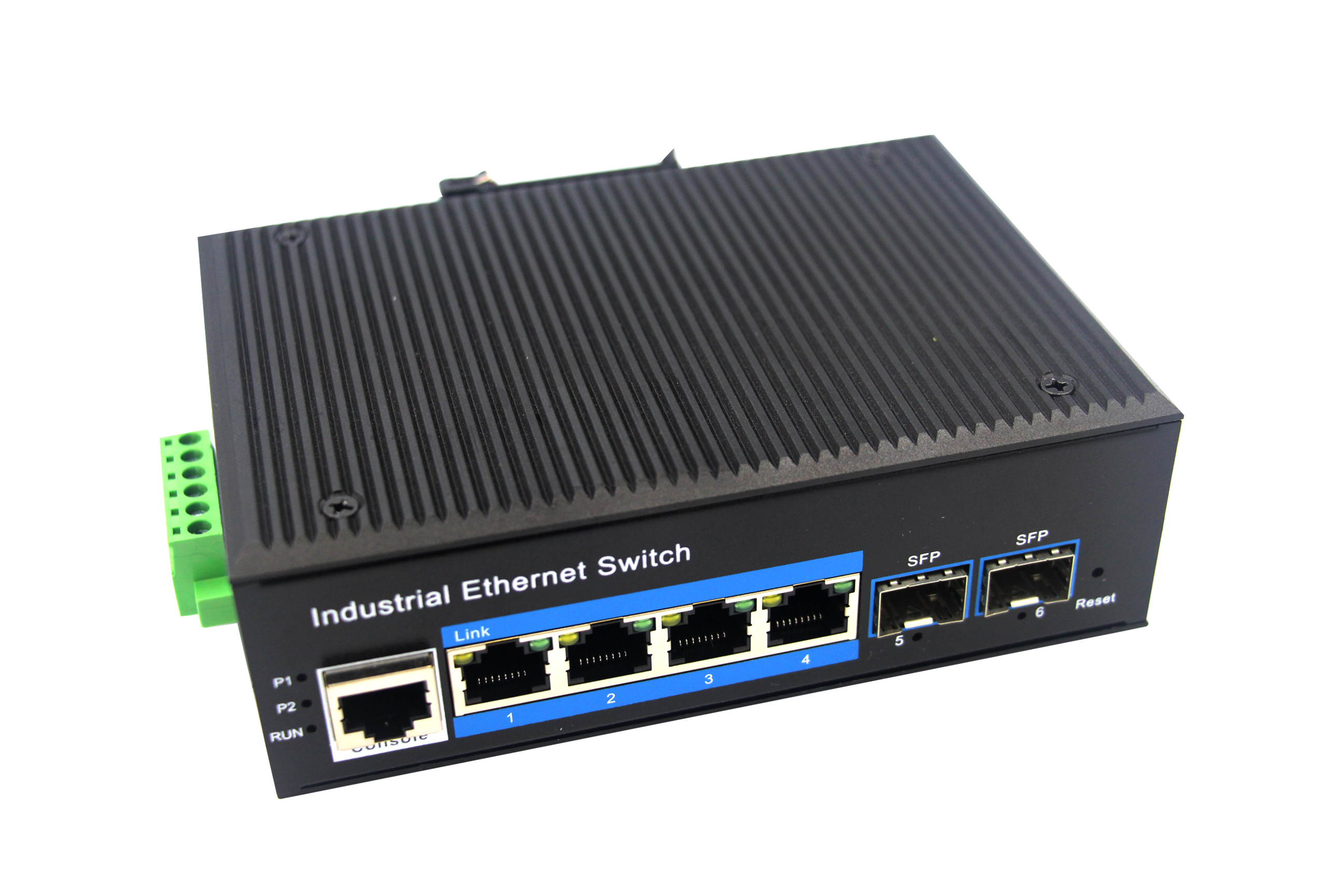

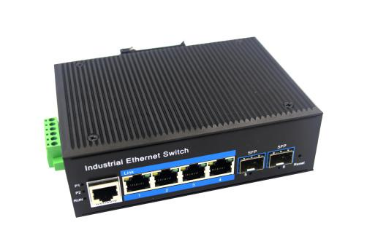

ZX24GSP-M-SFP

4-Port 10/100/1000BASE-TX+2G SFP Managed Industrial PoE Switch





ZX24GSP-M-SFP an hardened 6-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100BASE-TX RJ45 PoE +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.



The ZX24GSP-M-SFP provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.



The ZX24GSP-M-MSFP is packaged in a compact IP40 case with DIN rail installation. It offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.



Specifications:

Model No.

ZX24GSP-M-SFP

10/100/1000Base-TX Port

4-Port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-4 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect af/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

2G SFP Slot



Performance Specification

Bandwidth (switch capacity): 38Gbps
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate:14.9Mpps

MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

10240bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing



LED Indicator

Power: Red

RUN: Green

Fiber: Green

Ethernet: Green

PoE:Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 5W

Surge protection

 ± 4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

FCC CFR47 Part 15,EN55032 Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

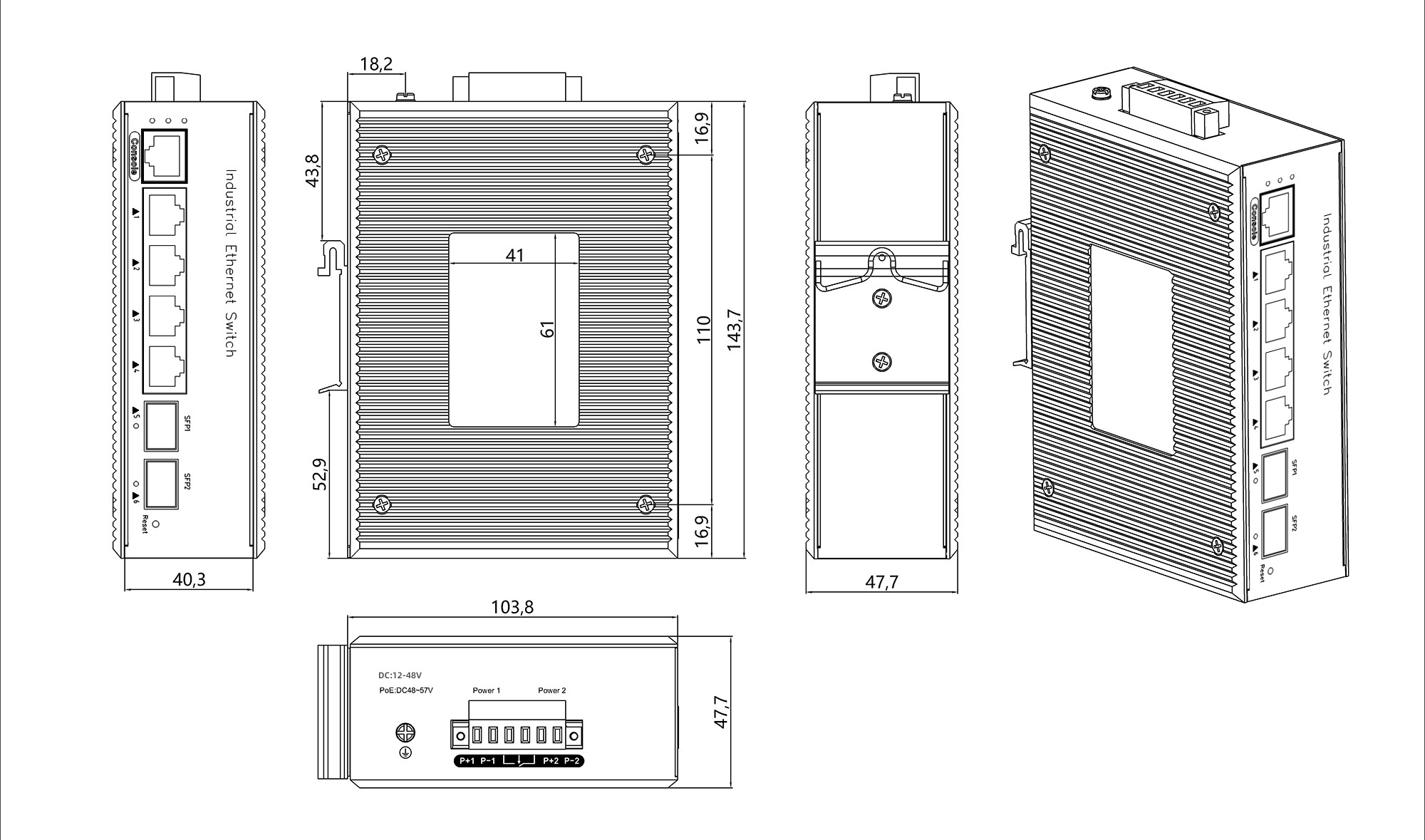

Dimensions (W x D x H)

143.7 x 104 x 47.7 mm

Weight

Product Weight: 0.7KG

Packing Weight: 0.8KG

Working Environment



Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)
