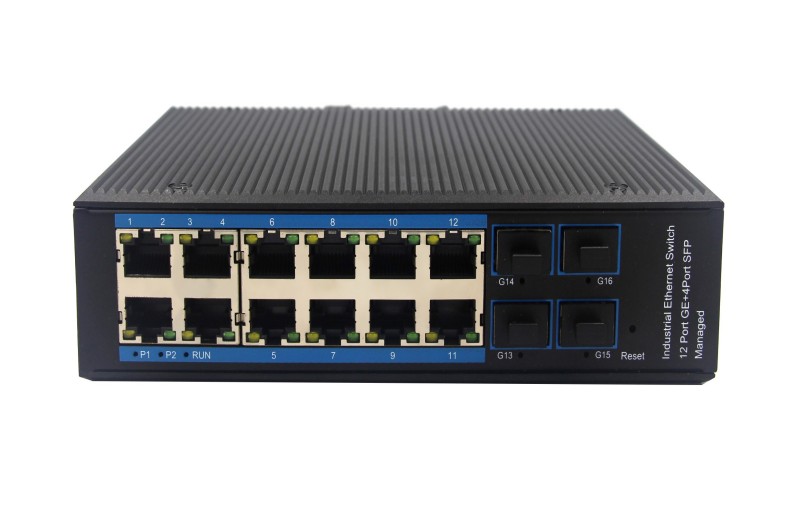

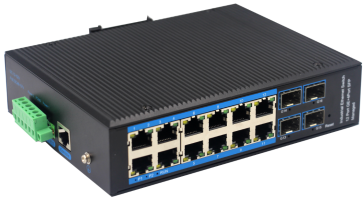

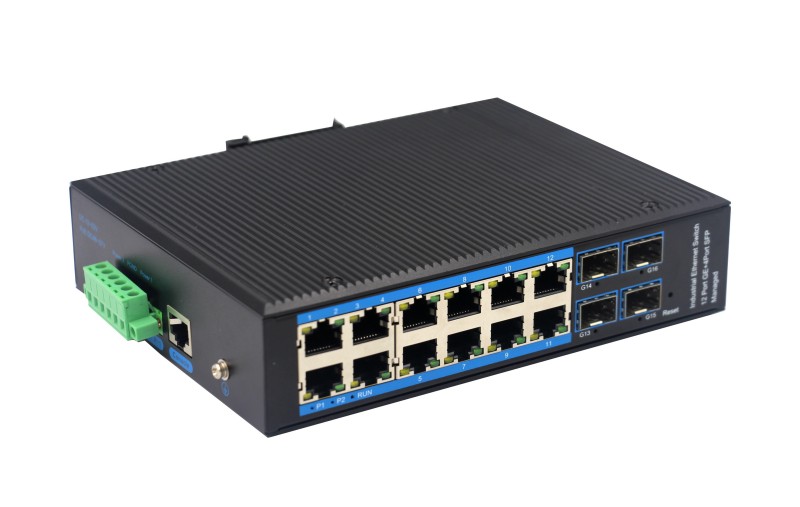

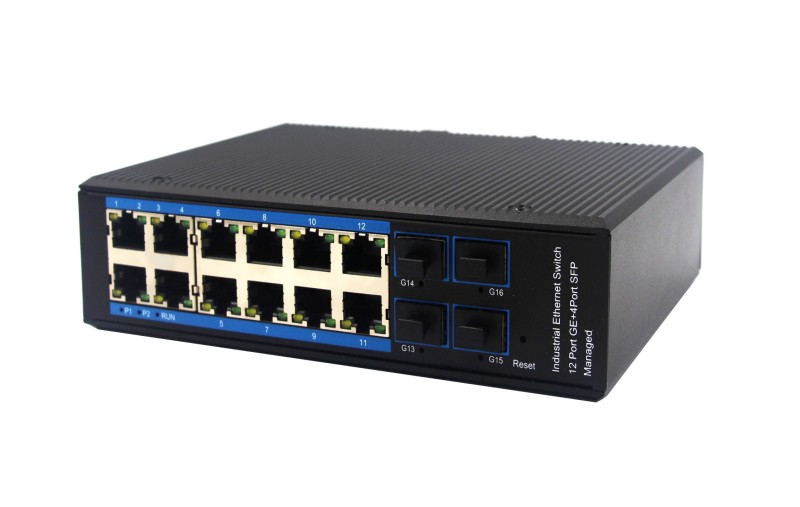

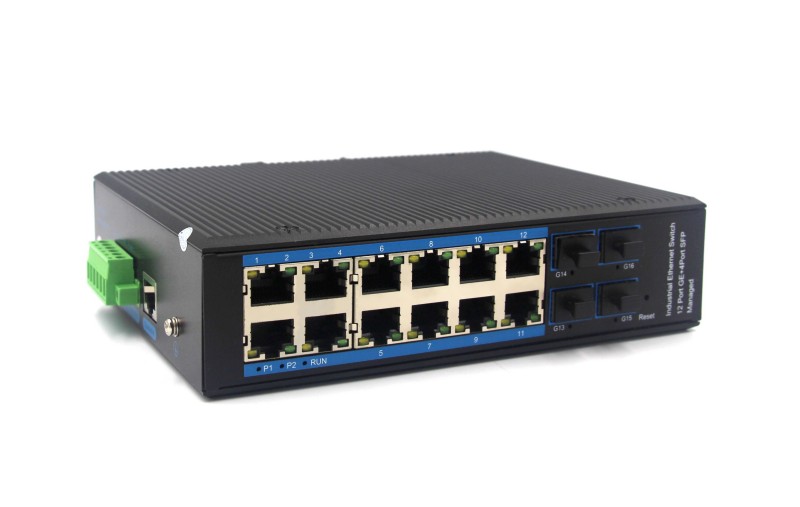

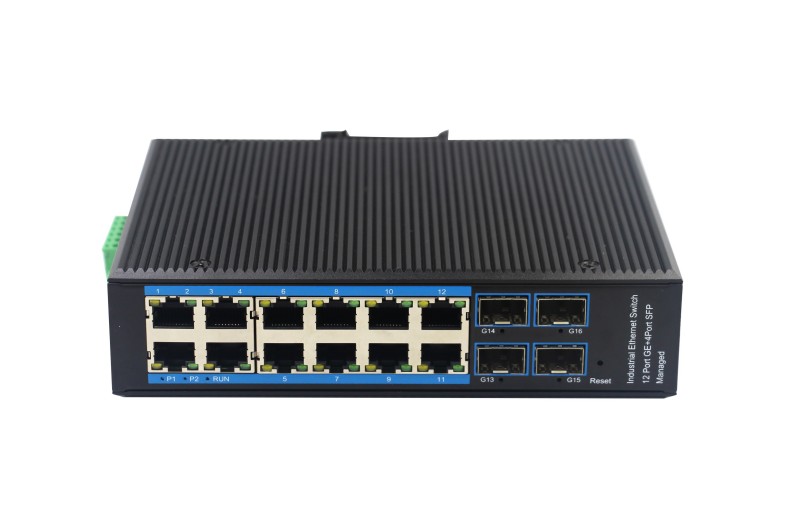

Specifications:

1000Base-TX Port

12 port RJ-45 auto-MDI / MDI-X

1000Base-FX Port

4G SFP Slot

Performance Specification

Bandwidth(switch capacity): 106Gbps
Packet Buffer Memory:16Mbit

Packet Forwarding Rate: 78Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

9600bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing

LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input

12 to 52V DC redundant power

Power Consumption

<10 watts

Surge protection

 ± 4KV

Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

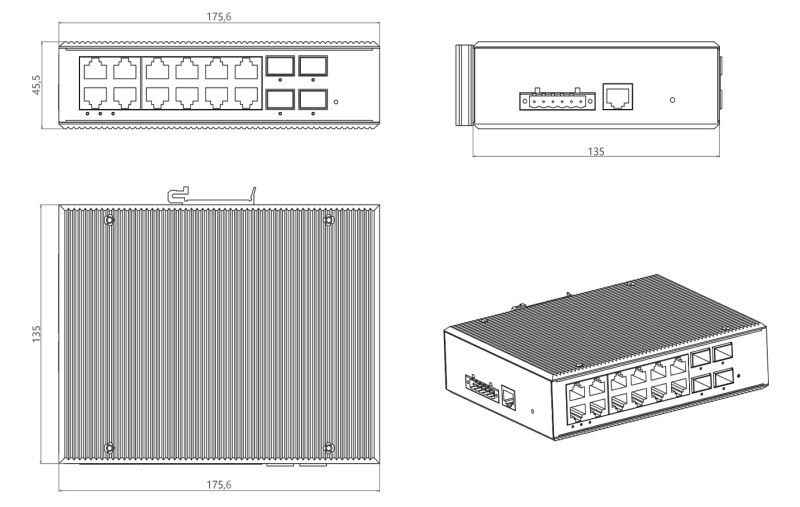

Dimensions (W x D x H)

175 x 135 x 45.5 mm

Weight

Product Weight: 1KG

Packing Weight: 1.1KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.

Layer 3 Features

L2+ network management, IPV4/IPV6 management L3 soft routing forwarding,

Static route, Default route @ 128 pcs, APR@1024pcs

VLAN

4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC

Voice VLAN, QinQ configuration

Port configuration of Access, Trunk, Hybrid

Port Aggregation

LACP, Static aggregation

Max 8 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring

Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring. Multicast

Multicast

MLD Snooping v1/v2,Multicast VLAN

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port Mirroring

Bidirectional data mirroring based on port

QoS

Flow-based Rate Limiting Flow-based Packet Filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL

Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source,

Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range,

and VLAN, etc.

Security

IP-MAC-VLAN-Port binding

ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit

Mac black holes, IP source protection IEEE802.1X & MAC

address authentication Broadcast storm control,Backup for host datum

SSH 2.0, SSL, Port isolation, ARP message speed limit

User hierarchical management and password protection

DHCP

DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay

Management

One-key recovery Cable Diagnose, LLDP

Web Management (HTTPS) NTP, System work log,Ping Test CPU

instant utilization status view

Console/AUX Modem/Telnet/SSH2.0 CLI

Download & Management on FTP, TFTP, X modem, SFTP, SNMP V1/V2C/V3

System

Category 5 Ethernet network cable

Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome

V42 or higher, Microsoft Internet Explorer10 or later;

TCP/IP, network adapter, and network operating system

(such as Microsoft Windows, Linux, or Mac OS X) installed on each

computer in a network
