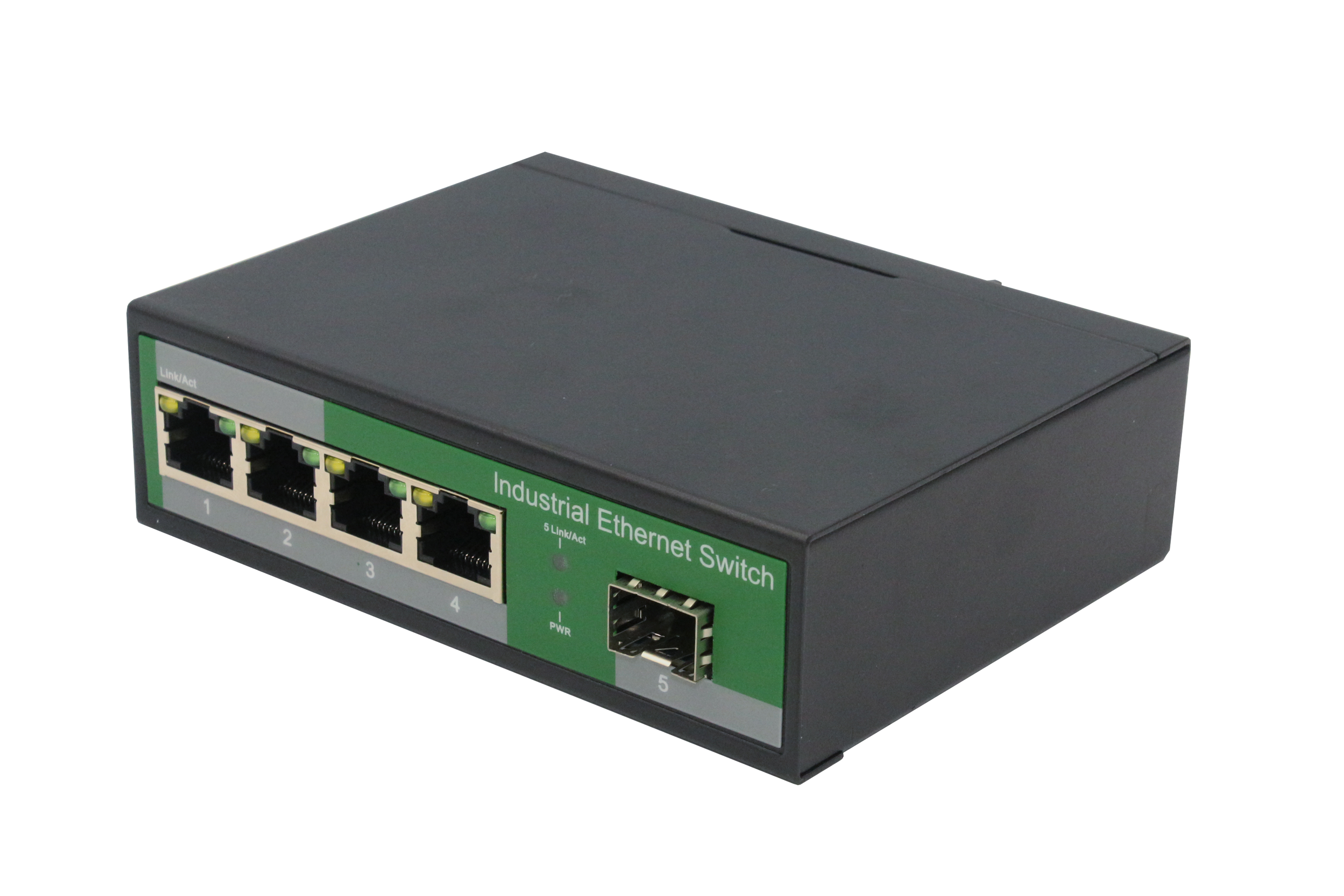

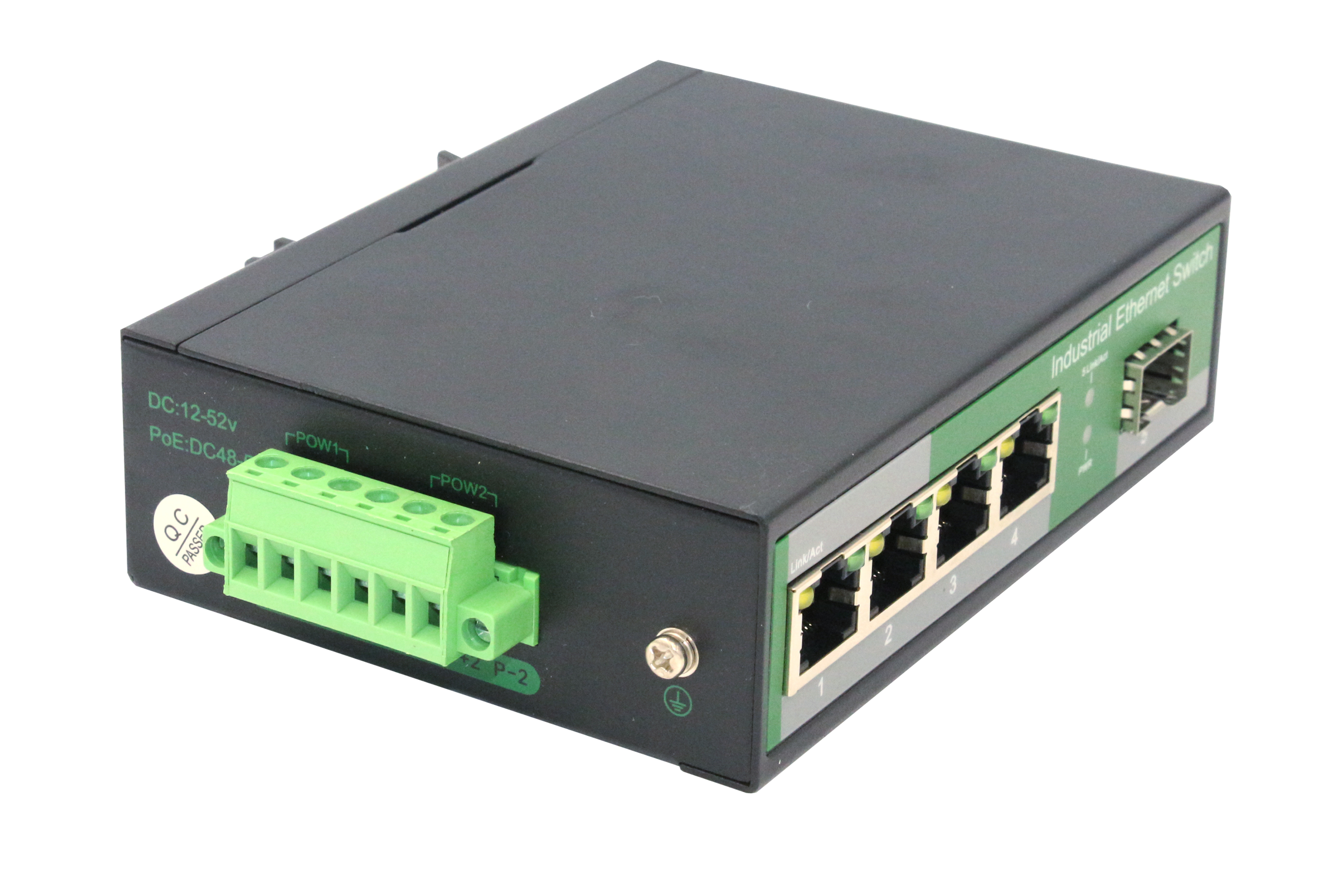

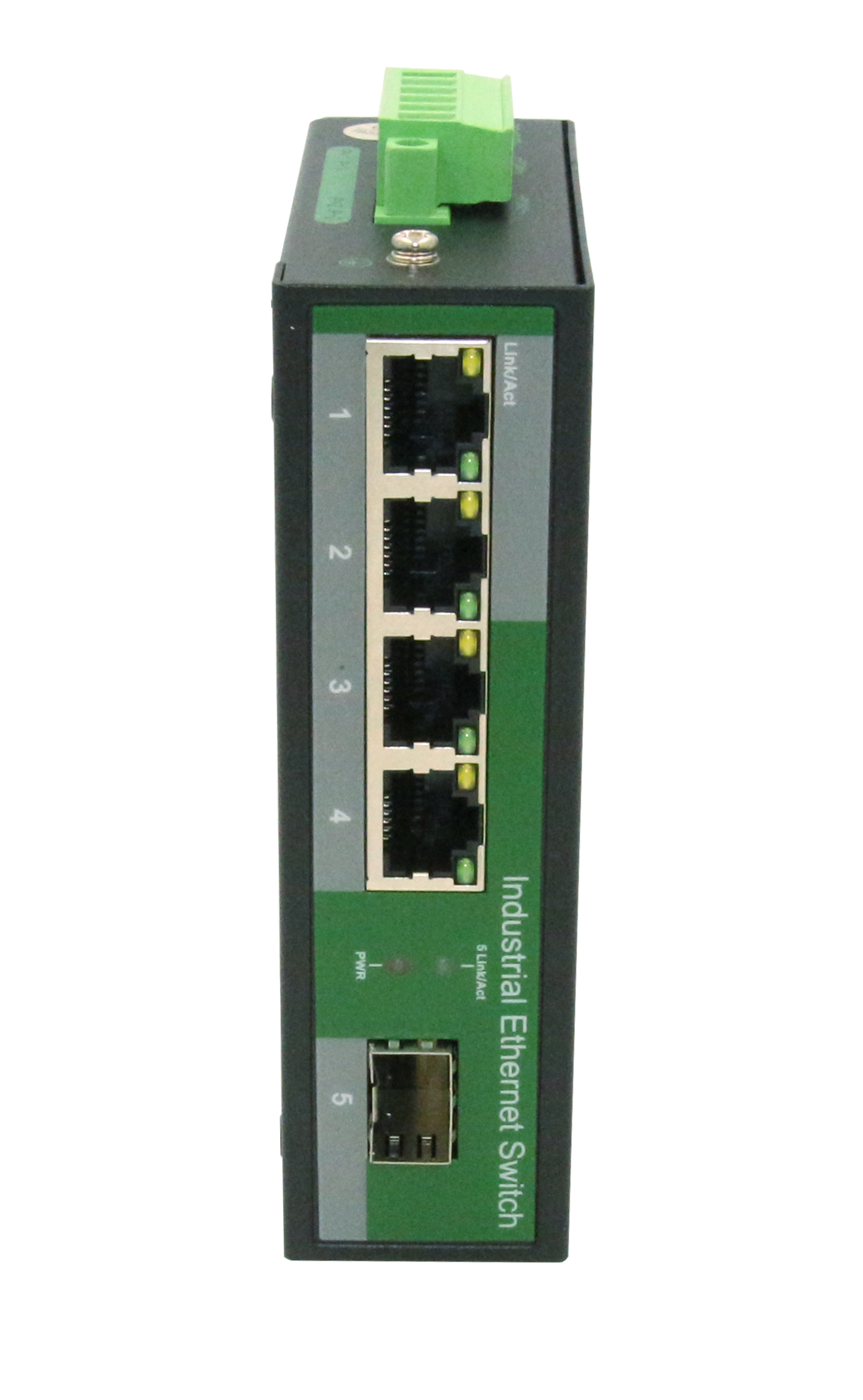

ZXRL14F-SFP

4-Port 10/100Base-TX to 100Base-FX Industrial Ethernet Switch




Distance extending Slim Type with more Practicability and Convenience

Yuhang 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the ZXRL14F-SC2, up to 20km with the ZXRL14F-SC20 .



The ZXRL14F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under   the temperature range from -40℃ to 75℃ allows the ZXRL14F series to be placed in almost any difficult environment.

Yuhang ZXRL14F series 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The ZXRL14F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ45 port and performs highly stable fiber performance.

The ZXRL14F series is packaged in a compact IP30 case with DIN rail . It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.



Specifications:

Model No.

ZXRL14F-SC2 / ZXRL14F-SC20 / ZXRL14F-SFP

10/100Base-TX Port

4 port RJ-45 auto-MDI / MDI-X

100Base-FX Port

ZXRL14F-SC2: 1 SC interface

ZXRL14F-SC20: 1 SC Interface

ZXRL14F-SFP: 1 SFP Slot



Fiber Port Type

ZXRL14F-SC2: SC / multi-mode ,up to distance 2km ;

ZXRL14F-SC20: SC / single-mode ,up to distance 20km ;

ZXRL14F-SFP: Vary on module



Optical Frequency

ZXRL14F-SC2: 1310nm

ZXRL14F-SC20: 1310nm

ZXRL14F-SFP:  Vary on module



Performance Specification

Bandwidth: 1.6Gbps
Packet Buffer Memory:1Mbit
Packet Forwarding Rate:1.2Mpps
MAC Address Table: 2K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

Steel alloy



LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input

12 to 52V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

118 x 86 x 33.5 mm

Weight

Product Weight: 0.36KG

Packing Weight: 0.46KG

Working Environment



Working temperature: -40～75℃ ;

Storage temperature: -40～75℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
