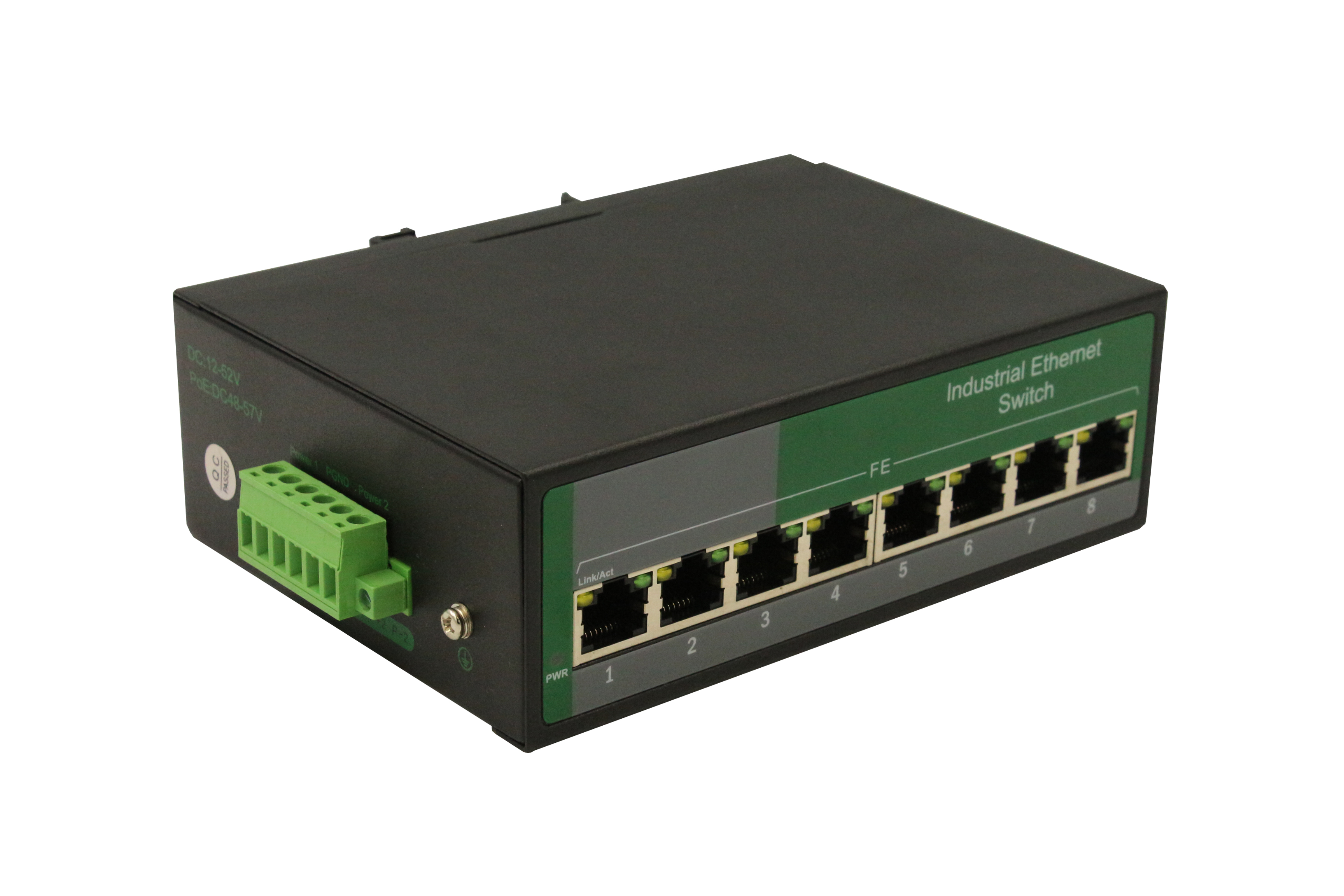

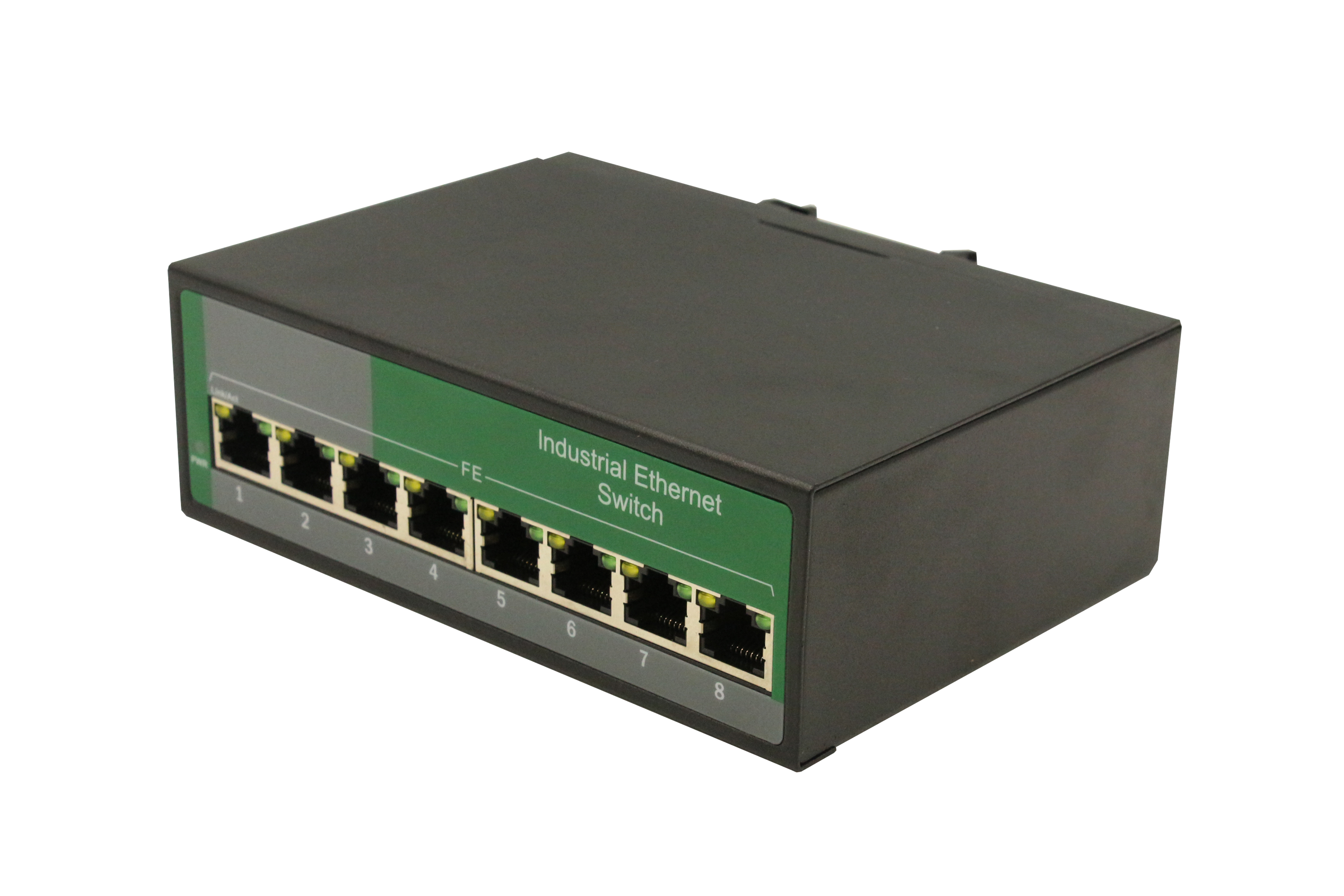

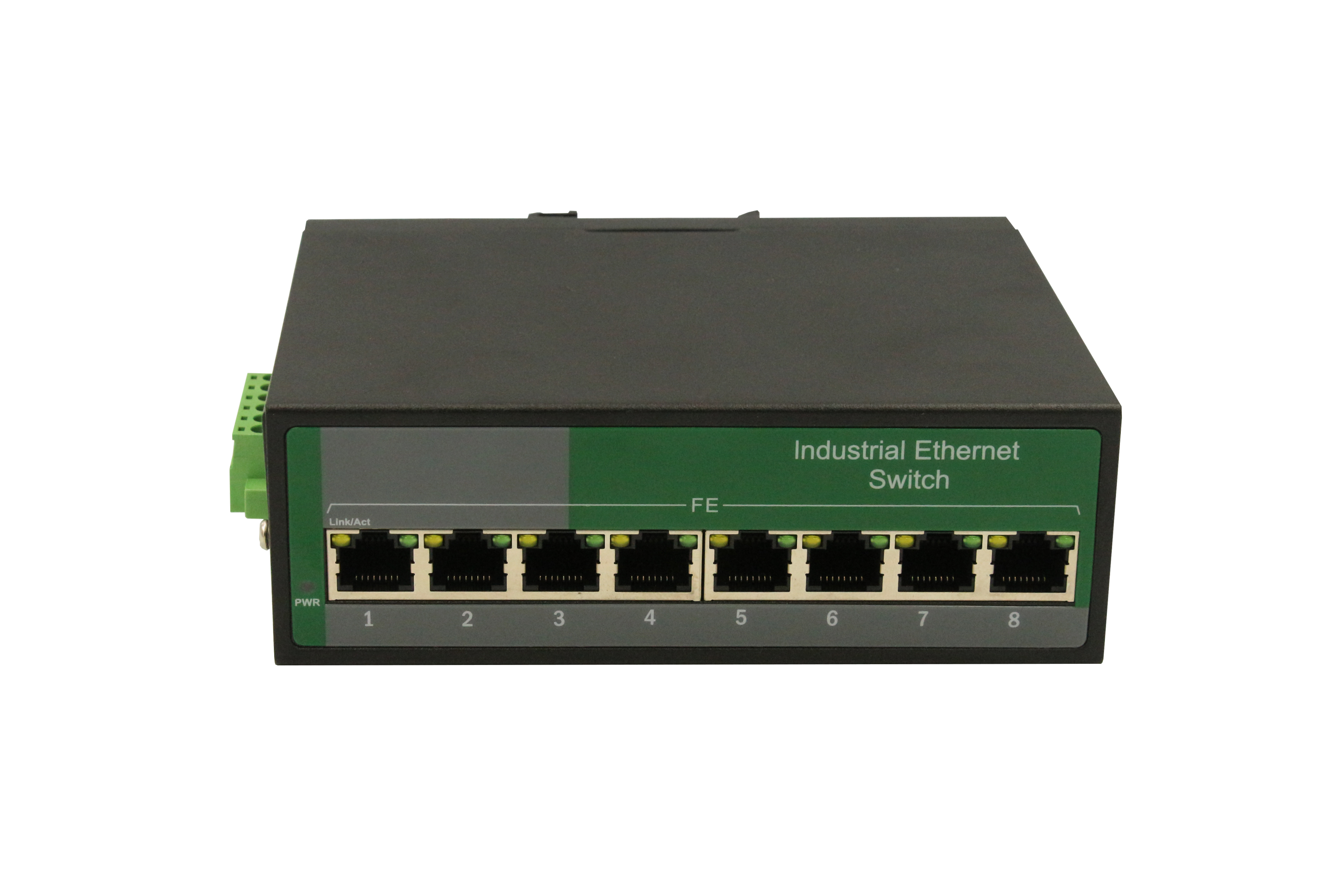

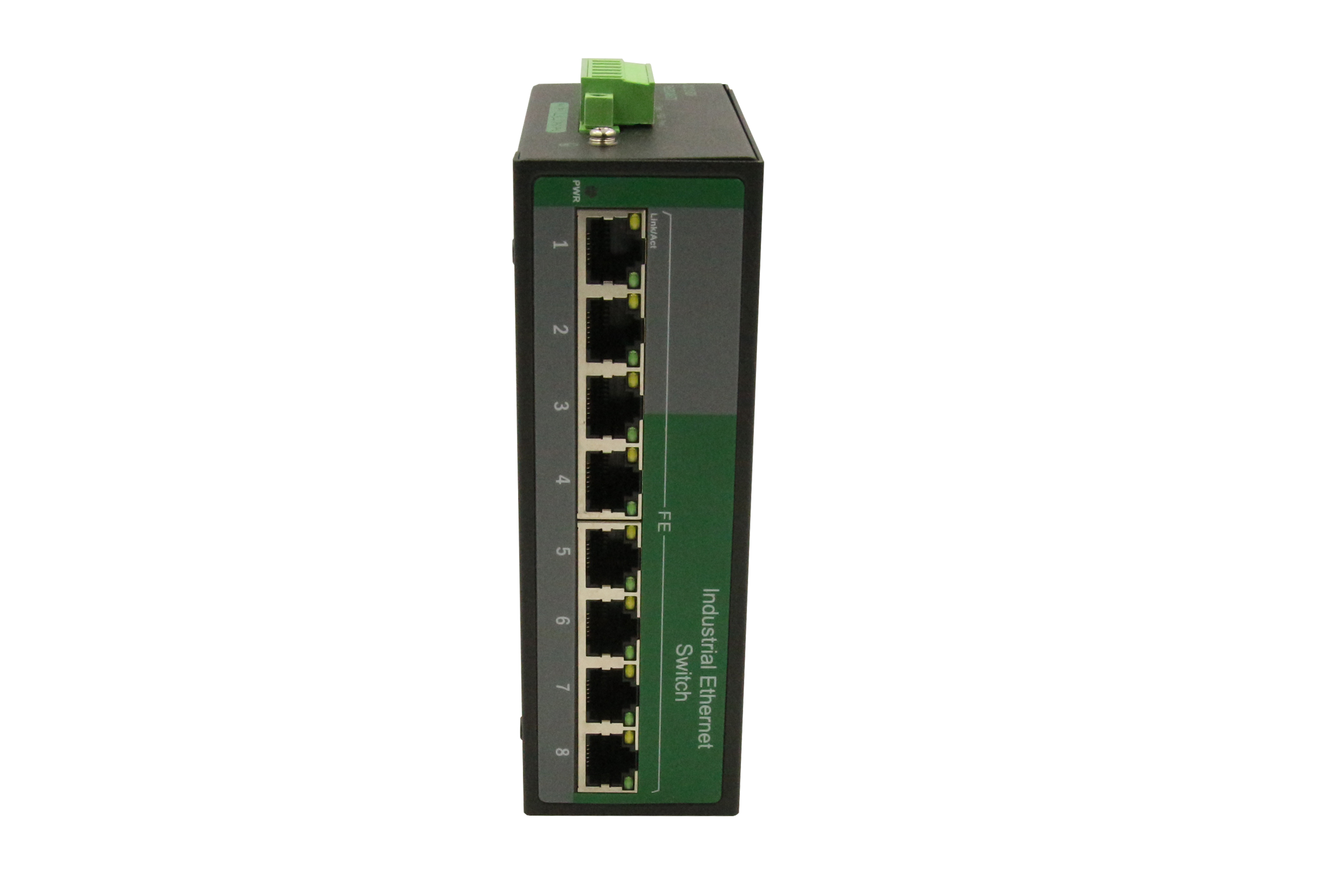

ZXRL08F

8-port 10/100BASE-TX Industrial Ethernet Switch


Slim Type with more Practicability and Convenience

ZXRL08F an hardened 8-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75℃



The ZXRL08F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.



The ZXRL08F series is packaged in a compact IP40 case with Din Rail Installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.









Specifications:

Model No.

ZXRL08F

10/100BASE-TX Port

8 port RJ-45 auto-MDI / MDI-X



Performance Specification

Bandwidth: 1.6Gbps
Packet Buffer Memory:1Mbit
Packet Forwarding Rate:1.2Mpps
MAC Address Table: 2K

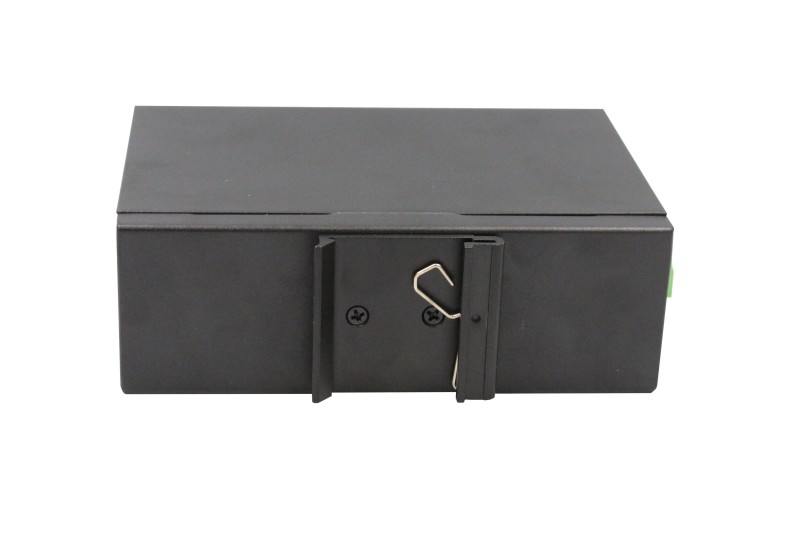

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

Steel alloy



LED Indicator

Power: Red

Ethernet: Yellow

POE: Green

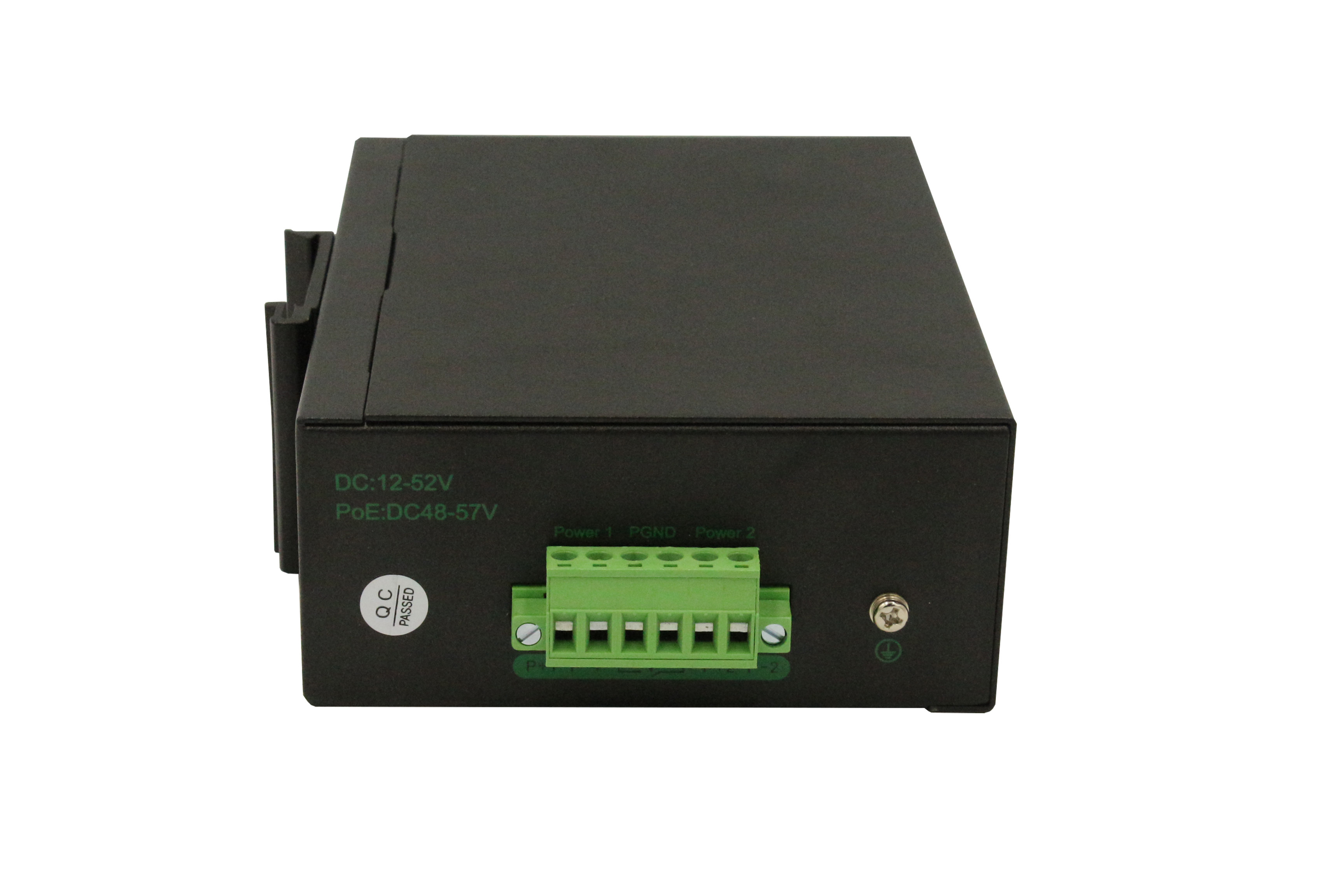

Power Input

12 to 52V DC redundant power

Power Consumption

3 watts max

Surge protection

±4KV



Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)





Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143.7 x 103 x 47.7 mm

Weight

Product Weight: 0.52KG

Packing Weight: 0.62KG

Working Environment



Working temperature: -40-75℃

Storage temperature: -40-75℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
