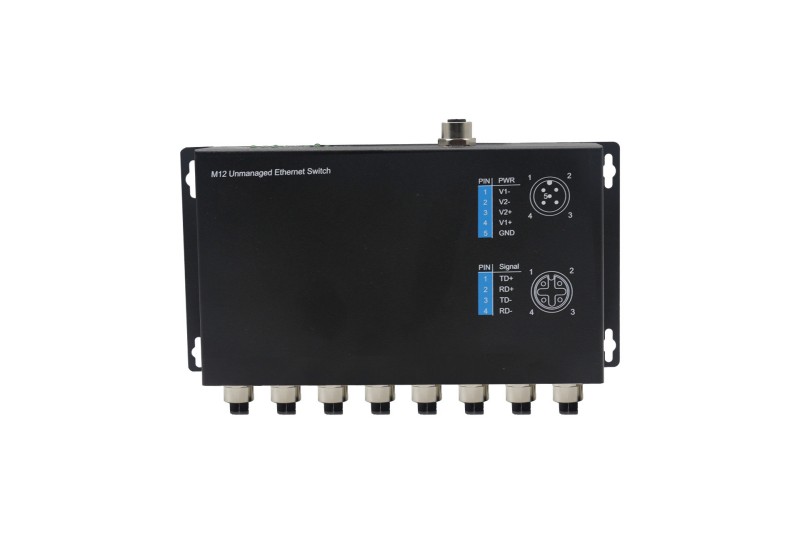

8-Port Industrial Switch, Fast (Vehicle-mounted) KWL08F-M12-CZ


8-Port Industrial Switch, Fast(Vehicle-mounted)

KWL08F-M12-CZ


Metal casing rugged unmanaged Industrial Switch,

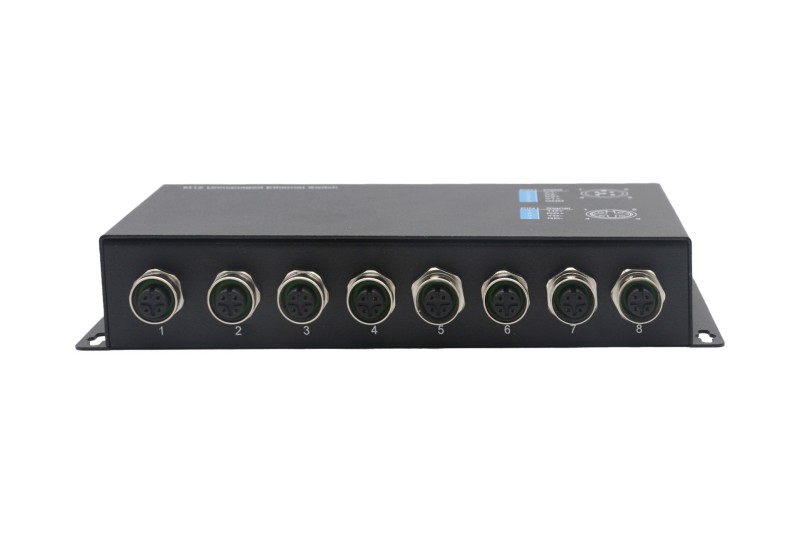

8-Port M12 A-coded 10/100Mbps (4-pin),

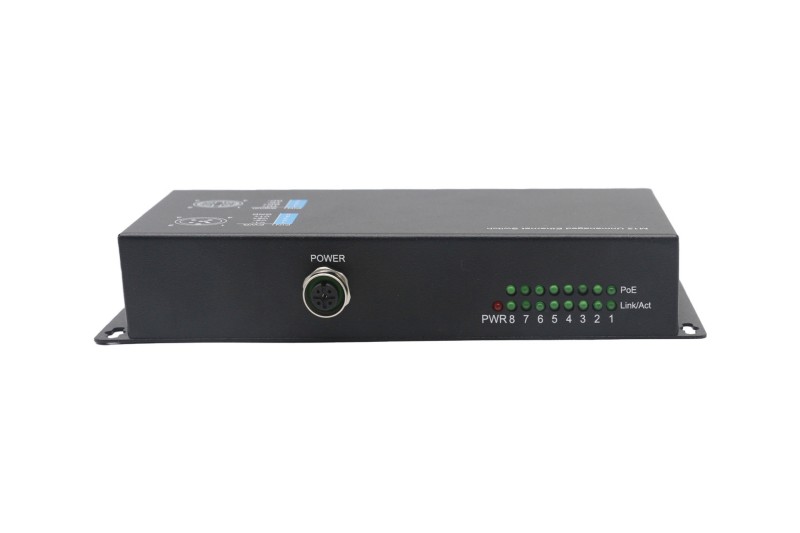

Power supply: DC12~52V (M12 A-coded 5-pin),

work temperature:-40℃-75℃,

PoE optional: 8 port PoE (DC48-57V)


Product Description

The KWL-M12 series unmanaged Ethernet switch is designed specifically for industrial applications, using M12 connectors to ensure a tight and robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock. This series of Ethernet switches offers 5/8 M12 Ethernet ports with a wide operating temperature of -40℃ to 75℃, which provides to user a safety and reliable solution.



Product Properties

Plug and play

Metal shell with IP40 protection

Operating Temperature: -40℃~75℃

Support full duplex and half duplex mode, auto-MDI / MDI-X

Dual power Supply: DC 12-57V redundant power input

Two types of cable connected options are available

PoE models provide Ethernet M12 ports with 4/8 IEEE 802.3at/af PoE ports. It provides up to 30 watts of power per port, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.
