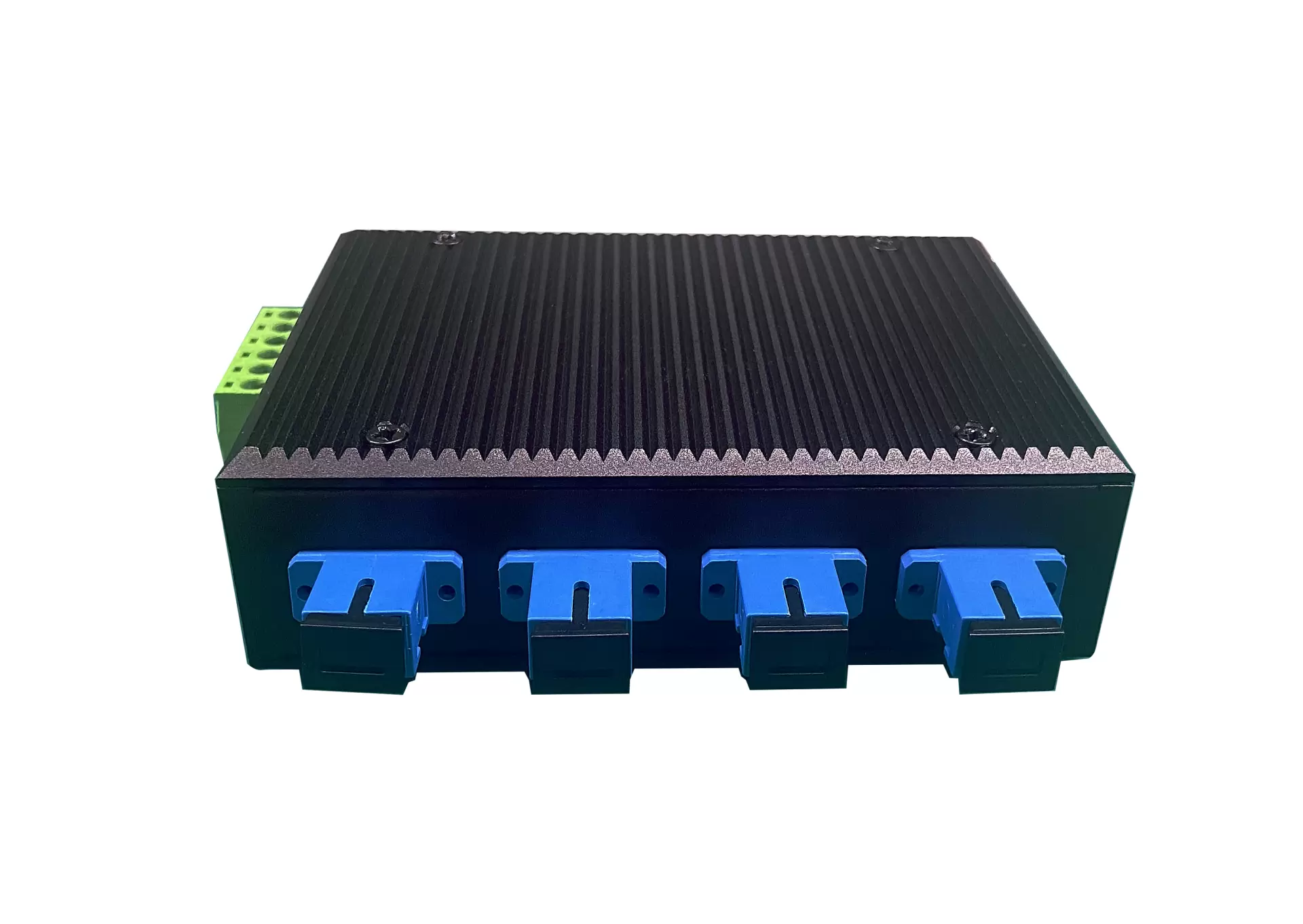

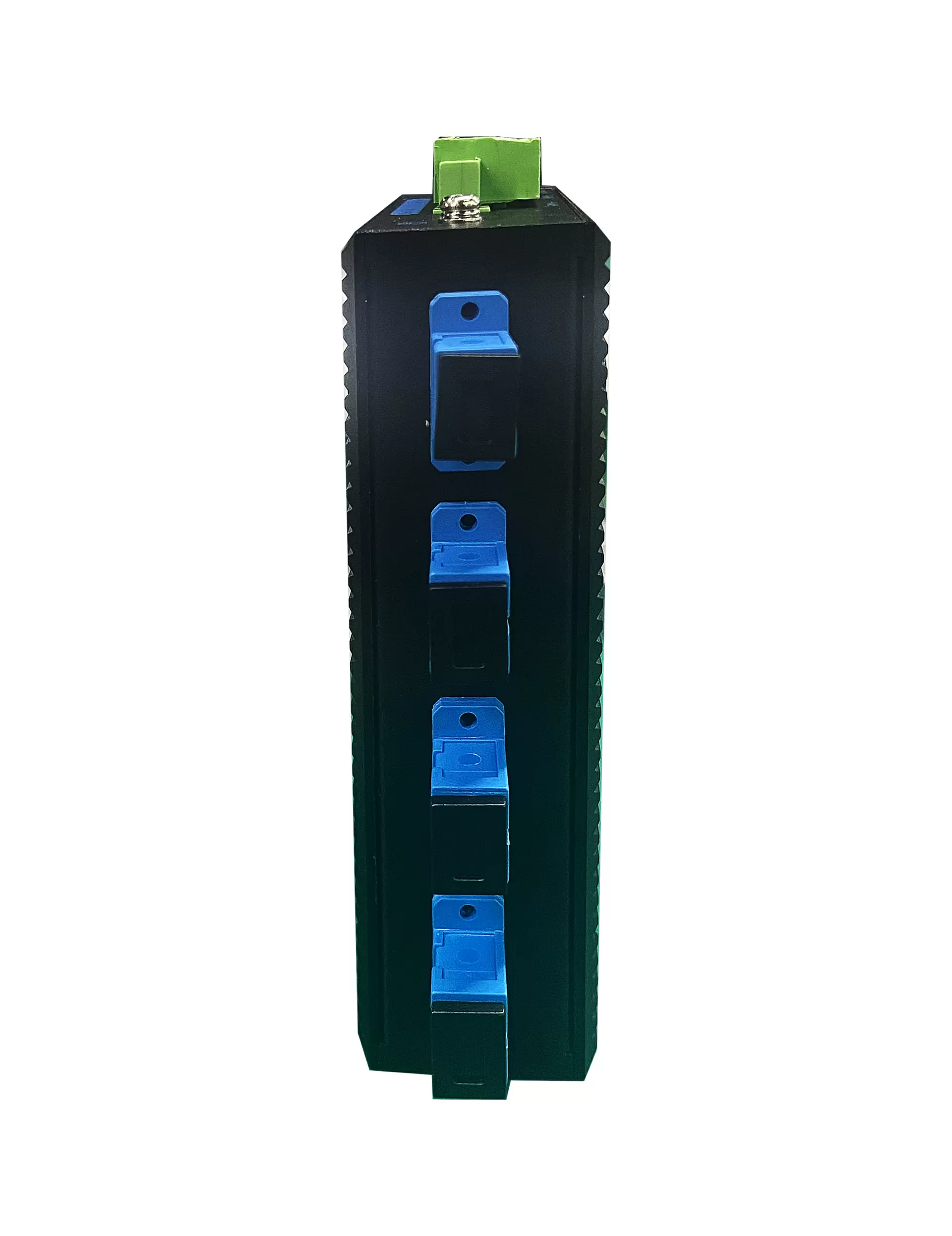

ZX5BP-2  Bypass Industrial optical module

The Bypass industrial module ZX5BP-2 features low loss, high stability and high reliability. It is an indispensable product for monitoring and protection of optical communication systems and can be connected to high-density optical communication systems. Low power consumption, IP40 protection with aluminum house . fanless design to ensure no noise interference, at the same time support -20~70℃ operating temperature and good EMC performance, to ensure stable work in the harsh industrial environment

Parameters of Bypass module

- Plug and play

- Power interface: standard industrial terminal

- Polarity protection: Supported

- Optical fiber interface: SC (Single-mode single-fiber)

- Operating voltage: DC 12-52V

- Operating temperature: -20 ~ 70 °C

- Storage temperature: -40 °C to +85 °C

- Installation: guide rail type

- Size: 118 x 85.8 x 33.5 mm

Application scenarios

- Switching monitoring in an optical transmission system at a cost

- Protecting and restoring optical networks at a cost

- Optical fiber sensor and network test system, device installation and tuning

Bypass technicals:

  Bypass Interface

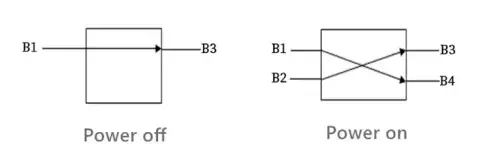

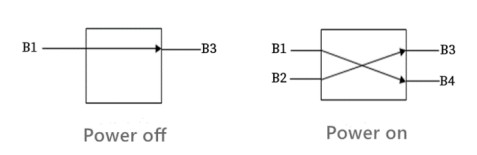

ByPassOptical bypass protection mechanism:

Port B1.B3 to connect with other swiches,

Port B2 ,B4 to connect with with each other

  Bypass Switch connection

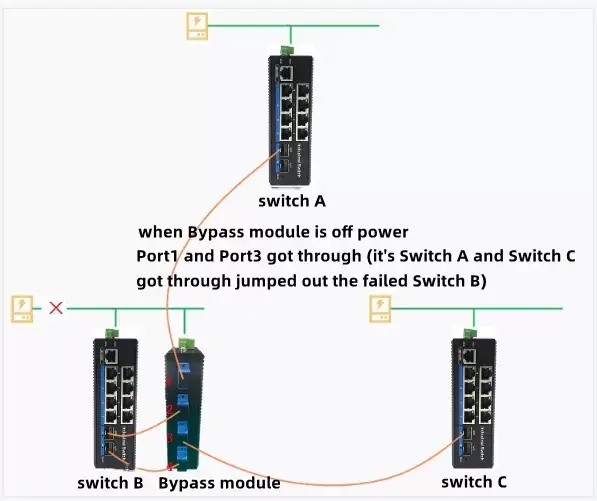

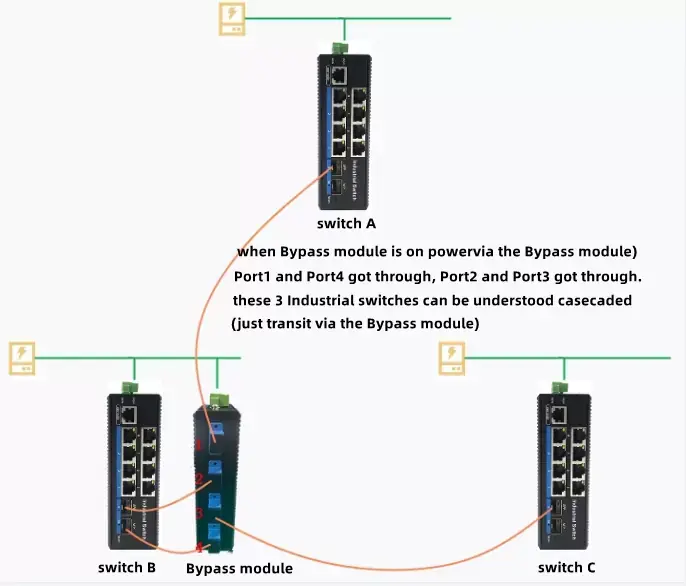

ByPass Working principle:

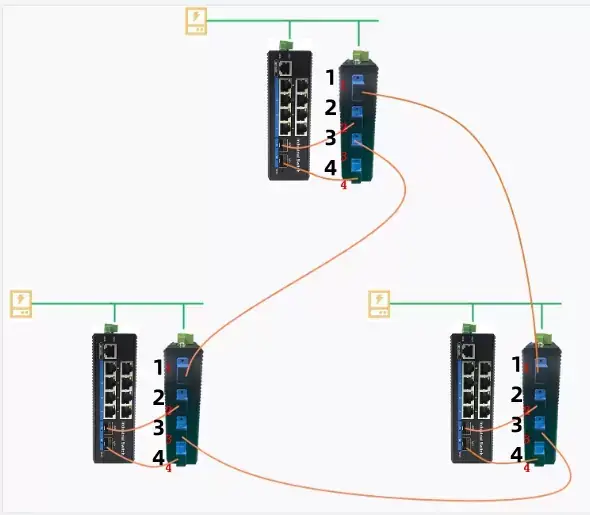

ByPass application:
