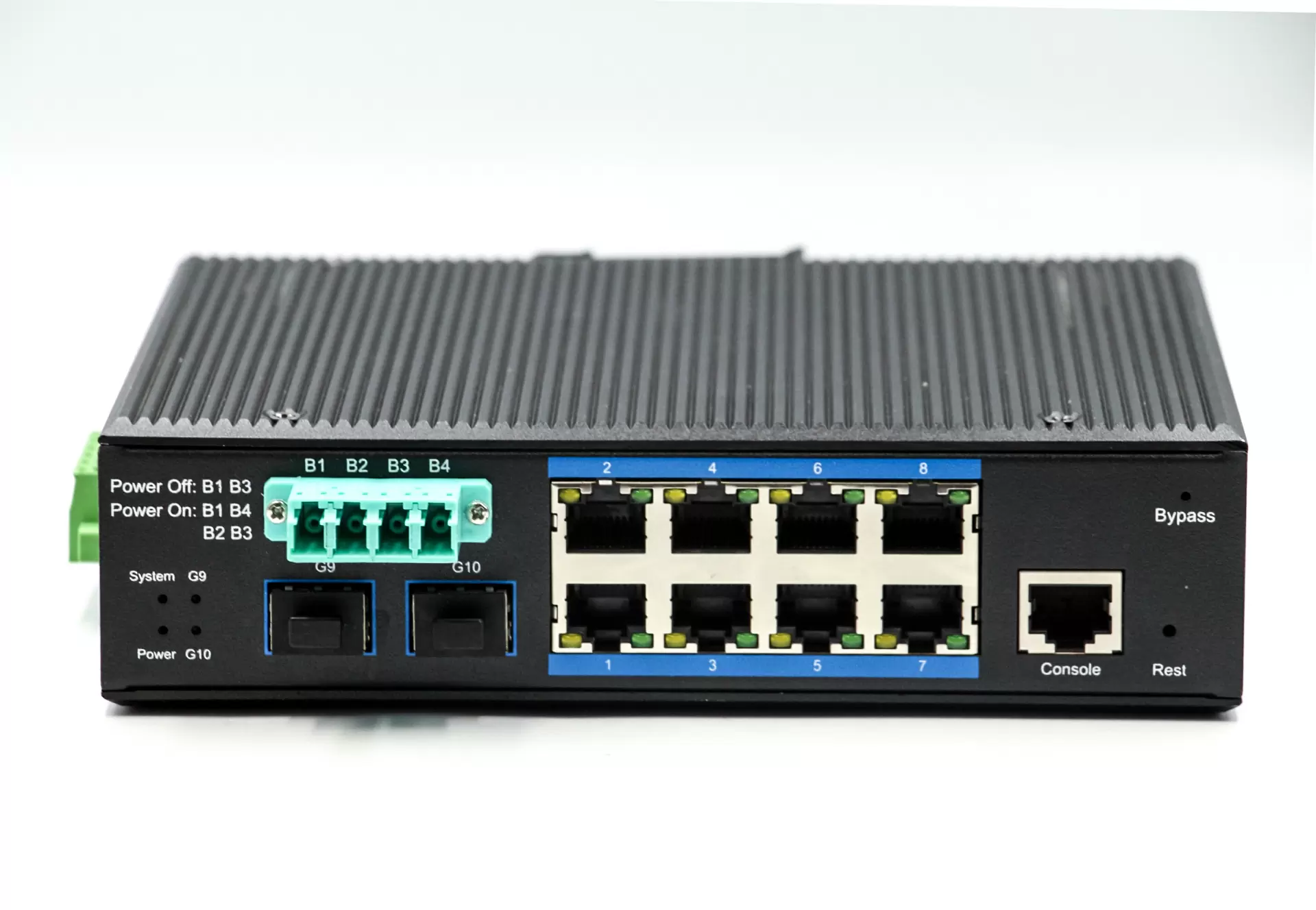

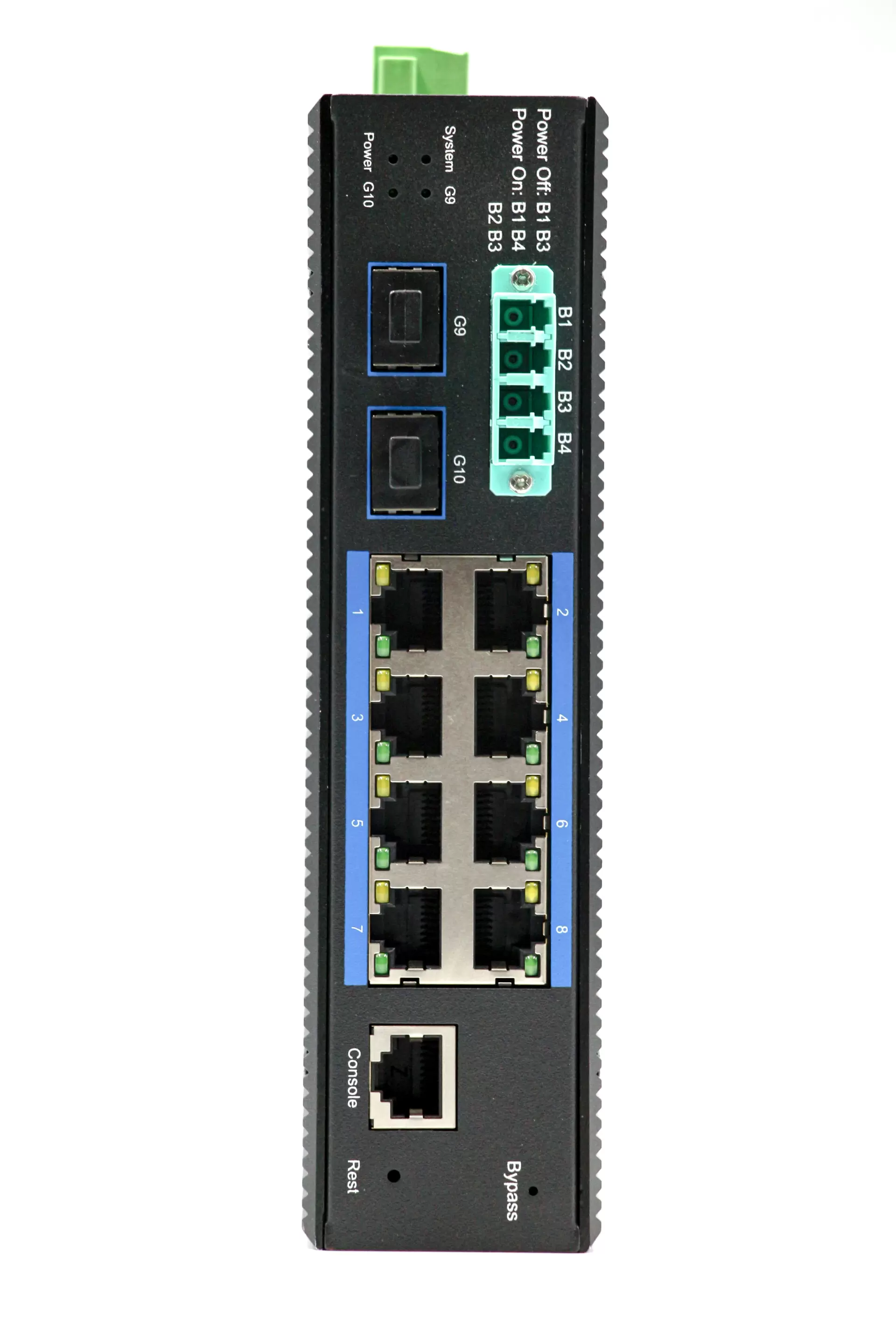

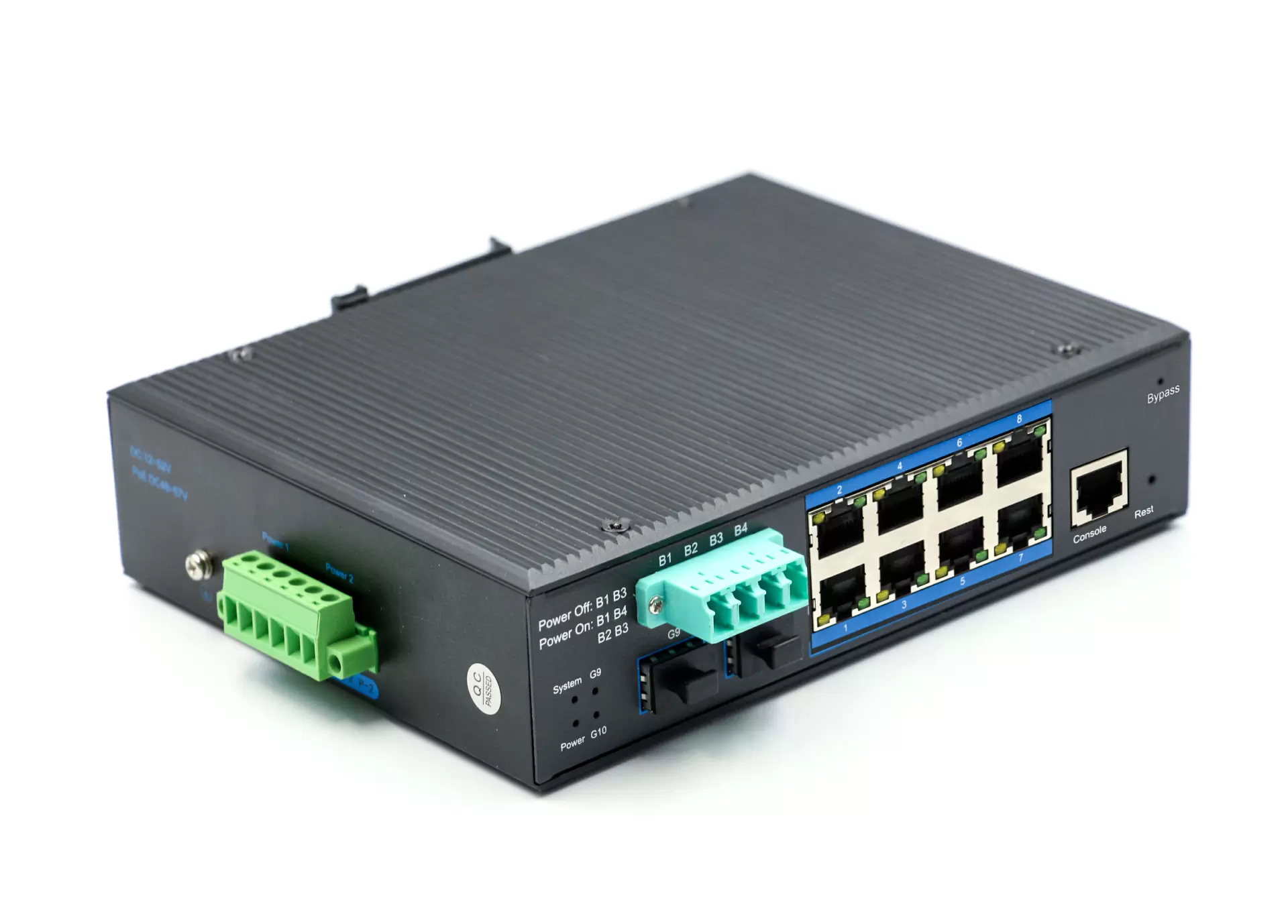

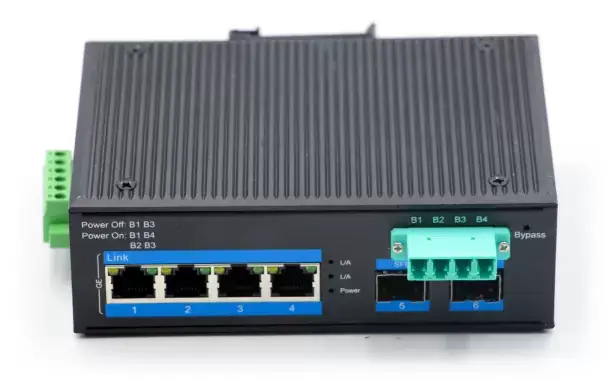

4-port 10/100/1000Mbps RJ45+2G SFP Bypass Industrial Switch

The built-in Bypass Industrial switch features low loss, high stability, and it’s an indispensable product for optical communication system monitoring and protection. and can be connected to high-density optical communication systems.  Low power consumption, fanless design, ensure no noise interference, and support -30~+75℃ operating temperature and good EMC electromagnetic compatibility performance, to ensure stable work in harsh industrial environment.  .

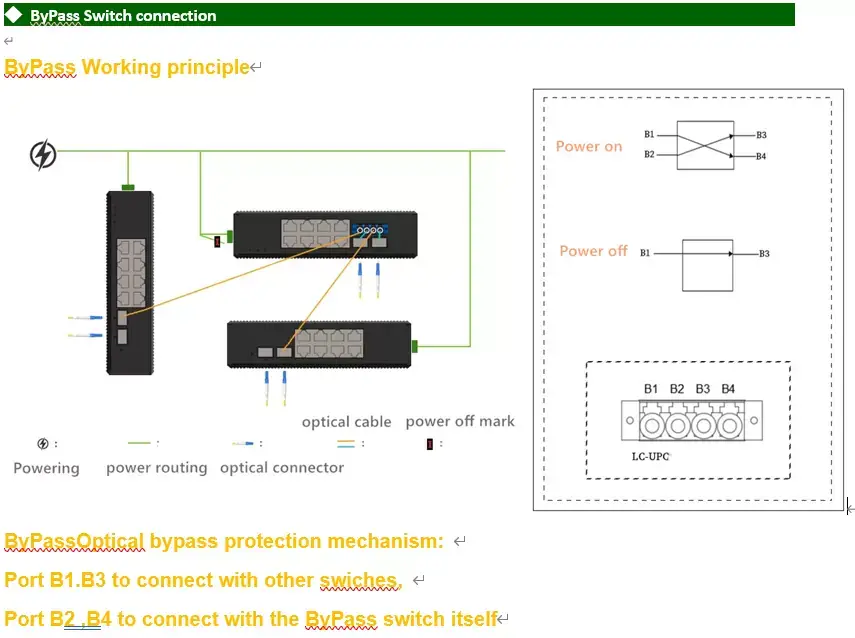

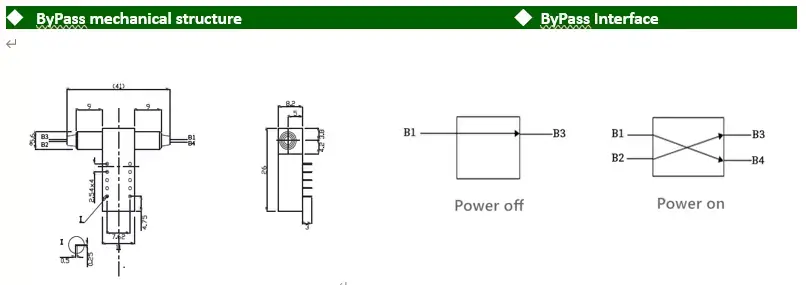

Parameters of Bypass module

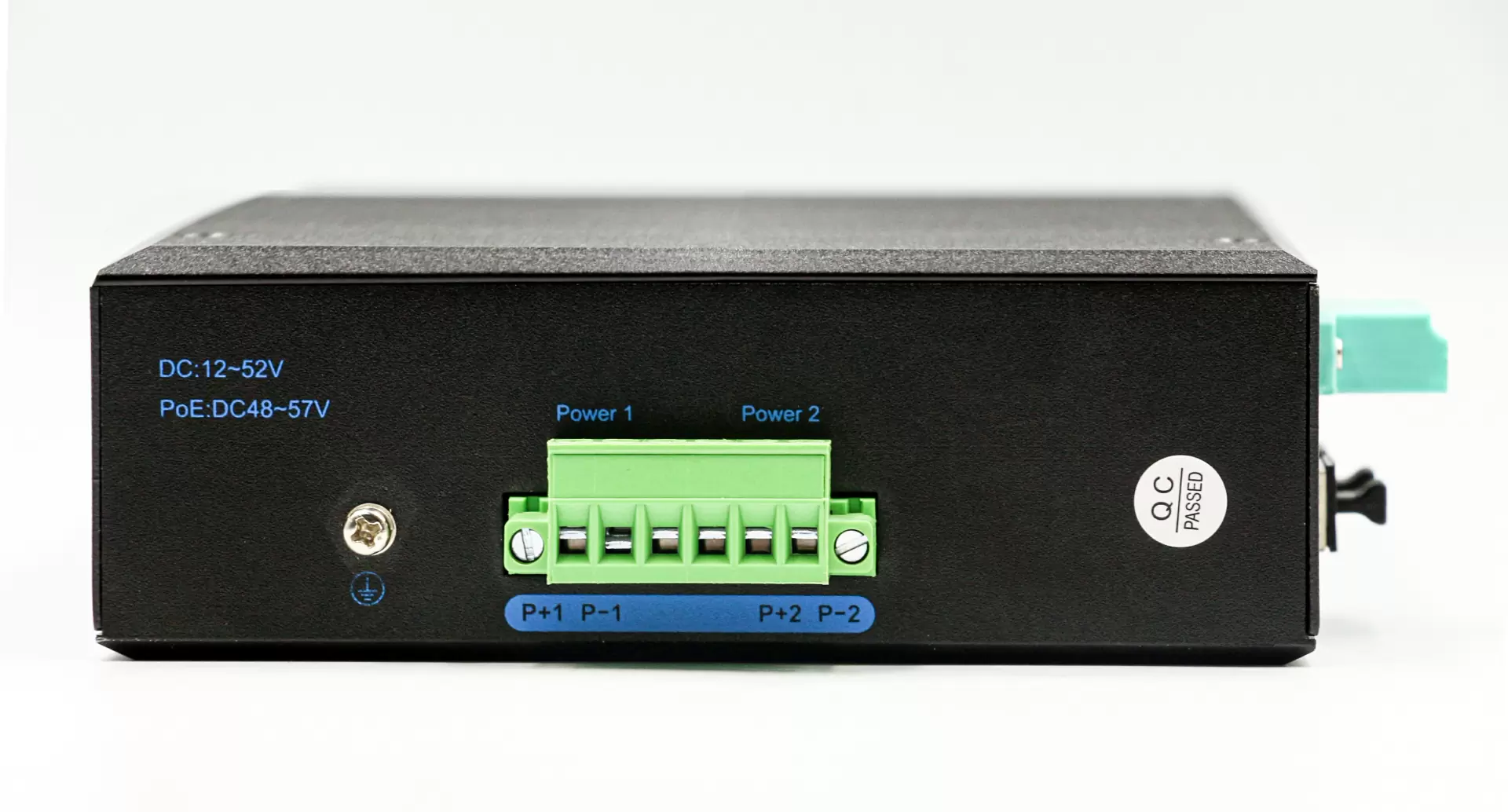

-         Power interface: standard industrial terminal

-         Polarity protection: Supported

-         Optical fiber interface: SC (Single-mode single-fiber)

-         Operating voltage: DC 12-52V

-         Operating temperature: -30 ~ +75 °C

-         Storage temperature: -40 °C to +80 °C

-         Usage: built-in

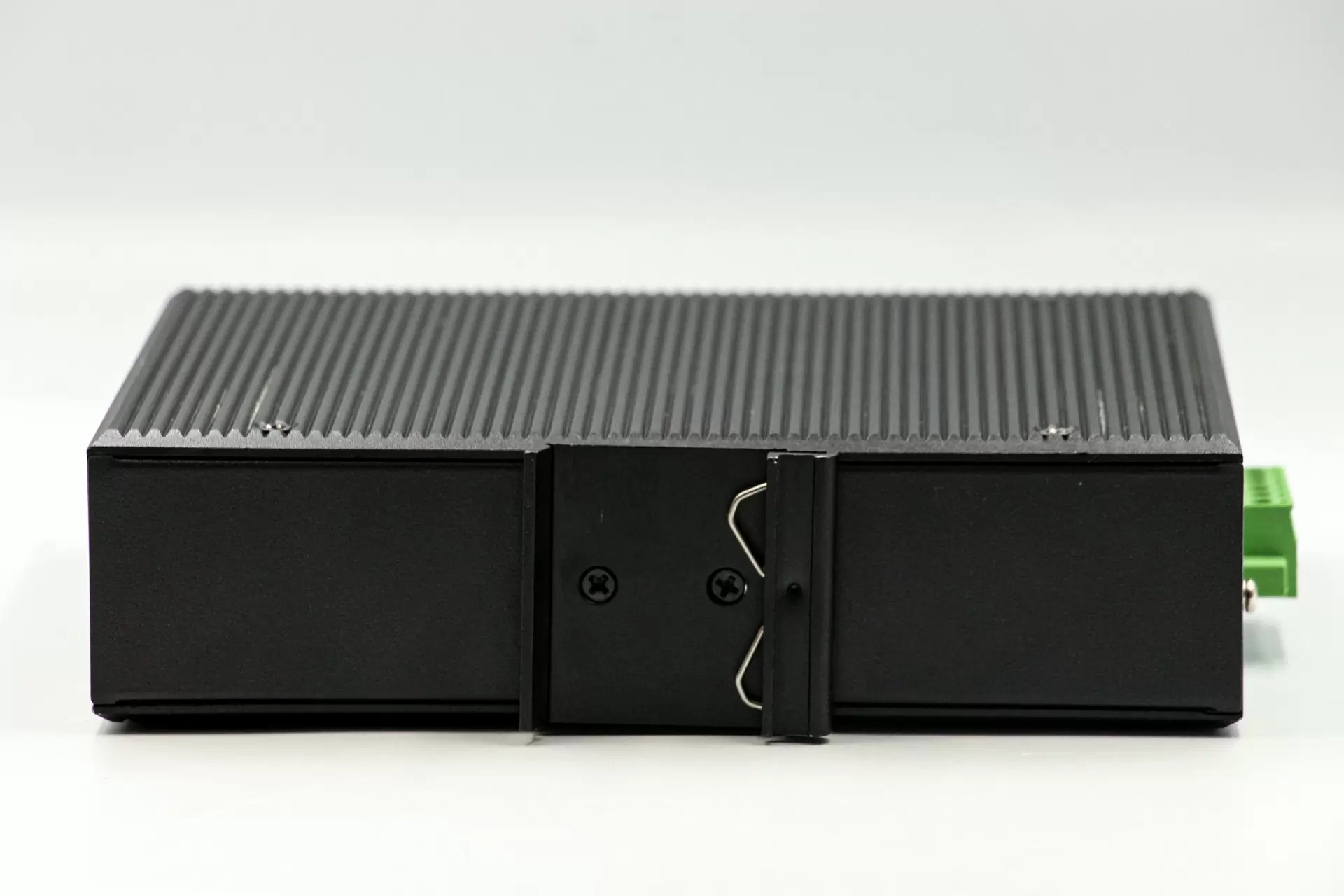

-         Installation: guide rail type

Product feature

•      Plug and play

•      Allows low insertion loss

•      Lent has a wide wavelength range

•      Virtual gateway Low channel crosstalk

•      Virtual Gateway IP40 Protection level

•      Lends itself to a fan-free system for natural cooling

•      12V to 52V DC, redundant power input

•      -30℃ to 75℃ operating temperature

•      IP40 aluminum housing

Application scenarios

•      Switching monitoring in an optical transmission system at a cost

•      Protecting and restoring optical networks at a cost

•      Optical fiber sensor and network test system, device installation and tuning
