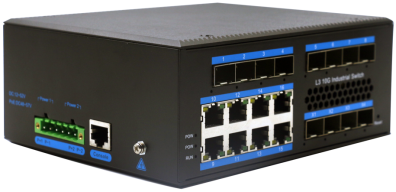

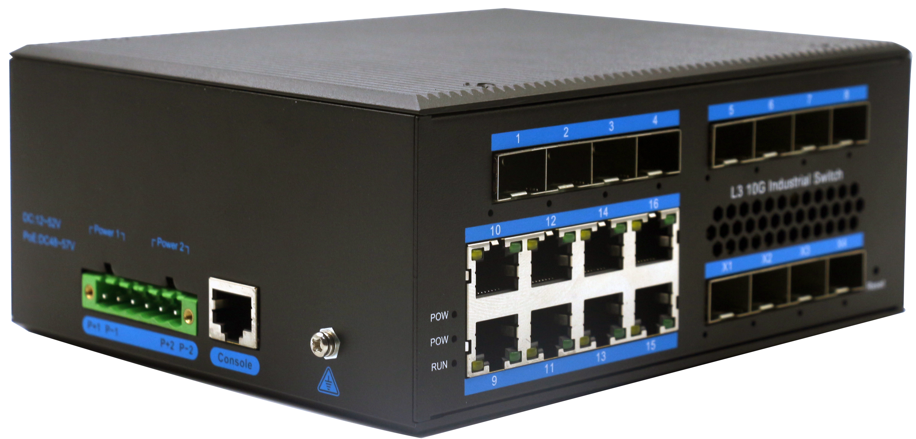

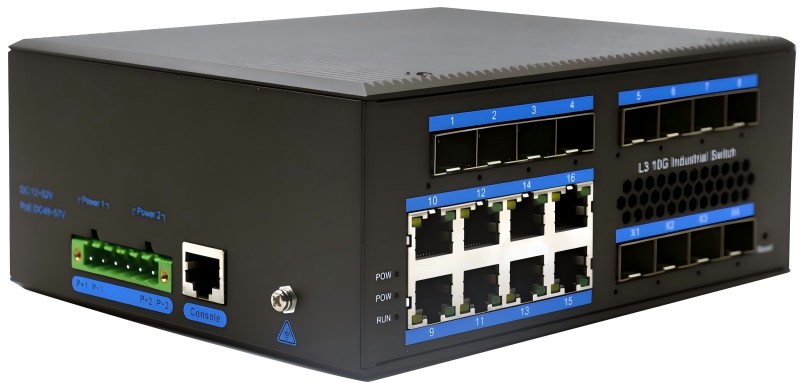

Din-rail design, Alliuminun L3 Managed Industrial Switch, 10/100/1000Mbps 8-Port RJ45+8-Port gigabit SFP + 4-Port 10G SFP+,DC12~52V -40℃-80℃ +8 port PoE ZX88GSPT4-M-SFP

‹

›

‹

  • Din-rail design, Alliuminun L3 Managed Industrial Switch, 10/100/1000Mbps 8-Port RJ45+8-Port gigabit SFP + 4-Port 10G SFP+,DC12~52V -40℃-80℃ +8 port PoE ZX88GSPT4-M-SFP

›


ZX88GSPT4-M-SFP

8 Port gigabit +8 Port 10G SFP L3 Managed Industrial PoE Switch







Din-rail Aluminum Industrial Switch

ZX88GSPT4-M-SFP  switch is a high performance 8 Port gigabit (PoE)+ 8 Port gigabit SFP+10G SFP+ L3 core switch. It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design, which supports up to 4 Port 10G SFP+, and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6 hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high capacity exchange capacity. ZX88GSPT4-M-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The din-rail characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.





Strong processing ability

ZX88GSPT4-M-SFP  switch is based on the powerful and stable

processing power of VCore-III MIPS-based CPU

ZX88GSPT4-M-SFP  provides up to 1.2Tbps of switching capacity

port full speed filtering and forwarding 406Mpps

To ensure that the trunk network of large traffic data without blocking

Forwarding.













Specifications:

Model No.

ZX88GSPT4-M-SFP

Interface

8-Port 10/100/1000Mbps RJ45

8-Port 1000Mbps SFP

4-Port 10G SFP+ (compatible with 1000M/2500M/10000M)

1-Port console

PoE

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-8  PoE budget: 240W max.

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect af/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)



Performance Specification

Bandwidth(switch capacity): 1.2Tbps

Packet Buffer Memory:32Mbit

Packet Forwarding Rate: 406Mpps

MAC Address Table: 32K

Installation

Din rail

Maximum Frame Size

10240bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 Aluminum housing



LED Indicator

POWER: Red

RUN: Green

Fiber: X1~X4(Green)

Ethernet: Green

Power Input

DC 12V -52V Redundant

Power Consumption

< 24watts (not included PoE)

Surge protection

±4KV



Network Protocols

IEEE 802.3ad, link aggregation protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE 802.3ae,10G

IEEE 802.3x, Full duplex Ethernet data link Laminar flow control

IEEE 802.3az,EEE high efficient ethernet

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)





Industry Standard

(EMC 4)

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

Dimensions (W x D x H)

166 x 137 x68.5mm

Weight

Product Weight: 1.2KGS

Packing Weight: 1.3KGS

Working Environment



Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)



Management features:



Interface

IEEE802.3X (Full-duplex), Port temperature protection setting

Port green Ethernet Energy-saving setting Broadcast storm control based

on port speed. The speed limit of the message flow in the access port.

The minimum particle size is 64Kbps.

PoE management

PoE scheduling for ON/OFF (timing supply)

Layer 3 Features

L3 network management, IPV4/IPV6 management L3 soft routing forwarding,

Static route, Default route @ 128 pcs, APR@1024pcs





VLAN

4K VLAN based on port, IEEE802.1q

VLAN based on the protocol

VLAN based on MAC

VLAN based on IP

Voice VLAN, QinQ configuration

Port configuration of Access, Trunk, Hybrid

Port Aggregation

LACP, Static aggregation

Max 14 aggregation groups and 16 ports per group.

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring

Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring. Multicast

Multicast

MLD Snooping v1/v2,Multicast VLAN Registration (MVR)

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port Mirroring

Bidirectional data mirroring based on port



QoS

SP（Strict Priorty）

WFQ (Weighted Fair Queuing)

WRR (Weighted Round Robin)

Random Early Detect (RED)

WeightedRandomEarlyDetection (WRED)

Head Of Line

Best-Effort Service

First come first served

802.1p

Cos/Tos，QOS

Differentiated Service



ACL

Port-based Issuing ACL,ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source,

Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range,

and VLAN, etc.





Security

Support IP ACL，MAC ACL，Vlan ACL,support ACL based on L3 L4

IP+MAC Port binding

Support IP Source Guard, RP Detection

Support IEEE 802.1x port verification, support Radius

DHCP

DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay



IP routing

Supports port-based input/output bandwidth management.

Supports static routes. IPV6

Supports the virtual route redundancy protocol VRRP.

Dynamic routes such as RIP, RIPng, OSPF, and OSPFv3 are supported.



System maintenance

Supports configuration file uploading and downloading. Upload the upgrade package.

Supports factory restore on WEB, Supports the system log function.

Support  Ping 、tracert、cable detection and other diagnostic functions.

Supports WEB management (HTTP and HTTPS).

Supports CLI management. Supports Telnet remote management.

Supports SSH 2.0. Supports SNMP network management.

Support RMON; Supports NTP clients. Support PTP（1588v2）
